ACLs

201

Managed Switches

Web Interface: Configure ACL Mirroring

1. Create an IP access control list with the name monitorHost on the switch.

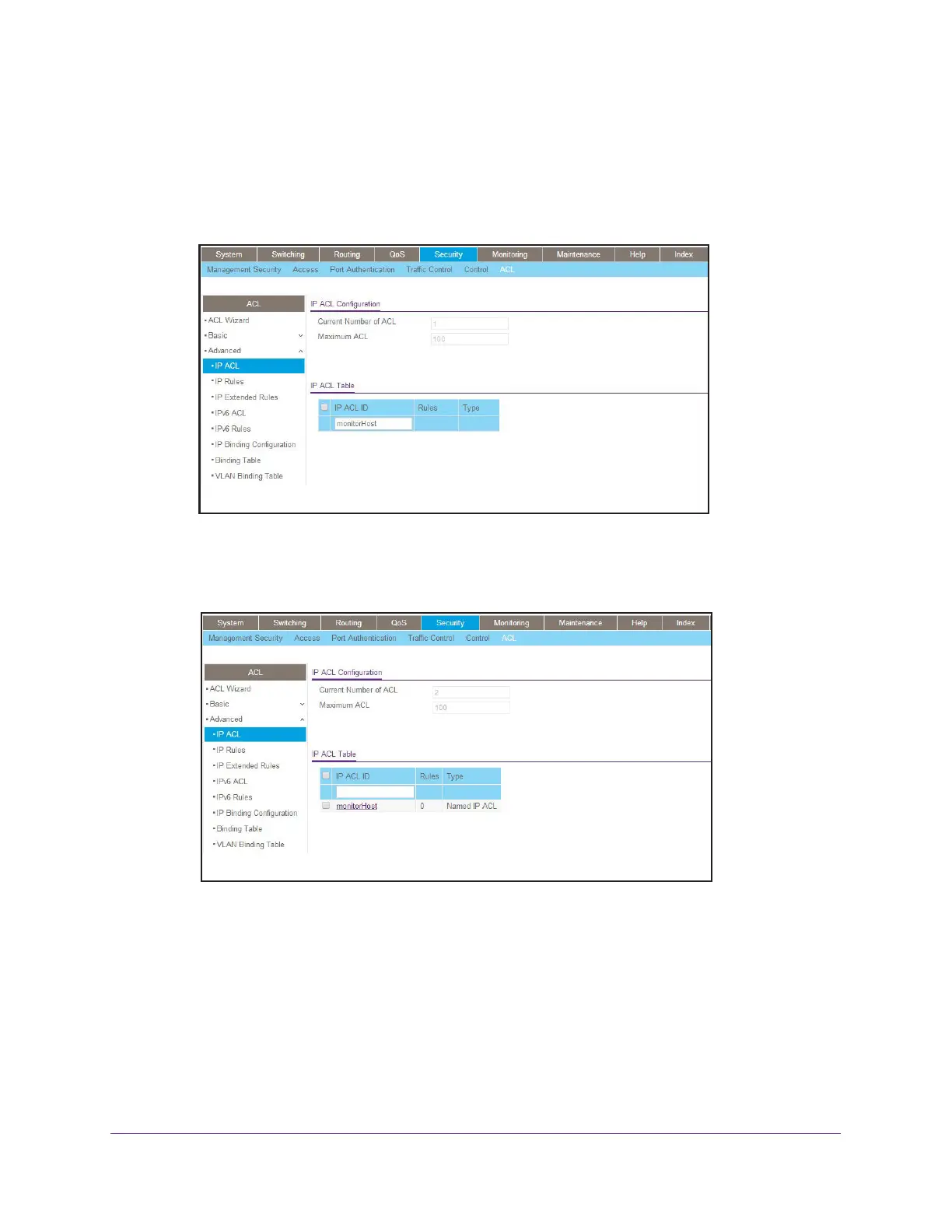

a. Select Security > ACL > Advanced > IP ACL.

A screen similar to the following displays.

b. In the IP ACL ID field, enter monitorHost.

c. Click Add to create ACL monitorHost.

A screen similar to the following displays.

2. Create a rule to match host 10.0.0.1 in the ACL monitorHost.

a. Select Security > ACL > Advanced > IP Extended Rules.
