Tunnels for IPv6
521
Managed Switches
2. Enable IPv6 forwarding and unicast routing on the switch.

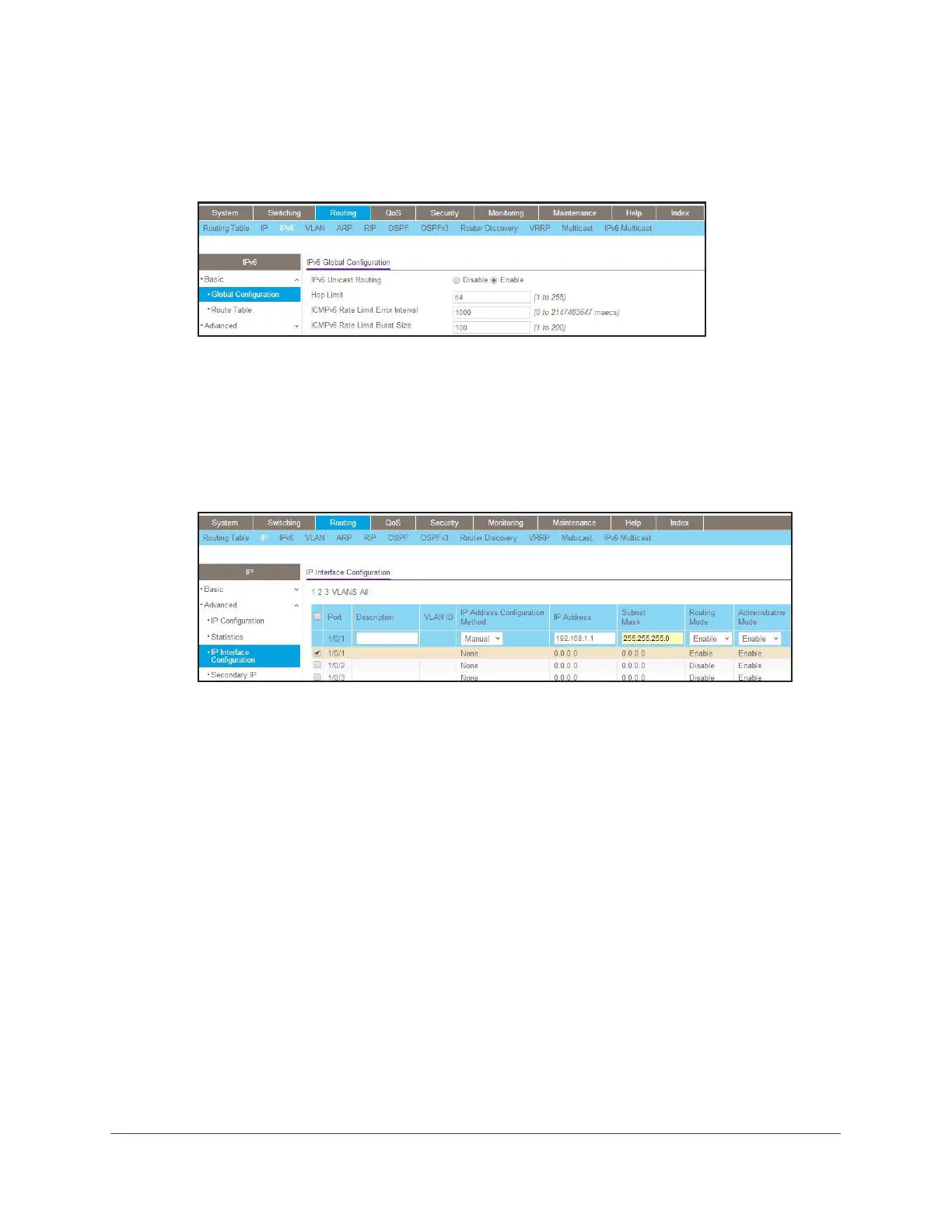

a. Select Routing > IPv6 > Basic> Global Configuration.
A screen similar to the following displays.
b. For IPv6 Unicast Routing, select the Enable radio button.
c. For IPv6 Forwarding, select the Enable radio button.
d. Click Apply.
3. Create a routing interface and assign an IP address to it.
a. Select Routing > IP > Advanced > IP Interface Configuration.
A screen similar to the following displays.
b. Under IP Interface Configuration, scroll down and select the Port 1/0/1 check box.
Now 1/0/1 appears in the Interface field at the top.
• In the IP Address field, enter 192.168.1.1.
• In the Subnet Mask field, enter 255.255.255.0.
• In the Routing Mode field, select Enable.
c. Click Apply.
4. Create a 6-in-4 tunnel interface.
a. Select Routing > IPv6 > Advanced > Tunnel Configuration.
