Nordson Spectrum II Series User Manual

Operation 4-29
2. To create a new program, select File > New from the menu bar or click on the Program
Wizard
icon on the toolbar.
 This action clears the work area, loads the default fluid and heater files, and opens the
Create Workpiece Window (Figure 4-25).
 You will be prompted to define the number of fiducials, skip marks, and whether or not
to use Fid 1 as the workpiece origin.

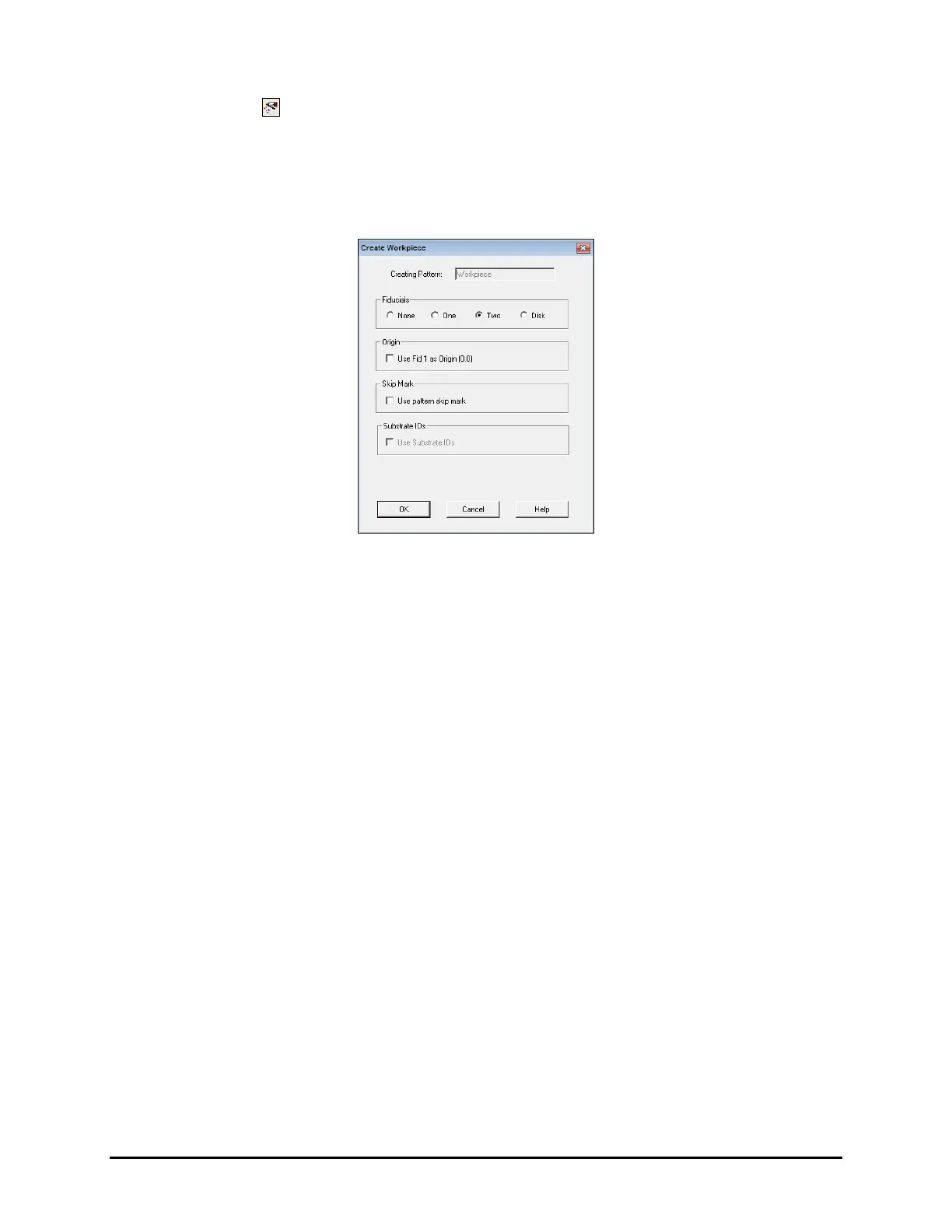

Figure 4-25 Create Workpiece
3. Enter the desired information and click OK.
 If you selected
Learn Workpiece Angle first, you will be prompted to define the
workpiece orientation in the X- or Y-axis when you begin programming. See 4.10.1
Workpiece Alignment.
 You will then be prompted to teach the workpiece origin. If you selected
Use Fid 1 as
Origin
, you will be prompted to define fiducials.
4.10.5 Teaching Workpiece Origin
Workpiece origin is a user-defined origin point on the workpiece. Fluidmove uses the workpiece origin to
determine pattern placement locations.
To teach workpiece origin:
1. Use the position controls to move the camera crosshairs to the workpiece origin and click
on
Teach.
2. Click on
Done to close the window.
 If your program will contain fiducials, you will be prompted to teach fiducials,
