Nordson Spectrum II Series User Manual

Introduction 1-25

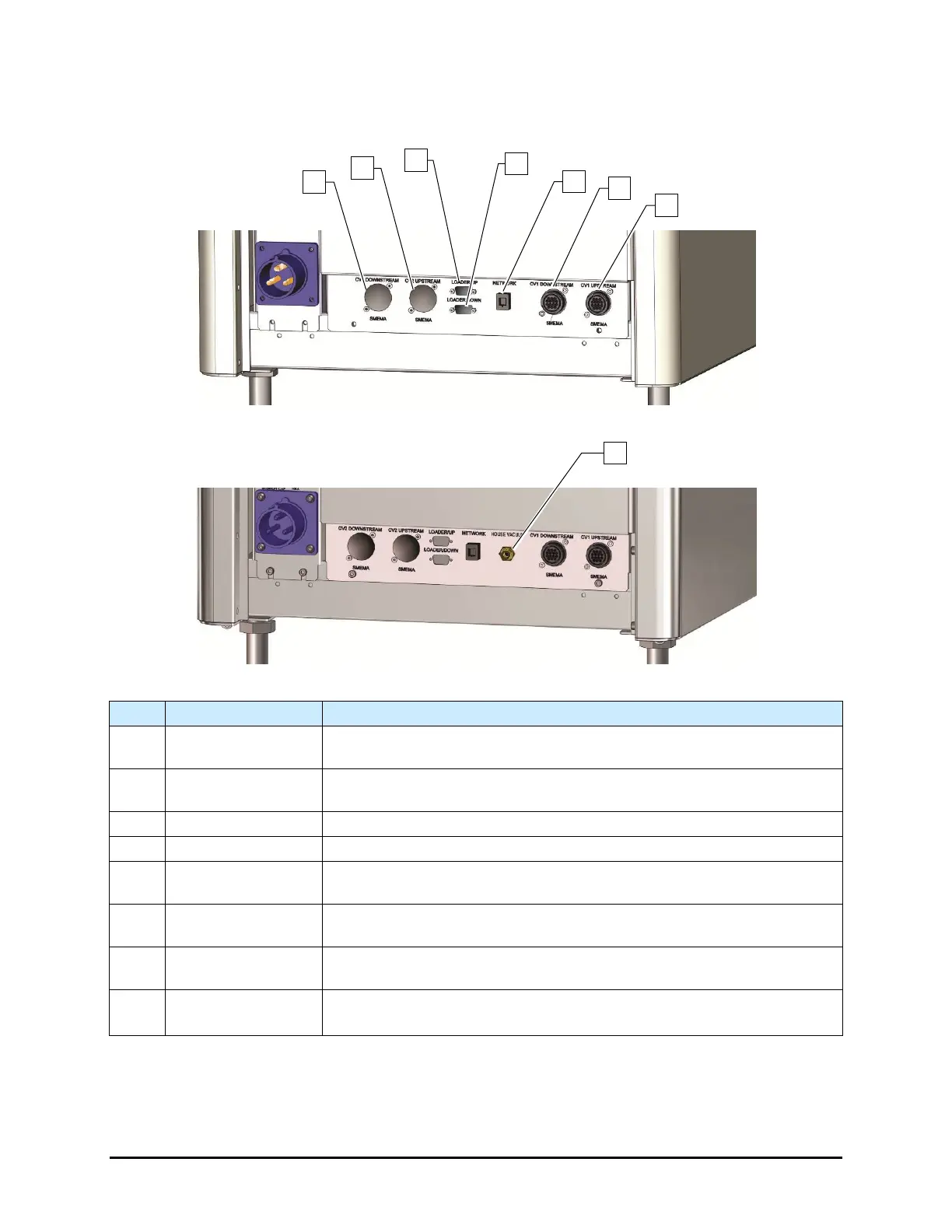

1.11.10 Rear Panel Connections
S2-900/S2-900P
S2-9XXC
Item
Name
Description
1 CV2 Downstream
Allows for SMEMA communication between Conveyor 2 and a
downstream machine such as an unloader.
2 CV2 Upstream
Allows for SMEMA communication between Conveyor 2 and an upstream
machine such as a loader.
3
Loader/Up
Not used on this machine.
4
Loader/Down
Not used on this machine.
5 Network
Allows the dispensing system to communicate with a host computer on a
local area network. Necessary for SECS/GEM functionality.
6 CV1 Downstream
Allows for SMEMA communication between Conveyor 1 and a
downstream machine such as an unloader.
7 CV1 Upstream
Allows for SMEMA communication between Conveyor 1 and an upstream
machine such as a loader.
8
House Vacuum
(S2-9XXC only)
The house vacuum connection is required for valve purge and to hold
workpieces to the tooling on the cleanroom system.
Figure 1-11 Rear Panel Connections
 NOTE CV2 connectors are only present on dual conveyor dispensing systems.
8
1
2
3
4
5
6
7
