Nordson Spectrum II Series User Manual

1-24 Introduction
1.11.9 Rear Cabinet
Item
Name
Description
1
Conveyor/Heater
Module
(systems with heat)
The Conveyor/Heater Module receives power from the Power Manager
and supplies AC power to the substrate heat
ers in the dispensing area.
It also controls all conveyor functions (motors, sensors, pneumatics,
etc.). If your system is equipped with dual conveyors, there will be two
Conveyor/Heater Modules. Note: if the system does not have heat, it
will have a Conveyor Controller instead of a Conveyor/Heater Module.
2
Power Manager
(30A shown)
The Power Manager is located inside the rear cabinet. It houses the
Main Circuit Breaker and the Main Power Inlet. It also contains the
EMO circuitry. The EMO buttons, the green ON (I) button, and the
black
OFF
(
0
) button are directly connected to the Power Manager.

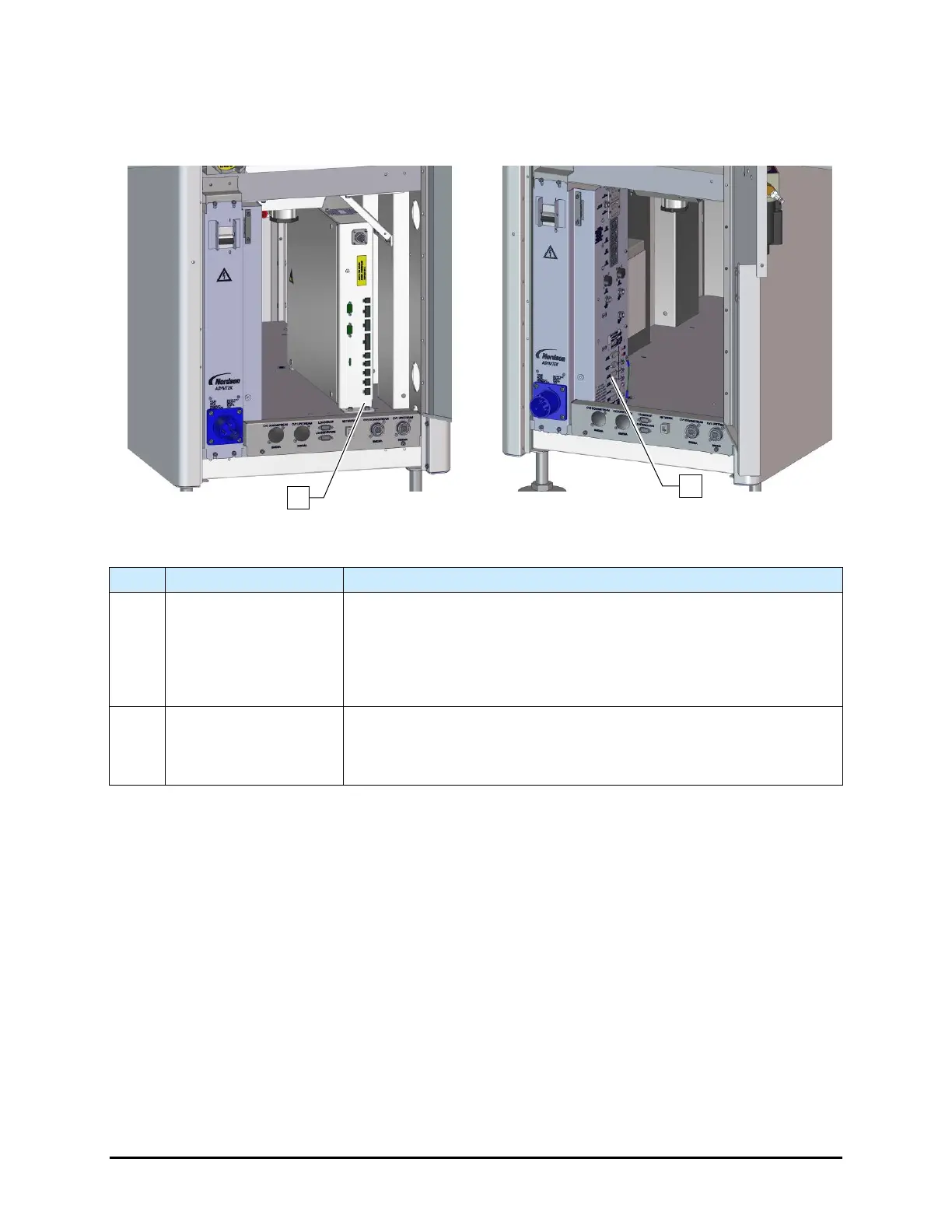

Figure 1-10 Rear Cabinet
2
1
