Nordson Spectrum II Series User Manual

1-16 Introduction
1.11.3 Service Station
Item
Name
Description
1 Dispense Tile
The Dispense Tile is a ceramic tile dispensed upon during system
offset routines.
2 Tactile Needle Sensor
The Tactile Needle Sensor measures the offset between the
needle/nozzle and the height sensor.
3 Purge Station
The Purge Station consists of a small reservoir that contains a
disposable plastic cup and is attached to a vacuum generator. Air
flowing through the purge boot into the cup removes excess fluid on
the dispensing valve needle/nozzle.
4 Scale See 1.11.4 Scale.

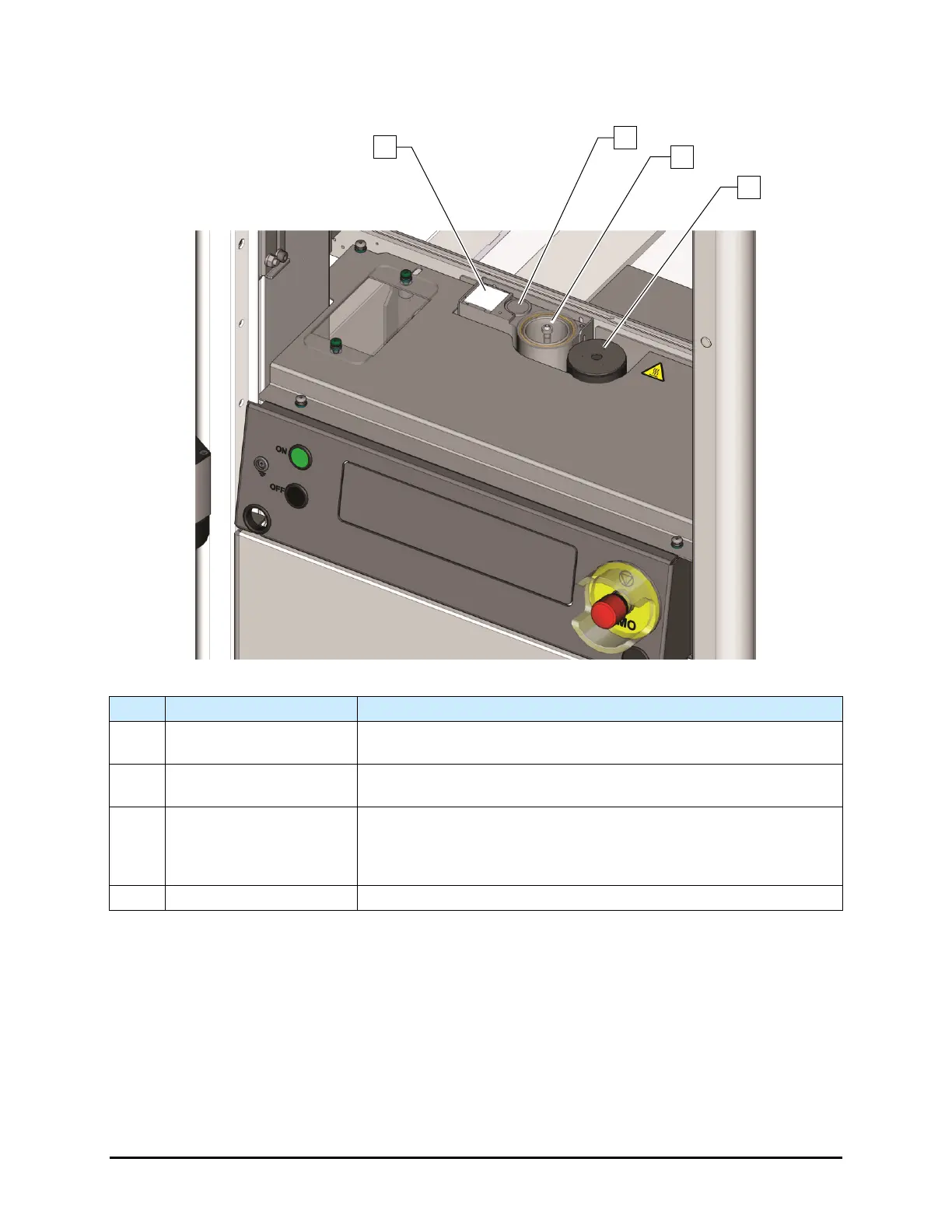

Figure 1-4 Service Station
1
2
3
4
