Installation 3-5

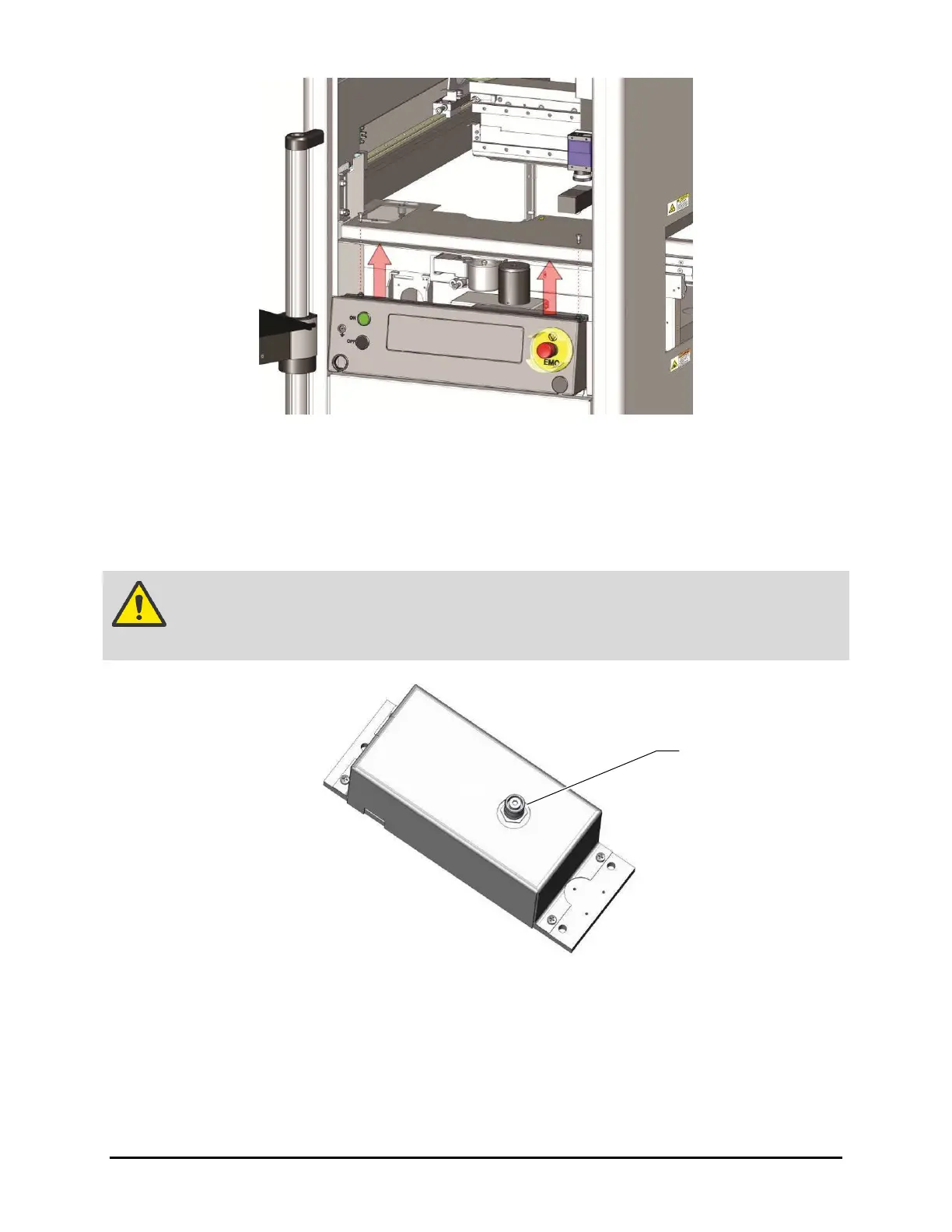

Figure 3-3 Removing the Front Cover
8. If the system is equipped with a scale, loosen the strap covering the scale and remove the
warning tag from the scale unit.
NOTE Do not remove the strap. The strap may be needed when moving or shipping
machine.
CAUTION! The scale stem is extremely sensitive. Be careful not to hit or apply pressure to
the scale stem (Figure 3-4).
Figure 3-4 Scale Stem
9. Replace the scale cover and reinstall the two mounting screws.
 NOTE It is not necessary to level the scale. The scale is leveled to the dispense plane at the
factory and does not need to be leveled again. However, it does need to be recalibrated
after the machine installation is complete. See 5.8 Calibrating the Scale.
