Nordson Spectrum II Series User Manual

Calibration and Adjustment 5-21
5.14 Calibrating the Heaters
To ensure that the workpiece is heated to the proper temperature, the heater must be calibrated. The
difference between the programmed (setpoint) temperature and the actual temperature of the heater
tooling must be determined and entered into the software.
 NOTE Perform this procedure on each of the conveyor heater channels/stations.
5.14.1 Verifying Heater Calibration
To verify heater calibration:
1. Power on the system and start Fluidmove.
2. In the Fluidmove Main Window, click on
Run a Program .
 The Production Window opens (Figure 5-23).

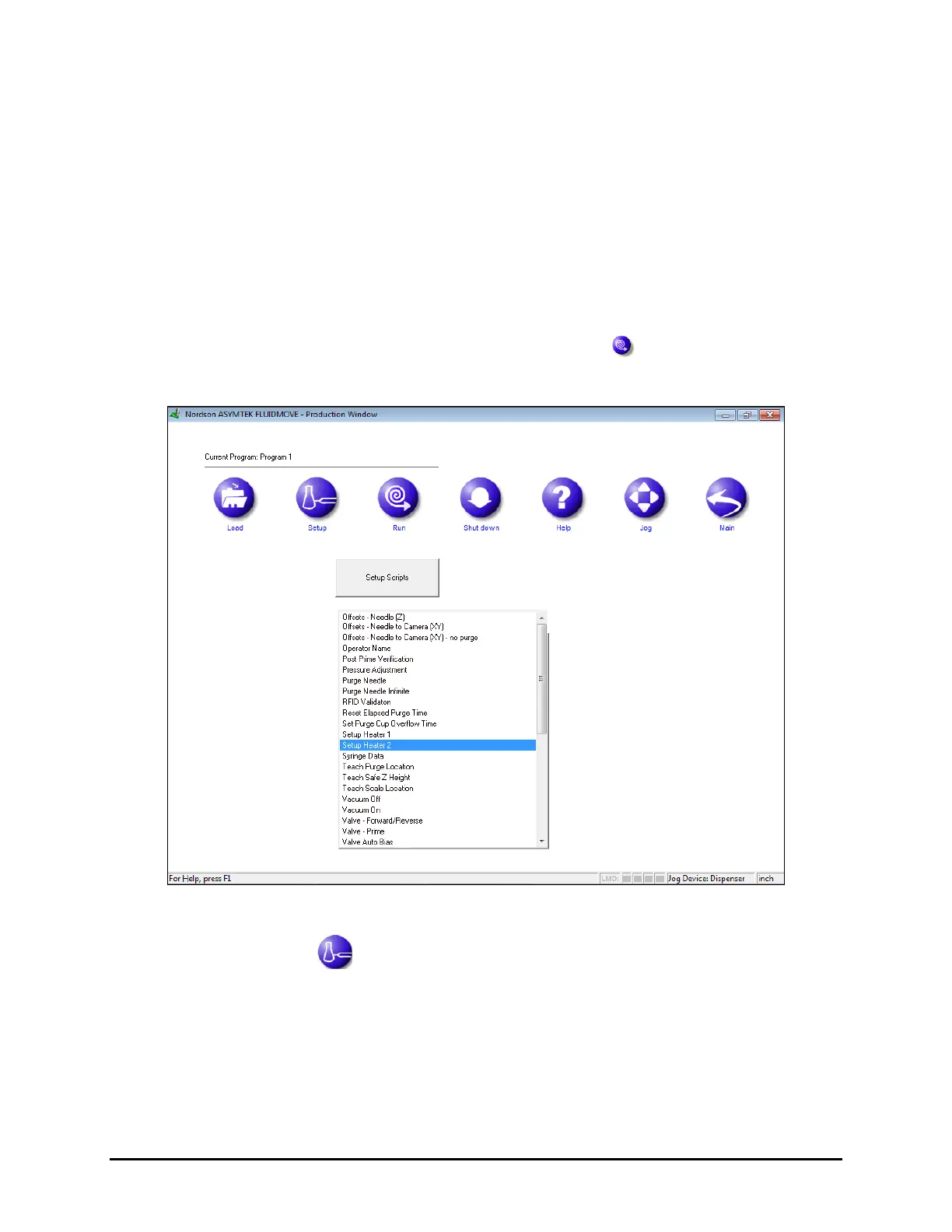

Figure 5-23 Production Window
3. Click on Setup .
 The list box opens.
4. In the list box, double-click the heater to be calibrated. Generally, Heater 1 is the needle
heater and Heater 2 is the substrate heater.
 The Heater Control Window opens (Figure 5-24).
