5-2 Calibration and Adjustment
5.5 Focusing the Camera
 NOTE This procedure assumes the dispensing system has been powered on, Fluidmove is
running, and a representative substrate is available to teach the focal plane.
Tools and Materials Needed:
• 3 mm hex key
To focus the camera (Figure 5-1):
1. In the Fluidmove Programming Window, click the
Load a Board icon.
 The conveyor will transport the substrate to the dispense station and the lift mechanism
will lift it off the conveyor belt. This establishes the focal plane.
2. In the Fluidmove Main Window, click on
Jog.
 The Jog Window opens. See 4.7 Jog Window.
3. Click on
Video.
 The Video Window opens (Figure 4-15).
4. Position the camera over a fiducial or an easily recognized feature on the substrate.
5. Loosen the locking ring on the camera lens (Figure 5-1).
6. Turn the middle section of the camera lens, clockwise or counterclockwise, until the middle
of the range of travel is reached. This will allow for fine focus after the camera is adjusted
for rough focus. (Figure 5-1).
7. Tighten the locking ring (Figure 5-1).
Item Description
1 Locking Ring
2 Middle Section

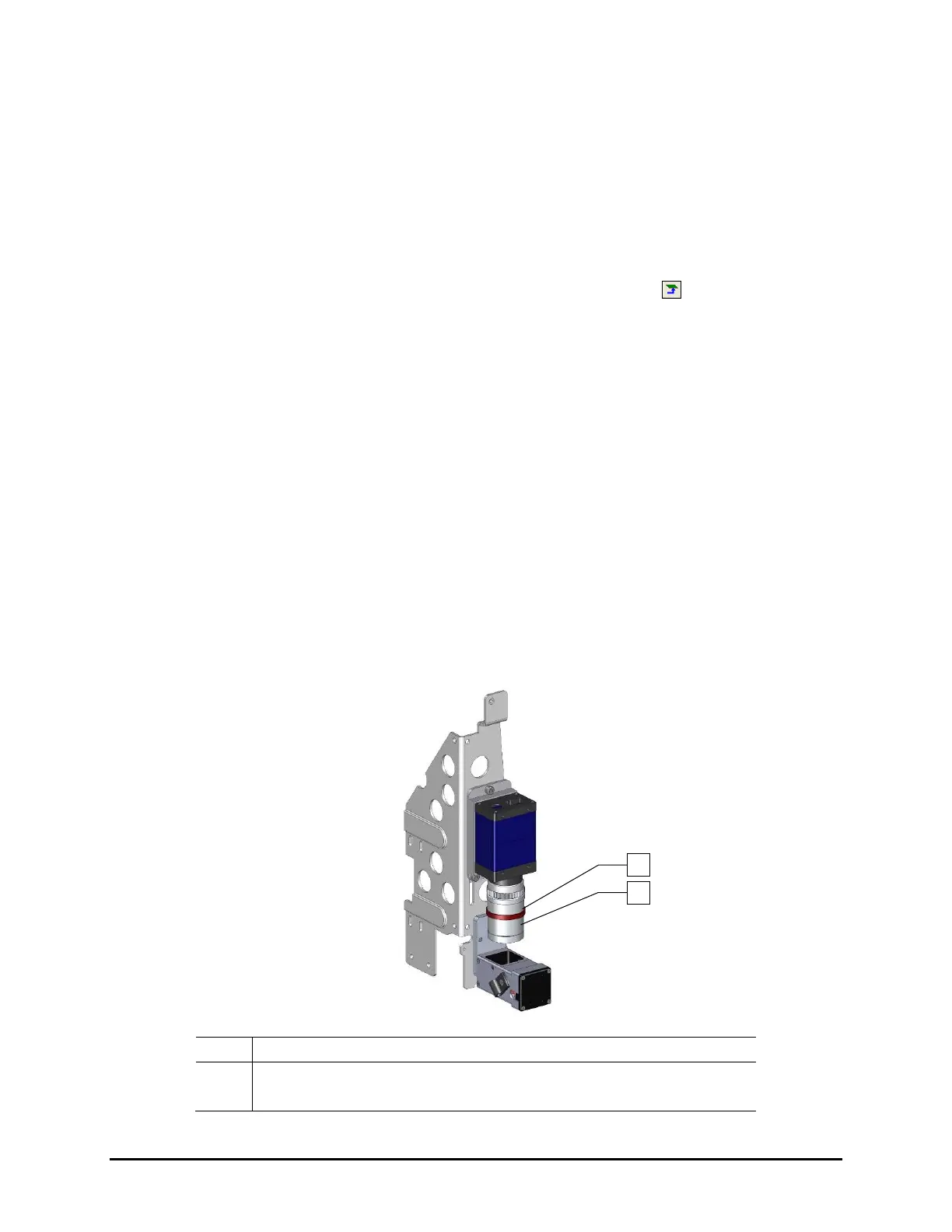

Figure 5-1 Focusing the Camera
