Calibration and Adjustment 5-3
8. For rough focus, perform the following steps:
a. Hold the camera and use a 3 mm hex key to loosen the three (3) screws securing the
camera to the bracket (Figure 5-2).
b. Slowly move the camera up and down in the bracket (Figure 5-2).
c. When a sharp image is obtained in the Video Window, hold the camera and tighten the
three (3) screws securing the camera to the bracket using a 3 mm hex key (Figure 5-2).
Item
Description
1 Bracket
2
Screw (Third screw is located opposite of lower left
screw)
3
Camera

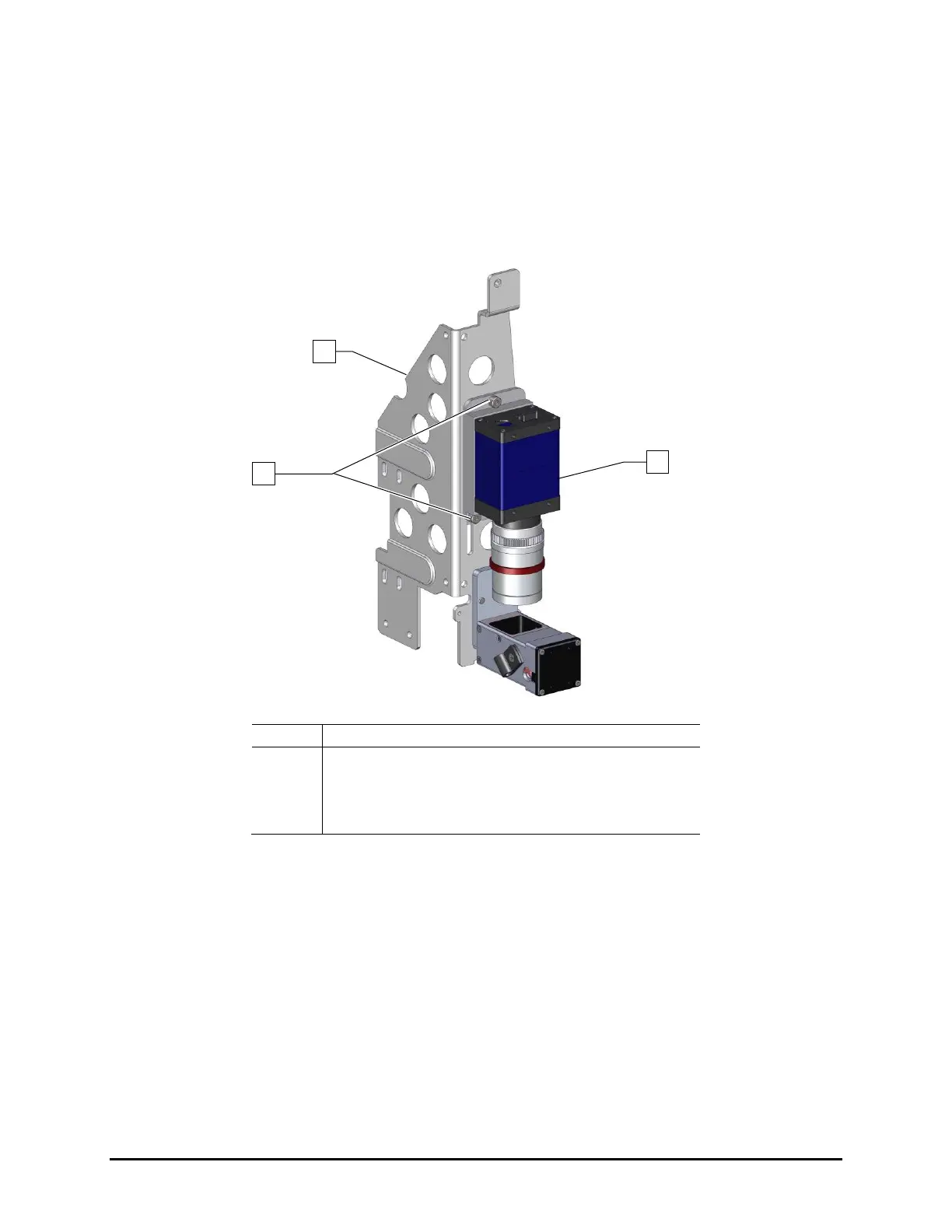

Figure 5-2 Rough Focus
1
3
x3
2
