Nordson Spectrum II Series User Manual

Introduction 1-23

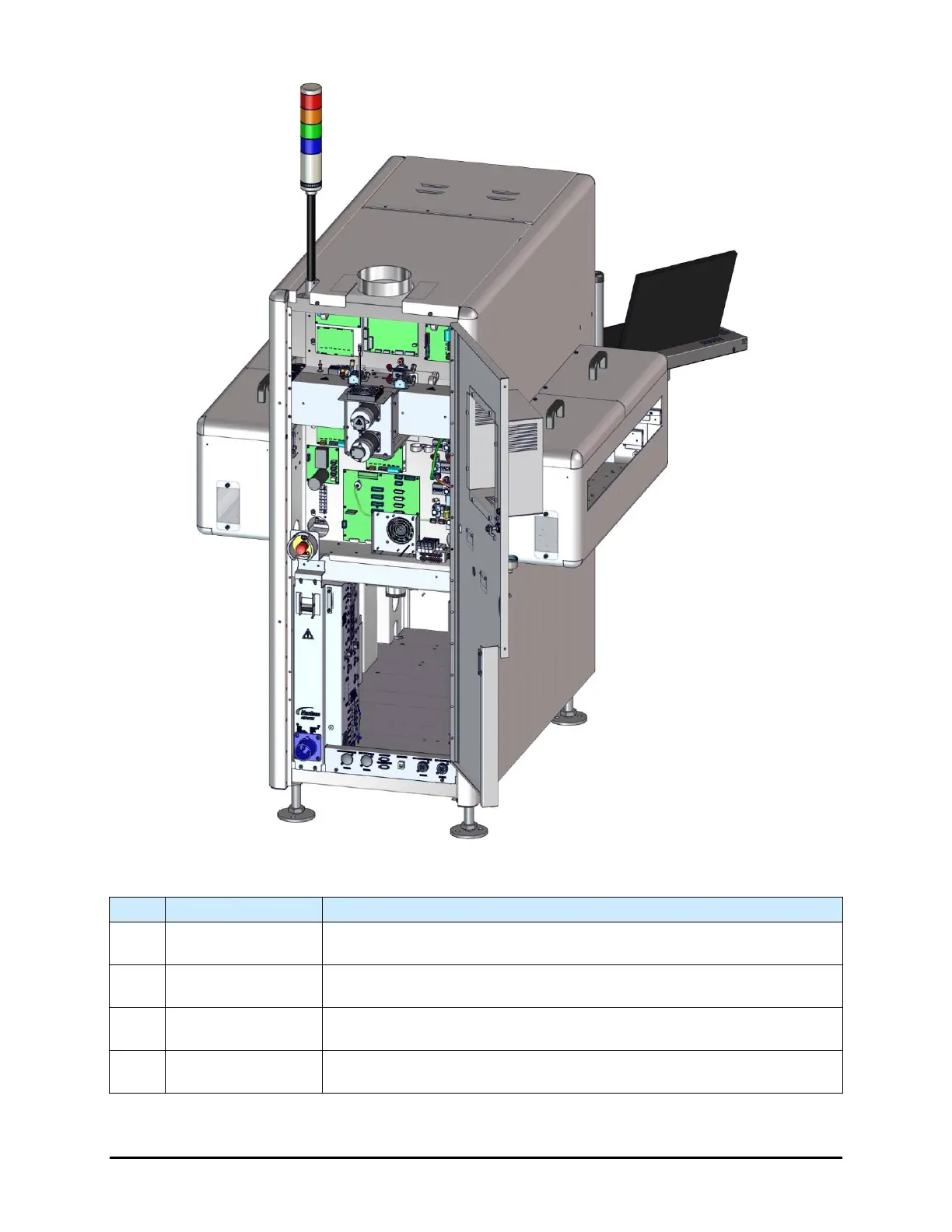

Figure 1-9B Rear View Open (S2-900P with Pre-Queue and Post-Queue Stations)
Item
Name
Description
1 Upper E-Pan
The Upper E-Pan houses the Dispense Head Controller, Z-Axis Servo
Amp, and Applicator Pneumatics.
2 Lower E-Pan
The Lower E-Pan houses the Main PWA, X-Y Axis Servo Amps, Main Air
Pneumatic Valves, and Conveyor Pneumatic Valves.
3 Rear Cabinet
The Rear Cabinet houses the Power Manager and the Conveyor/Heater
Module(s). See 1.11.9 Rear Cabinet.
4
Rear Panel
Connections
See 1.11.10 Rear Panel Connections.
Figure 1-9 Rear View Open
