Nordson Spectrum II Series - Safe Z Height

Operation 4-25
4.9.1 Safe Z Height
Safe Z Height is determined by choosing a height that ensures the needle, height sensor, or any part of the
dispensing head does not collide with any obstacles while traveling around the dispensing area. Safe
Z Height is the height below which the tip of dispensing head cannot go when moving from one set of
coordinates to another during operation.
 NOTE This value is taught within the Valve Offsets procedure, but can be taught independently
if needed.
To set the Safe Z Height:
1. In the Fluidmove Main Window, click on
Run a Program.
 The Production Window opens (Figure 4-20).
2. In the Production Window, click on the
Setup button.
3. Click on
Teach Safe Z Height (Figure 4-20).
 The Teach Safe Z Height Window (Figure 4-21) opens.

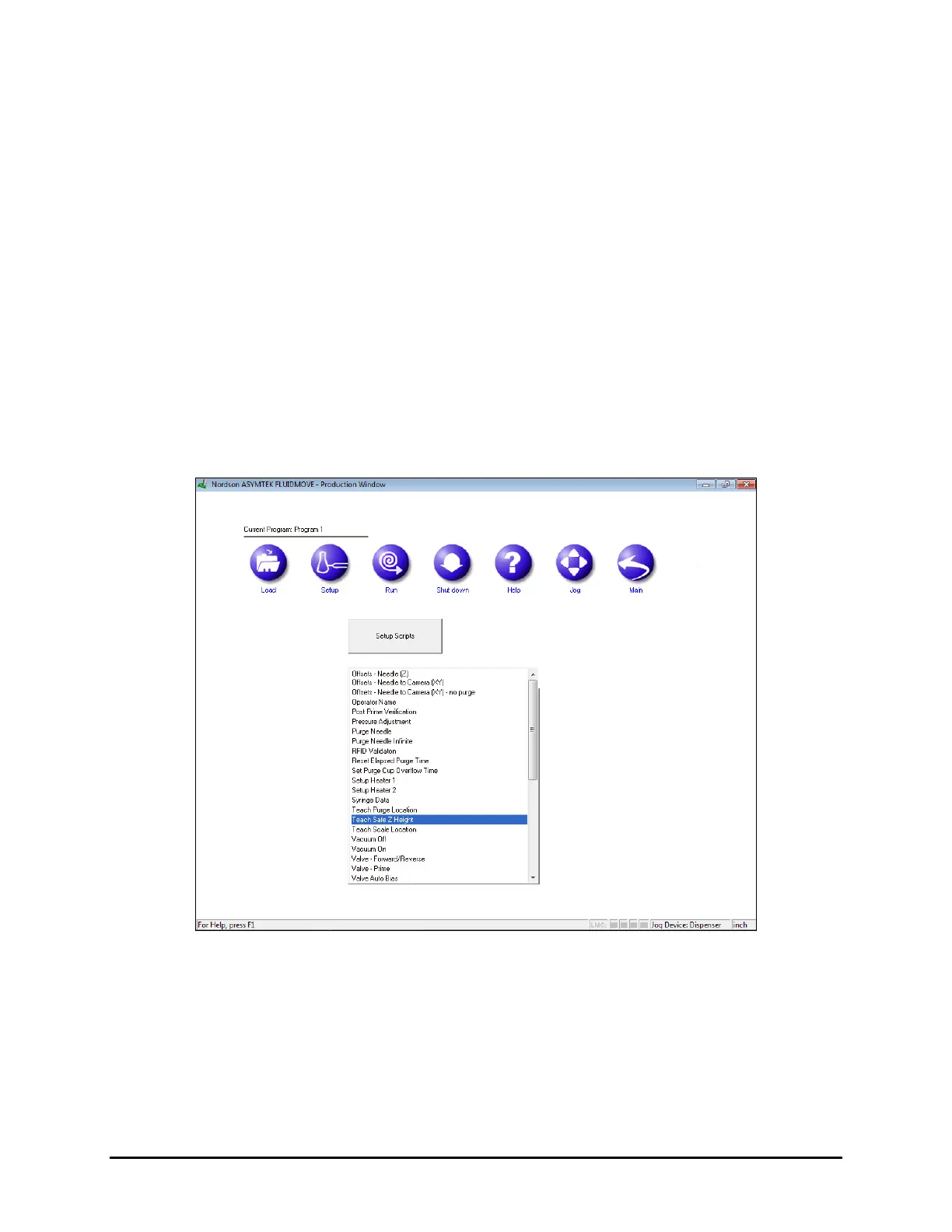

Figure 4-20 Production Window - Teaching Safe Z Height
