4-26 Operation

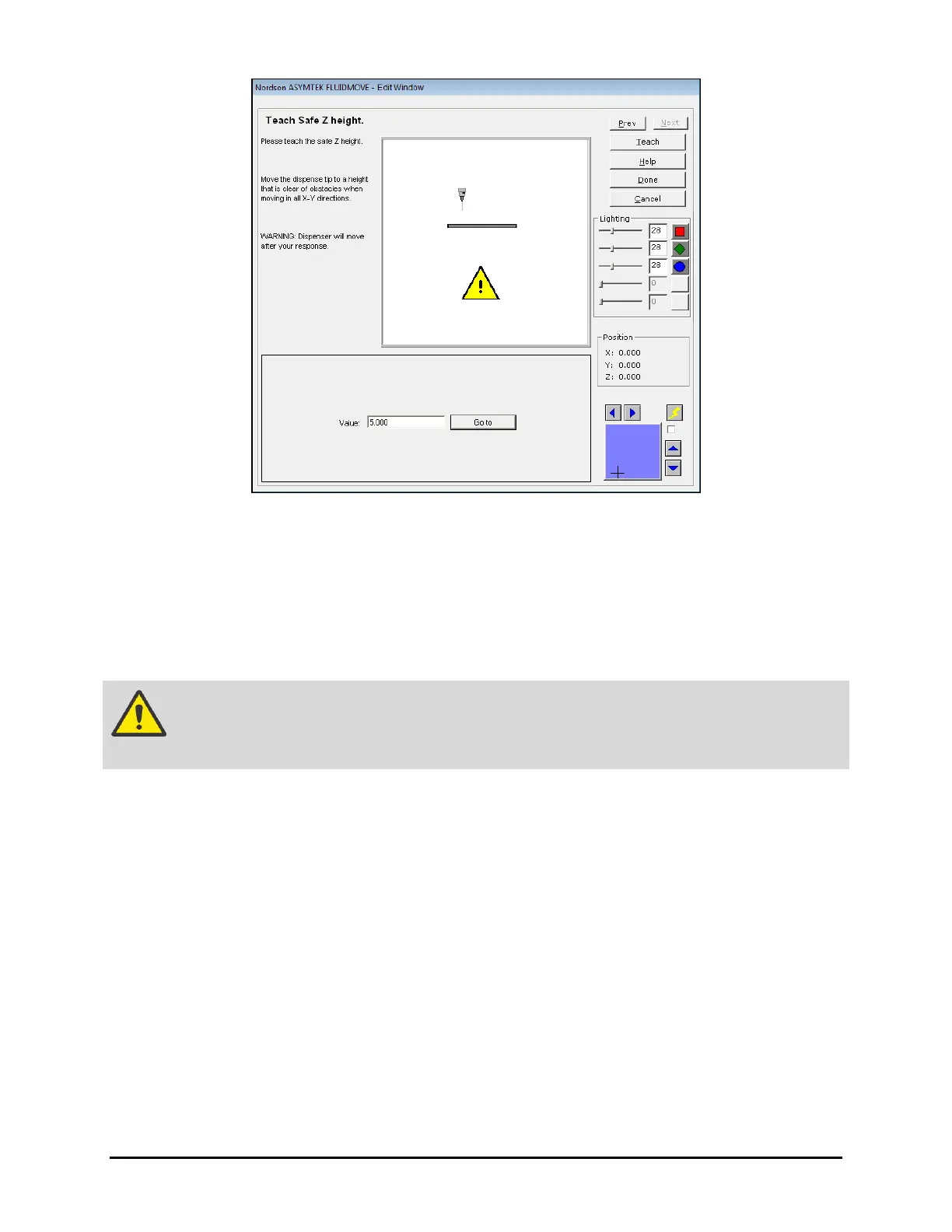

Figure 4-21 Teaching Safe Z Height
4. Move the dispensing head over a workpiece fiducial.
5. Raise or lower the dispensing head until it reaches a Safe Z Height.
6. Click on
Teach.
 The Safe Z Height value will be recorded in the value textbox.
7. Click on
Done.
WARNING! Safe Z Height should never be taught lower than the tallest component on the
unit to be dispensed on.
