5-28 Calibration and Adjustment
5.15.2 CpH Cool Down
The Cool Down feature will allow the operator to select which stations should be cooled down before
working on or removing a heater module. The heater will be shut off and maximum air flow will be
applied for a given amount of time specified by the operator.
To cool down the heaters:
1. In the Fluidmove Main Window, click on
Run a Program.
 The Production Window opens.
2. Click on
Shutdown.
 The Cool Down button appears (Figure 5-32).

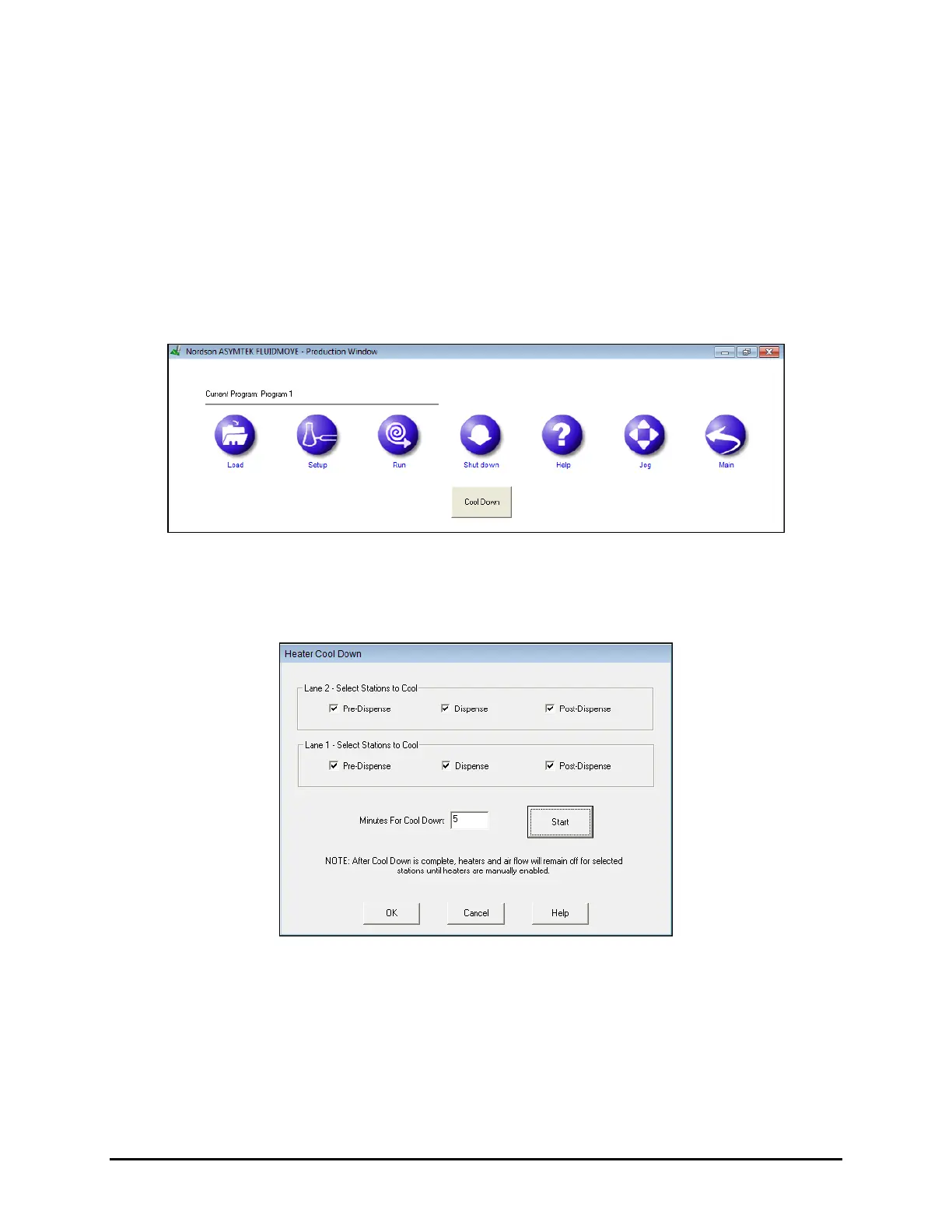

Figure 5-32 Fluidmove Main Window - Cool Down Button
3. Click on Cool Down.
 The Heater Cool Down Window opens (Figure 5-33).
Figure 5-33 Heater Cool Down Window
4. Select the desired stations and enter a cool down time.
5. Click
Start to begin the cooling process.
6. Click on
Cancel to stop the cooling process before the time expires.
