3-12 Installation
3.11 Anchoring the Dispensing System
To prevent movement that could cause injury to personnel and damage to the dispensing system and
facility, each dispensing system leveler (foot) should be anchored to the floor with two bolts
(Figure 3-12). The anchor joint (the point between each anchor bolt and the floor) must be able to
withstand at least 220 lbs (100 kg) of pullout force. For additional information, See 9.5 Stability Analysis.
Item
Description
1 Bolt
2 Leveler (Foot)

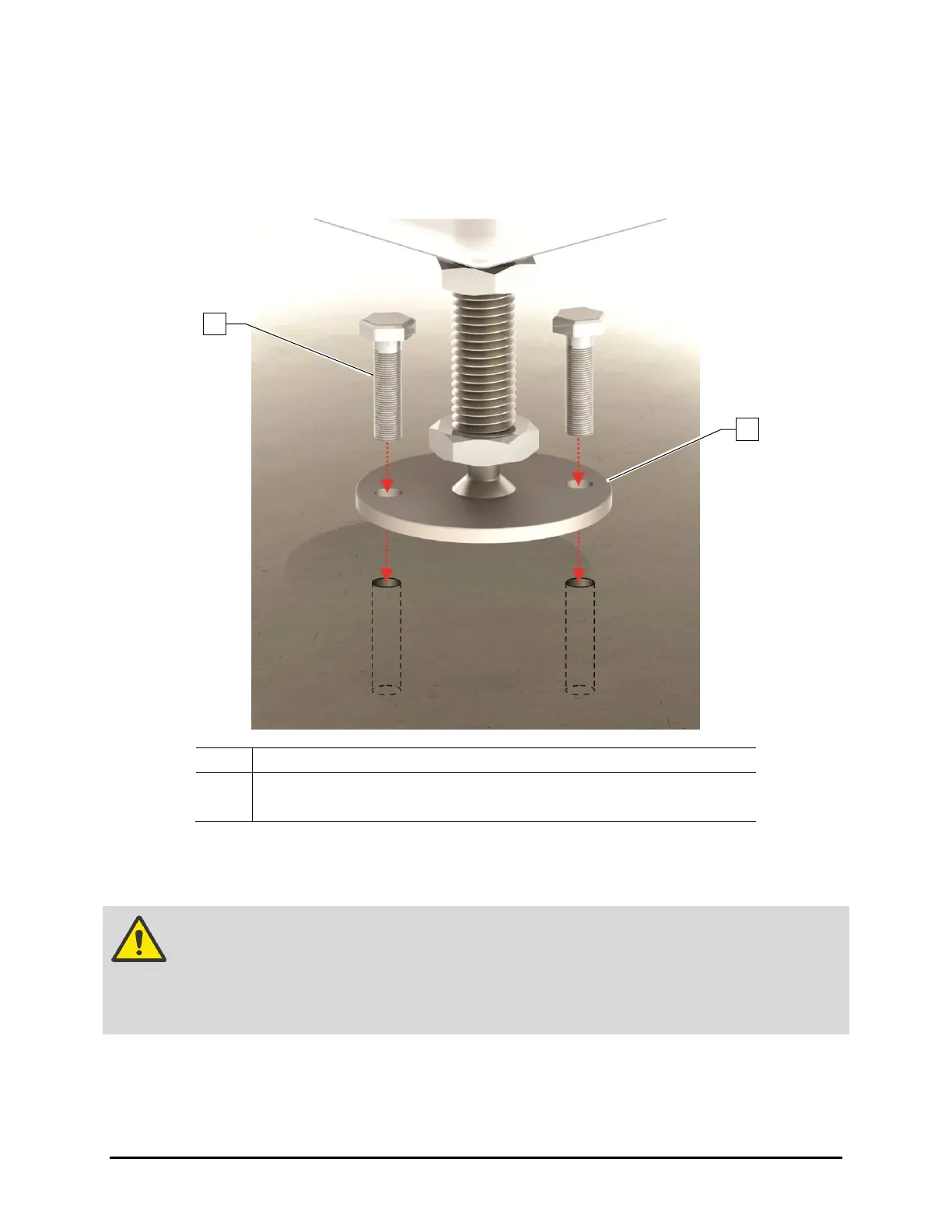

Figure 3-12 Anchoring the Dispensing System
 NOTE You may also use the shipping brackets to anchor the dispensing system.
WARNING! The S2-900 Series Dispensing System is designed to be used as an inline system.
When using the dispensing system for batch operations, make sure it is
configured with the optional Conveyor Closeout Kit (P/N 7214478) to prevent
personal injury and equipment/workpiece damage.
1
2
