Introduction 1-15
1.11.2 Dispensing Area
Item
Name
Description
1 Vision System
The compact, high resolution, black and white camera and lens are
part of the Vision System. They are mounted on the dispensing head
and are used to view work surfaces.
2
Pneumatic and Electrical
Connections
The bulkhead includes valve, low fluid sensor, and air pressure
connections.
3 Conveyor
The Conveyor transports the workpiece from an upstream system to
the dispensing station and then to a downstream system. All
Conveyors are SMEMA compatible and have adjustable rear rail
width. A Dual Lane Conveyor configuration that allows parallel
processing on two lanes for continuous dispensing is also available.
4 Service Station
The Service Station consists of the Dispense Tile, Tactile Needle
Sensor, Purge Station, and Scale. See Figure 1-4.
Dispensing Valve
(NOT SHOWN)
The Dispensing Valve controls or regulates the flow of material from
a pressurized reservoir, such as a syringe. Devices include valves
and jets.
Height Sensor
(NOT SHOWN)
The Height Sensor is a device that measures substrate height and
sends a signal to the system computer. The height information is
used to position the dispensing needle at an exact distance above
the workpiece surface.

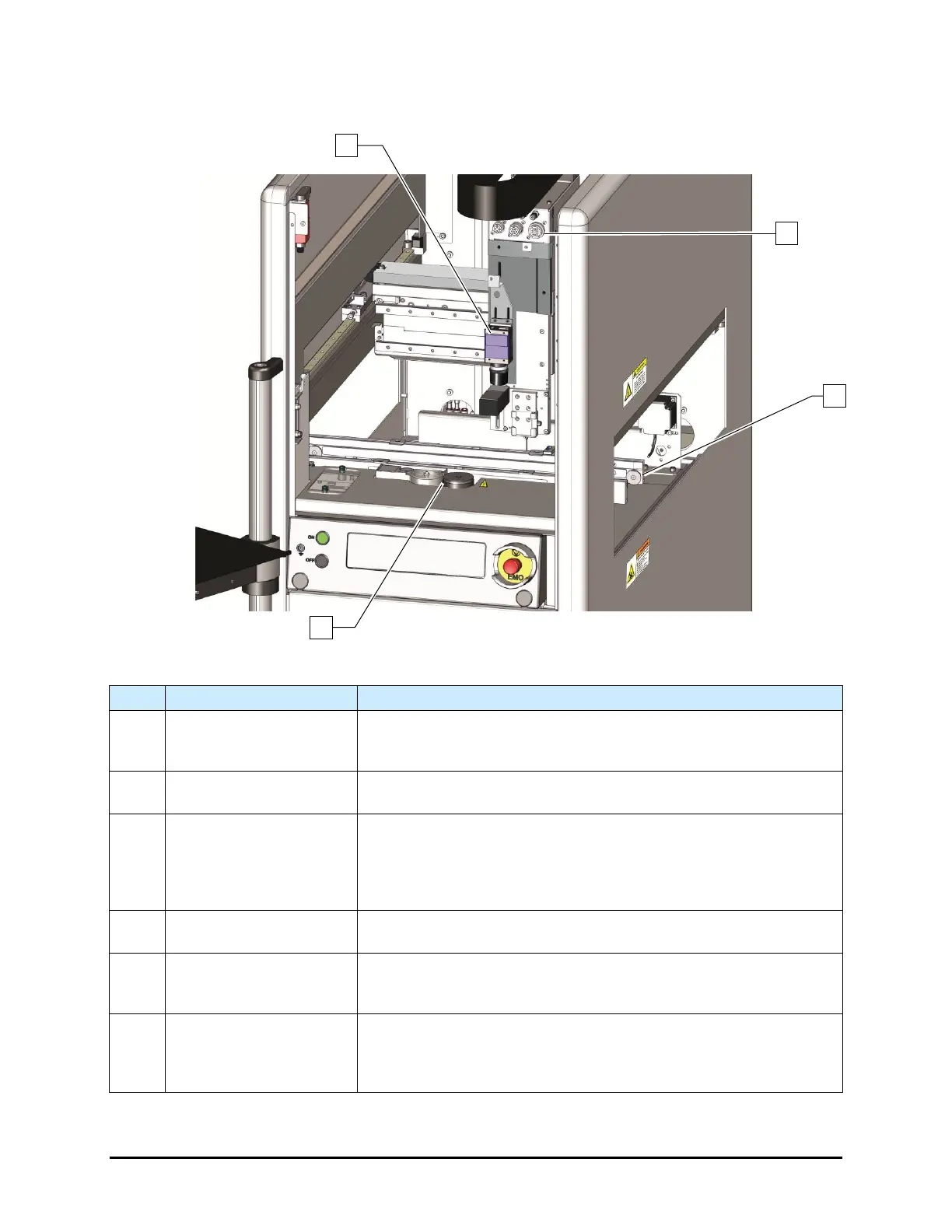

Figure 1-3 Dispensing Area
2
1
3
4
