Nordson Spectrum II Series User Manual

5-8 Calibration and Adjustment
5.8 Calibrating the Scale
 NOTE The scale should only need to be calibrated once during installation. However, if the scale
is moved, recalibration is recommended.
Tools and Materials Needed:
• Calibration Weight Set (P/N 193758)
• Screwdriver
• Latex gloves or tweezers
To calibrate the scale:
1. Power on the dispensing system and start Fluidmove.
2. Select
Configuration > Setup Scale from the Main Window.
 The Scale Setup window opens (Figure 5-7).

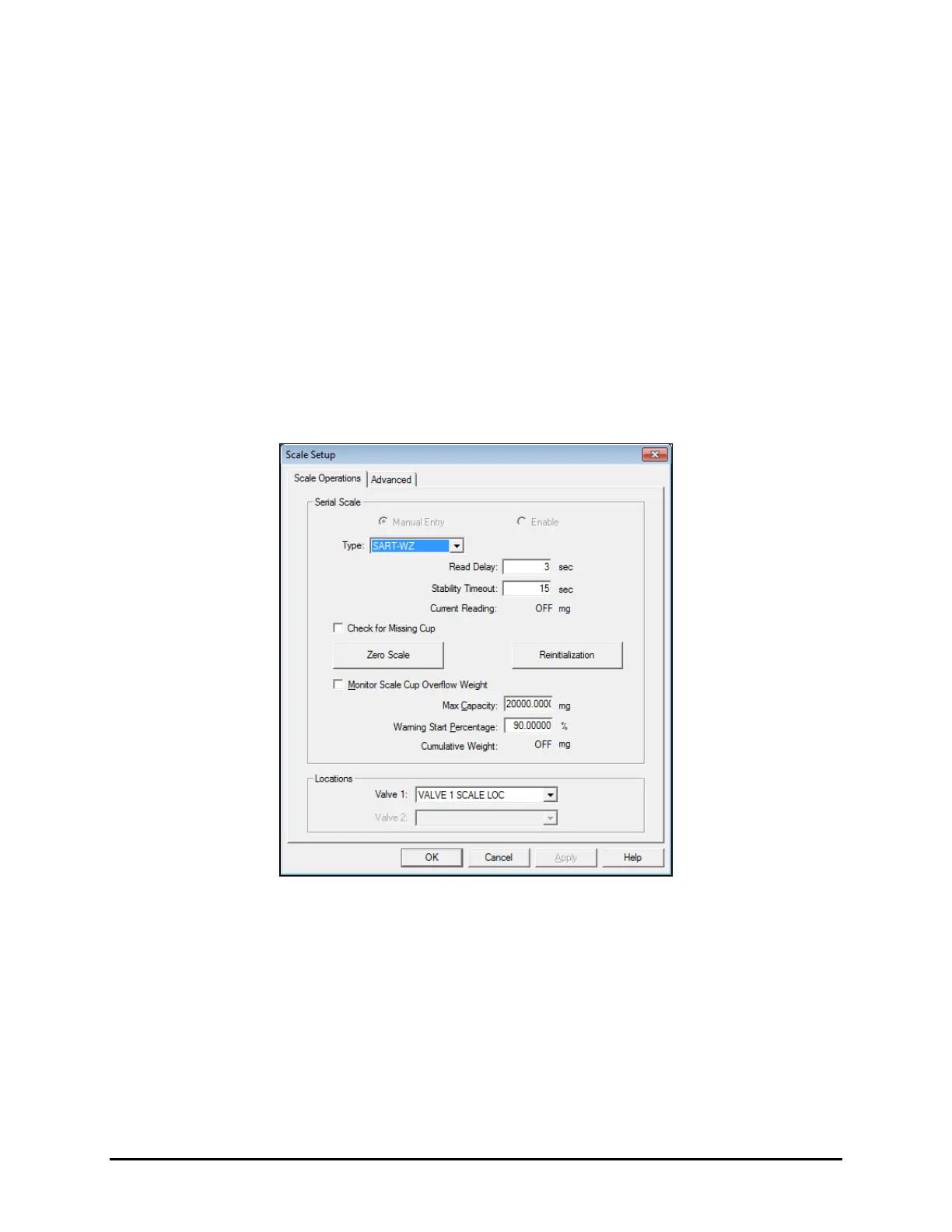

Figure 5-7 Setup Scale - Scale Operations Tab
3. Select “SART-WZ” from the Type pull-down menu.
