Nordson Spectrum II Series - Scale; Figure 1-5 Scale Assembly

Introduction 1-17
1.11.4 Scale
Scale Assembly
Scale Assembly with Shutter (Cleanroom)
Item
Name
Description
1 Scale Assembly
The scale measures the weight of dispensed fluid and sends the
information to the Fluidmove software for mass flow calibration. The
scale is standard on S2-900P systems and an option on S2-900
systems.
2
Scale Assembly with
Shutter (Cleanroom)
The S2-900 Cleanroom configuration has a pneumatically actuated
shutter mechanism built into the scale to prevent fluctuations due to
the ULPA filter System. The shutter only opens when dispensing into
the scale.

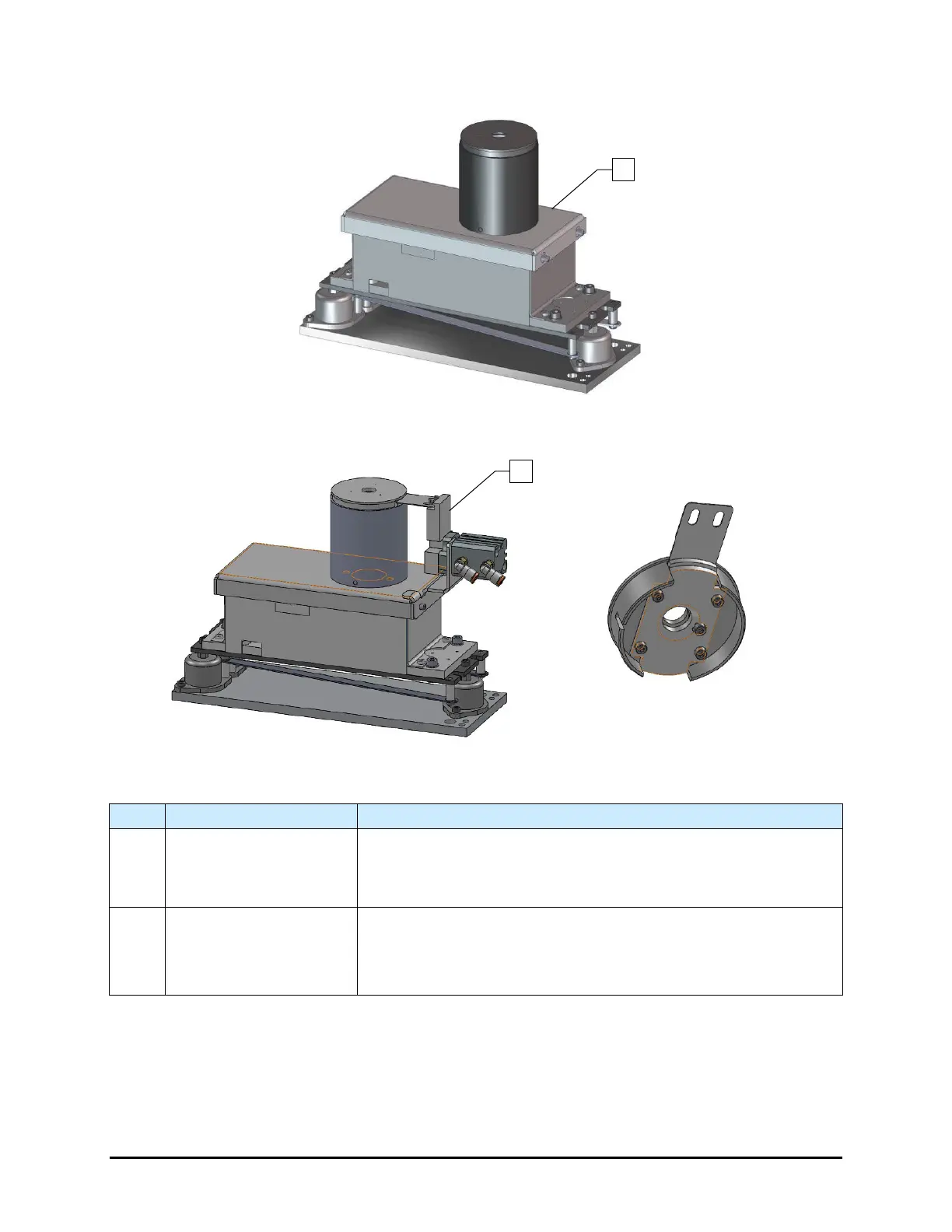

Figure 1-5 Scale Assembly
1
2
