Installation 3-7
4. Place the box level along the Y-axis linear guide (Figure 3-6).

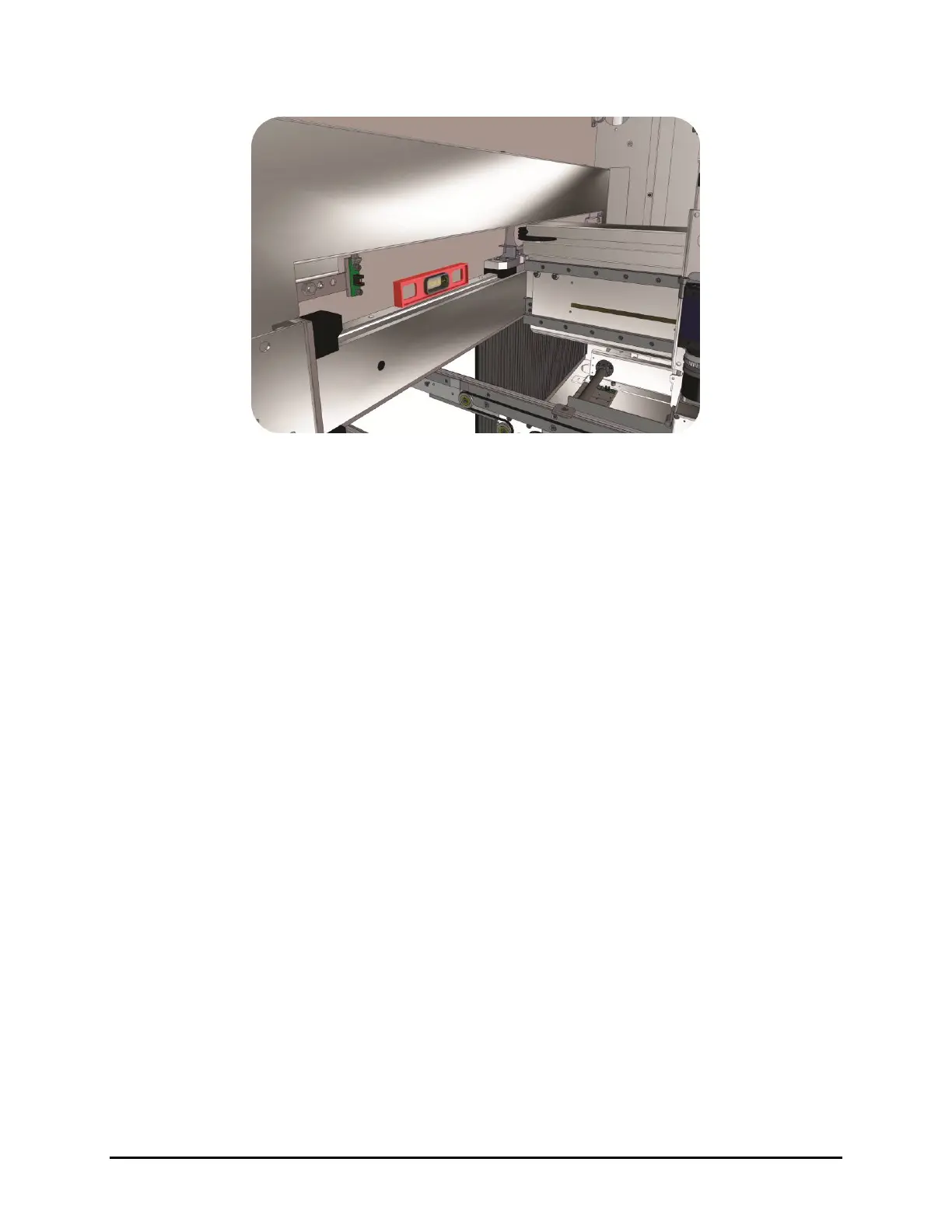

Figure 3-6 Leveling the Y-Axis
5. Observe the position of the bubble within the level’s window.
 The bubble should be centered, indicating dispensing system is level from
front-to-back.
6. If necessary, adjust the levelers (Figure 3-2) of the dispensing system as follows:
a. Loosen the 1½-inch lock nut on the leveler.
b. Turn the 1½-inch post nut in the desired direction until the level’s bubble is centered,
indicating that the system is level from front-to-back.
 Turning the post nut clockwise raises the dispensing system. Turning the post nut
counterclockwise lowers the dispensing system.
c. Tighten the 1½-inch lock nut on the leveler.
7. Check the system for stability by putting your hands on top of the dispensing system in
one corner and pressing down. If one leveler is lower or higher than the others, the
dispensing system will rock back and forth. Adjust the levelers so that they are all bearing
the weight equally.
8. Re-level the dispensing system from side-to-side and from front-to-back, if necessary.
