Nordson Spectrum II Series User Manual

Maintenance 6-17
6.11 Tensioning the Cables
6.11.1 Tensioning the X/Y Cables
To tension the X/Y cables:
1. Perform a service shutdown as specified in 2.13 Service Shutdown.
2. Loosen the X-axis and two (2) Y-axis tensioner screws.
 Make sure the brackets are loose.
3. Manually move the Z-head in a circle around the entire length and width of the dispensing
area approximately five (5) times.
4. Stop in the center of the dispensing area.
5. Retighten the tensioner screws.

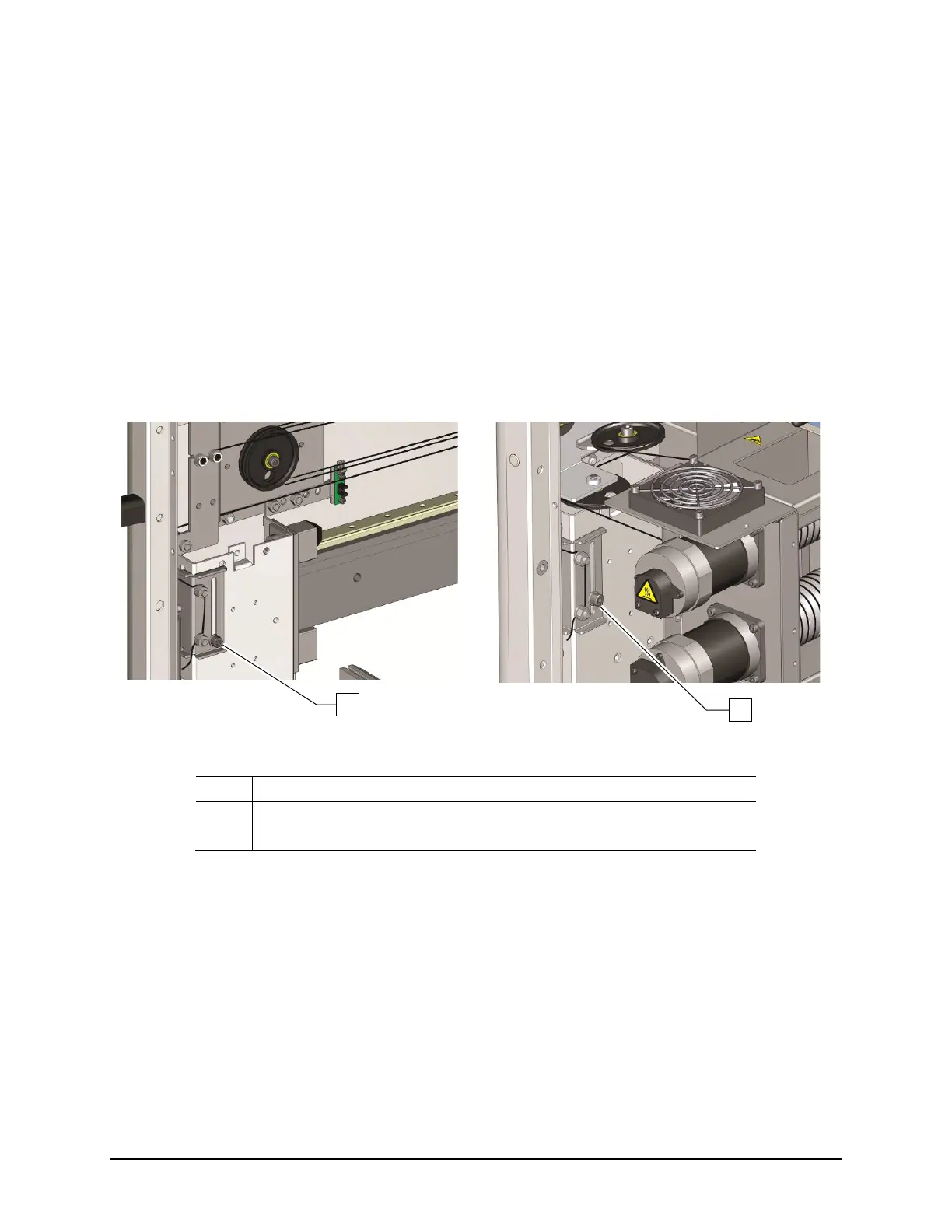

Figure 6-11A Tensioning the X-Axis Cables
Figure 6-11B Tensioning the Y-Axis Cables
Item Description
1 X-Axis Tensioner Screw
2 Y-Axis Tensioner Screw (only 1 shown)
Figure 6-11 Tensioning the Cables
2
1
