Nordson Spectrum II Series User Manual

6-16 Maintenance
9. Power on the dispensing system.
10. Use the Fluidmove position controls to move the dispensing head back and forth in both the
X-axis and the Y-axis.
11. Open the hatch and use a soft cloth to remove any excess grease along the rails.

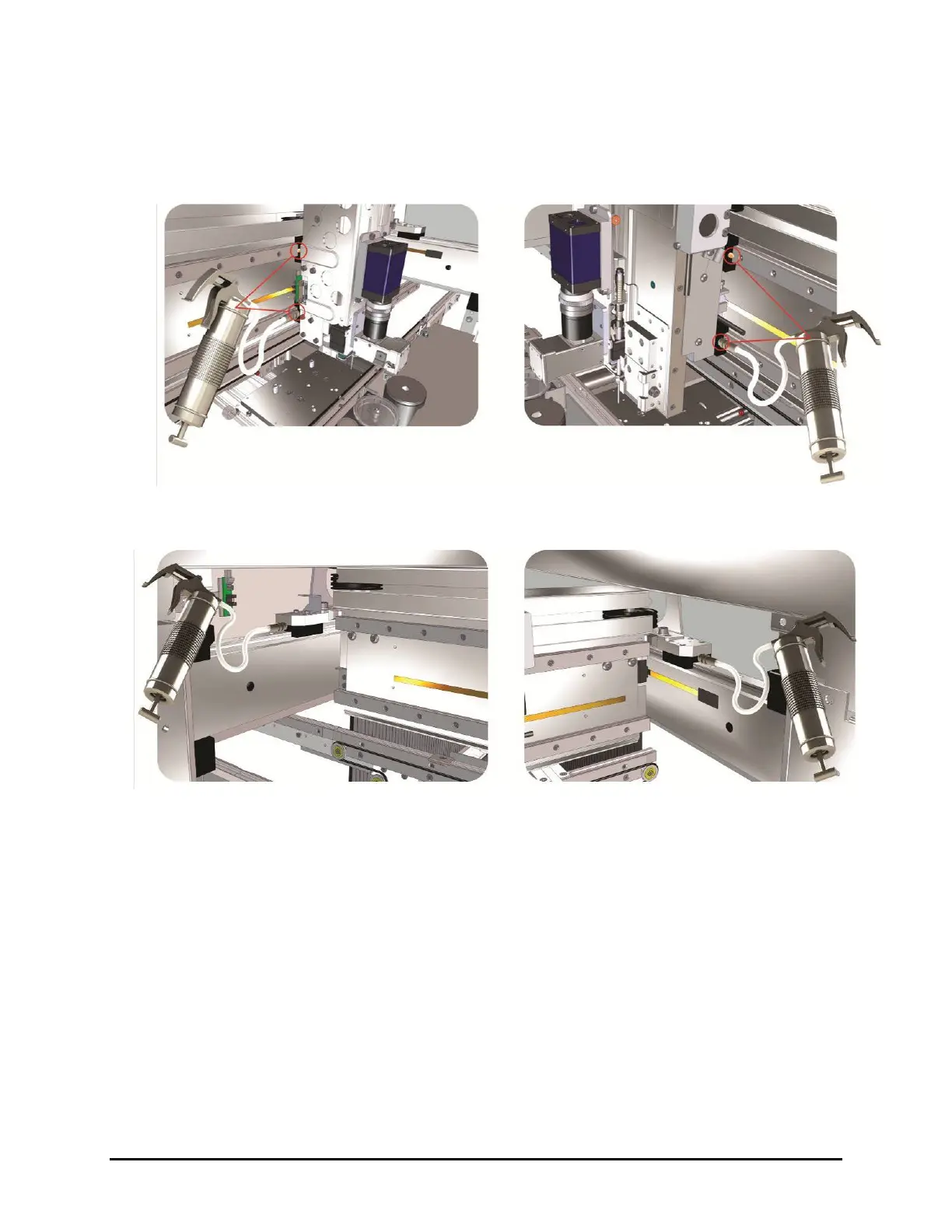

Figure 6-9 Lubricating the X-Axis Linear Guides
Figure 6-10 Lubricating the Y-Axis Linear Guides
