Nordson Spectrum II Series User Manual

Introduction 1-13

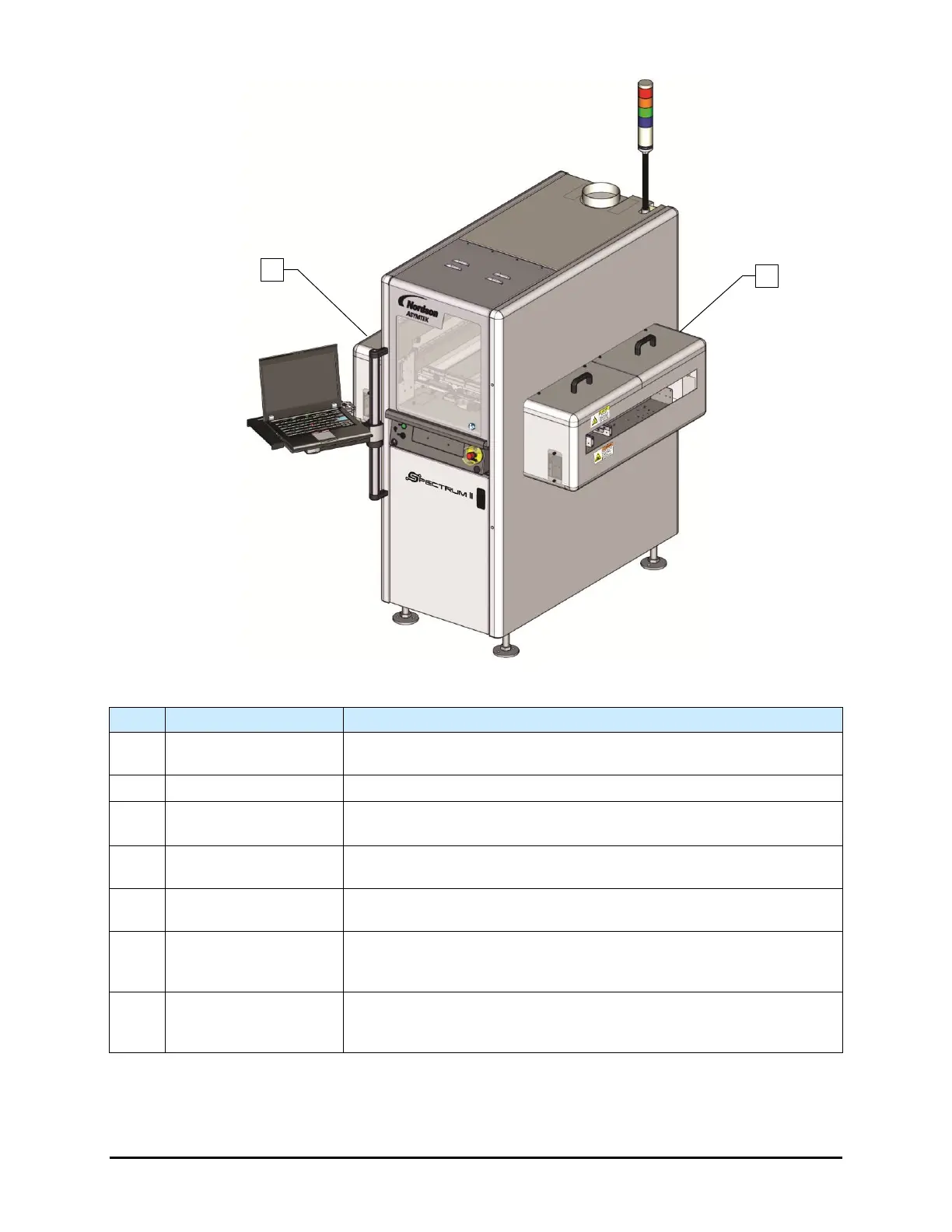

Figure 1-1B S2-900 with Optional Pre- and Post-Queue Stations
Item Name Description
1 Light Beacon
The Light Beacon is a device that displays system status and can warn
the operator when fault conditions exist.
2 Dispensing Area
See 1.11.2 Dispensing Area
.
3 Front Panel
ON and OFF Buttons, Emergency Stop, and Grounding Strap Jacks
are located on the Front Panel. See 1.11.5 Front Panel
.
4 Computer
The Dispensing System features a laptop computer which runs the
Fluidmove dispensing software.
5 Exhaust Vent
The Ventilation Exhaust System works in conjunction with the facility
exhaust system to remove excess heat, fumes, or odors.
6 Pre-Queue Station
The optional pre-queue station can be added for higher throughput or
as a buffer station for either single or dual lane configurations. In
addition, the S2-900 can be configured with pre-dispense heat.
7 Post-Queue Station
The optional post-queue station can be added for higher throughput or
as a buffer station for either single or dual lane configurations. In
addition, the S2-900 can be configured with post-dispense heat.
