Operation 4-11
4.7 Jog Window
When necessary, an operator can use Fluidmove Jog Controls to reposition the dispensing head in the X-,
Y-, and Z-axes, adjust conveyor rail width, and reposition the workpiece X-axis location on the conveyor.
These jog controls can be operated using the touchpad to click on-screen buttons, or by pressing key
combinations on the keyboard. Both methods are described below.
 NOTE These procedures assume that the dispensing system and computer have been turned on
as specified in 4.3 Powering on the Dispensing System.
To access the jog window:
1. In the Fluidmove Main Window, click on
Jog.

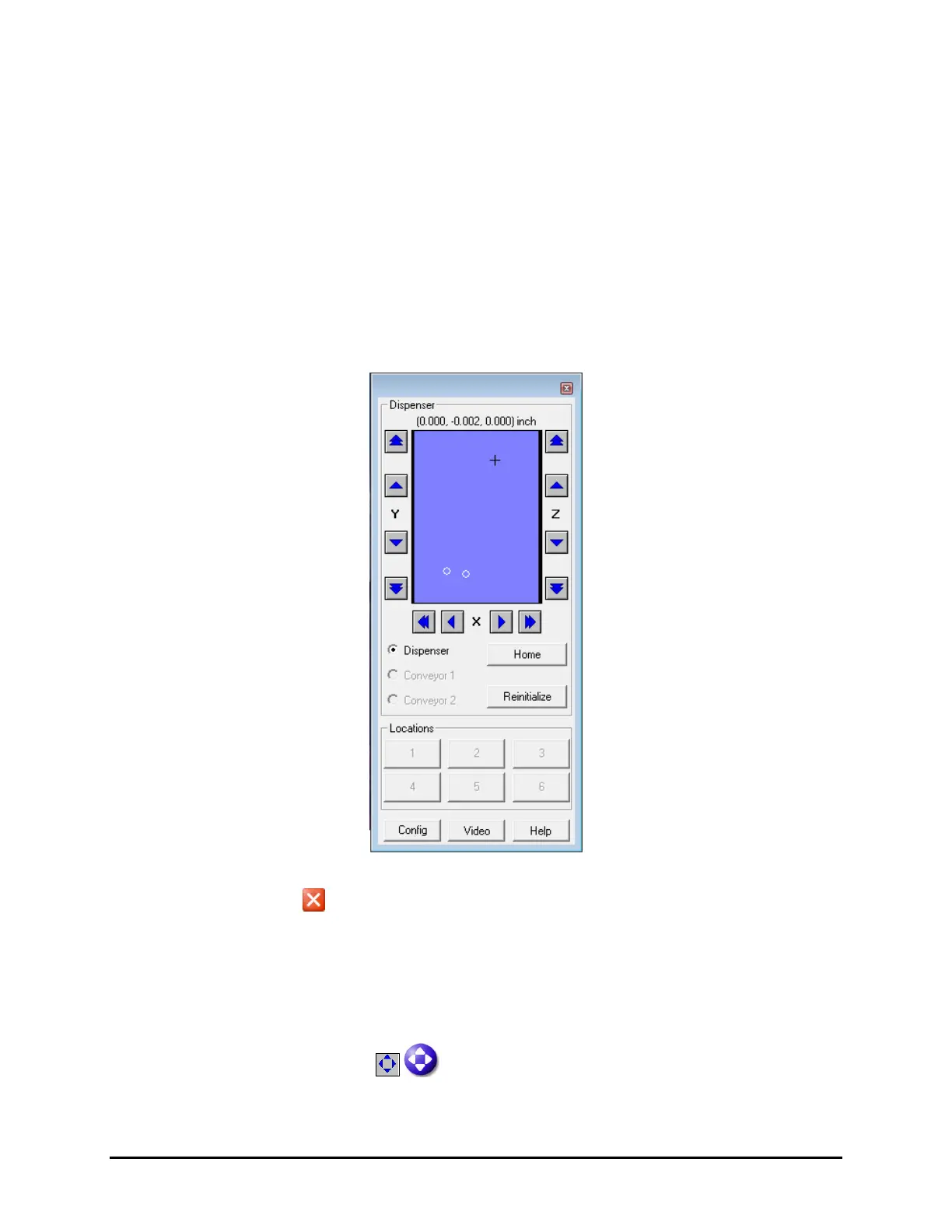

 The Jog Window opens (Figure 4-11).
Figure 4-11 Jog Window
2. Click on Exit to close the Jog Window.
 When you close the jog widow, the last selected jogging device (Dispenser,
Conveyor 1 or Conveyor 2) is the active jogging device. The selected jog device is
indicated in the bottom right-hand corner of all major windows.
 The Jog Window can be accessed from the Main Window, the Production Window, the
Run Window, the Programming Window, and the Tools Window.
 Click on a
Jog icon to open the Jog Window from one of the major windows.
