Nordson Spectrum II Series User Manual

5-20 Calibration and Adjustment
NOTE If the fluid pressure does register on the digital gauge, you must manually
enable the fluid pressure output by selecting
Tools>Dispenser from the
Fluidmove Main Window and toggling the Valve 1 Fluid Air (V1_Fluid_Air).
See Figure 5-22.

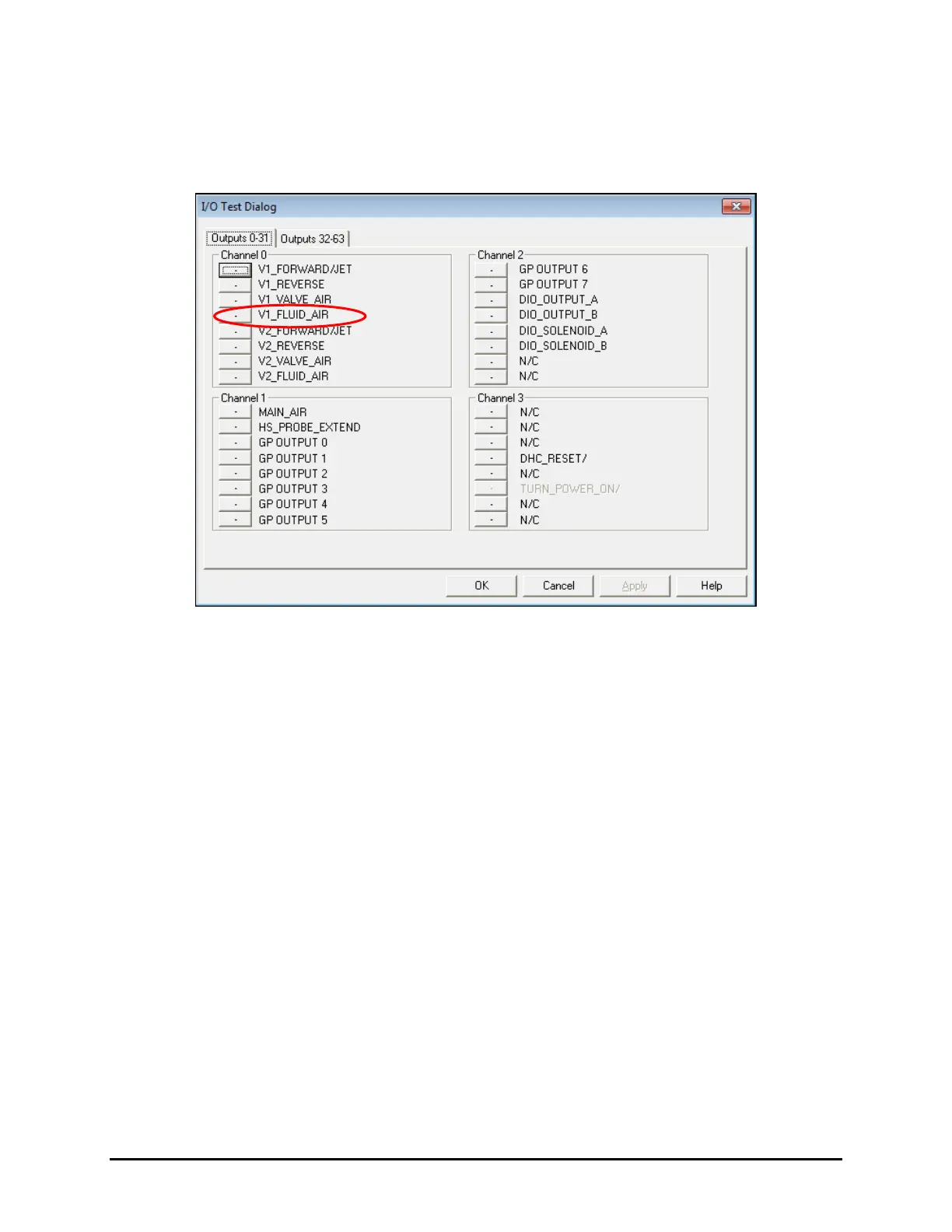

Figure 5-22 I/O Test Dialog

Nordson Spectrum II Series Specifications

General

Brand	Nordson
Model	Spectrum II Series
Category	Dispenser
Language	English
