4-42 Operation
4. Move the cursor to the beginning of the END USE CONVEYOR command.
5. Click on the
Dispense Elements button on the Program Commands toolbar.
 A Teach Window opens.
6. Select the element you want to program from the Dispensing Elements toolbar and follow
the screen prompts.
7. Click on
Done when you are finished.
 The dispensing command should be inserted between the Use Conveyor 1 and
End Use Conveyor commands.
8. Save the program.

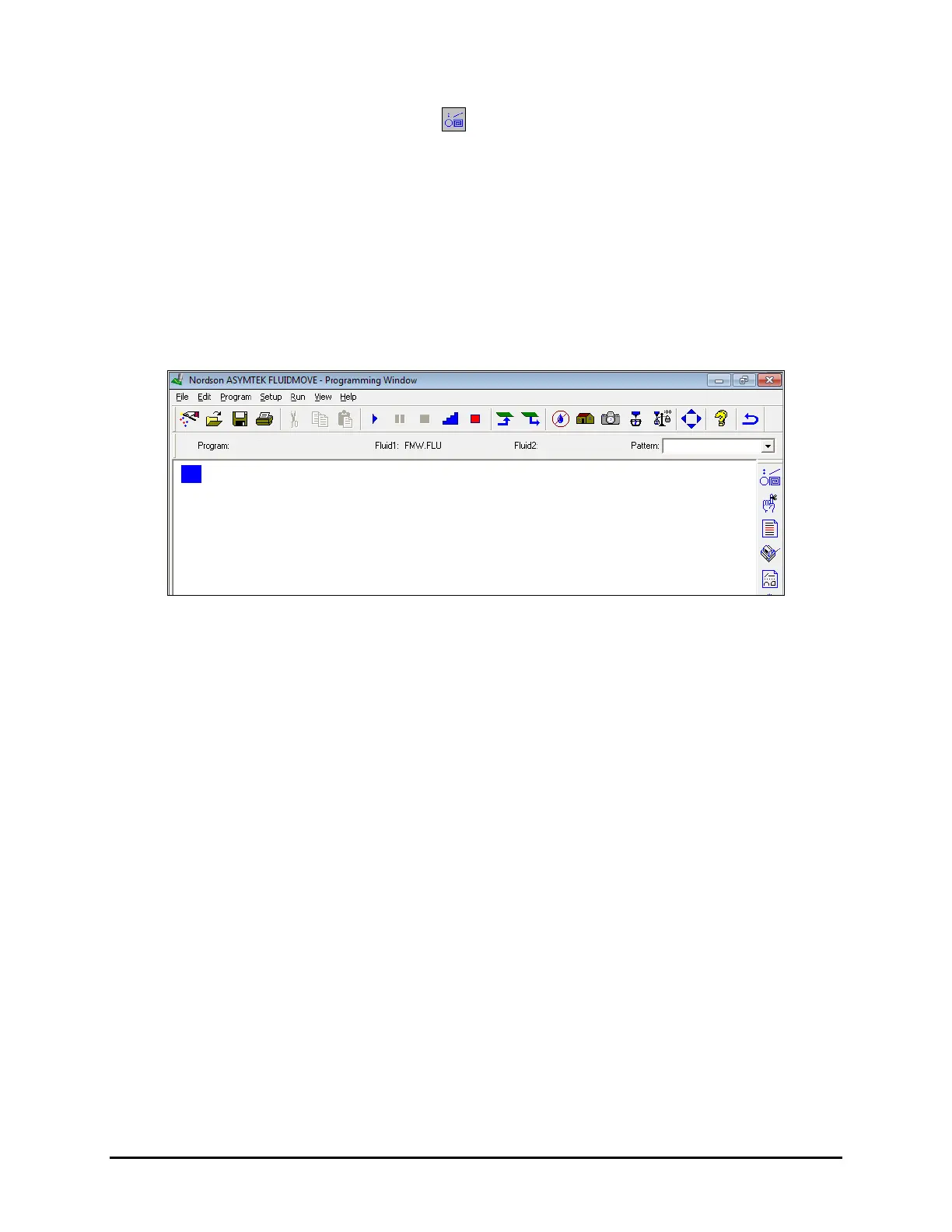

 A sample program is shown in Figure 4-37.
Dual_Lane
Workpi ece
1 USE CONVEYOR 1:
2 DO: C1LINE AT (2.032, 4.769)
3 END USE CONVEYOR:
4 USE CONVEYOR 2:
5 DO: C2DOT AT (4.964, 5.501)
6 END USE CONVEYOR:
7 END:
1
Figure 4-37 Sample Dual Conveyor Program
 NOTE Conveyor Block Commands can only be placed in the Workpiece Pattern.
