Nordson Spectrum II Series User Manual

Parts Replacement 8-9
8. Install the lower section onto the middle section by hand-tightening clockwise.
9. Install the lens onto the 2x optical lens clockwise until hand tighted.
10. Focus the camera as described in 5.5 Focusing the Camera.
Item Description Item Description
1 Bracket 5 Upper Section
2
Screw (Third screw is located
opposite of lower left screw)
6 Middle Section
3 Camera 7 Aperture Disk
4 2x Optical Lens 8 Lower Section

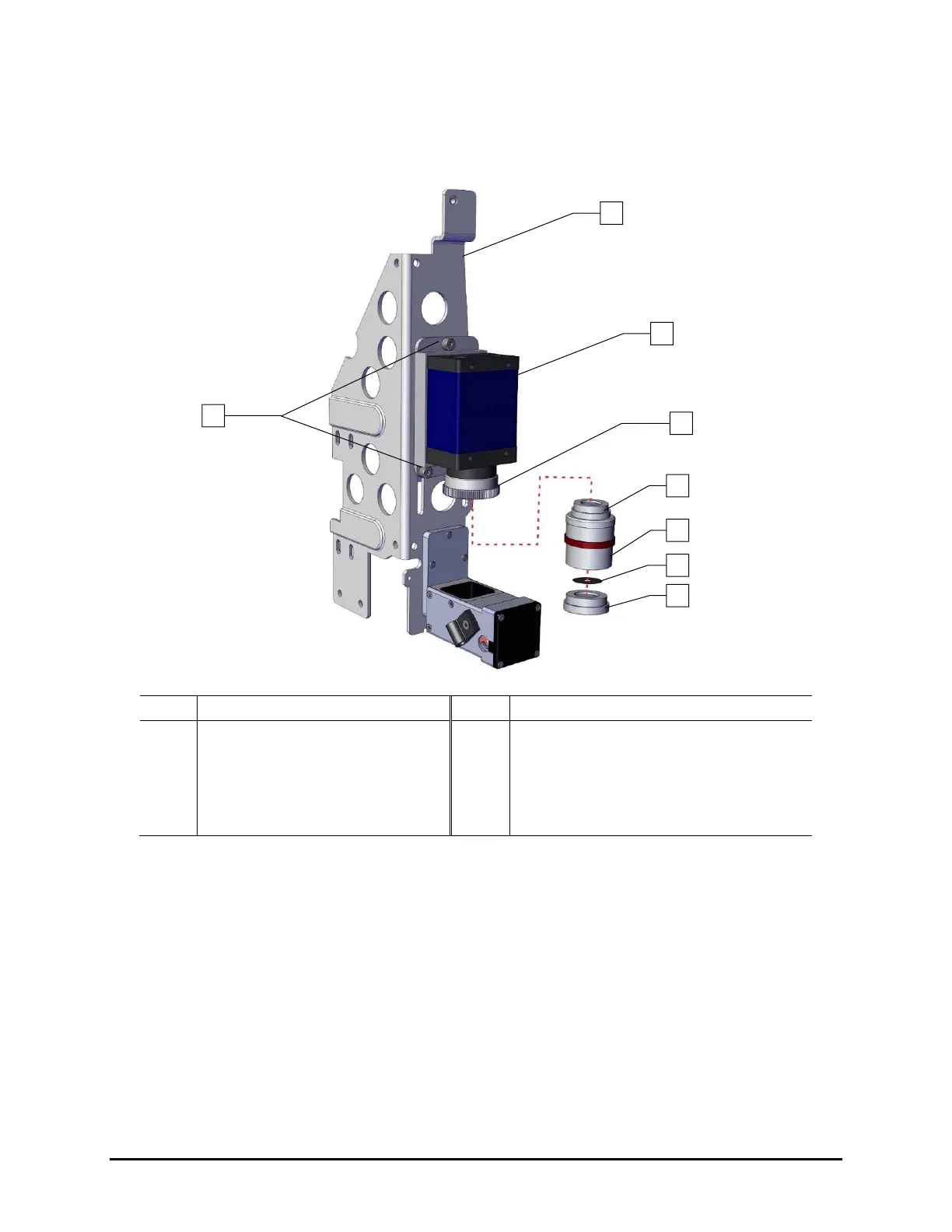

Figure 8-6 Camera Lens Replacement
1
3
4
7
6
5
8
x3
2
