Philips MX400 - Standard 3-Lead Placement

To Next Page

To Previous Page

6 ECG, Arrhythmia, ST and QT Monitoring

140

Standard 3-Lead Placement

V2 C2 Brown/Yellow White/Yellow

V3 C3 Brown/Green White/Green

V4 C4 Brown/Blue White/Brown

V5 C5 Brown/Orange White/Black

V6 C6 Brown/Violet White/Violet

Electrode labels Electrode colors

AAMI EASI IEC AAMI IEC

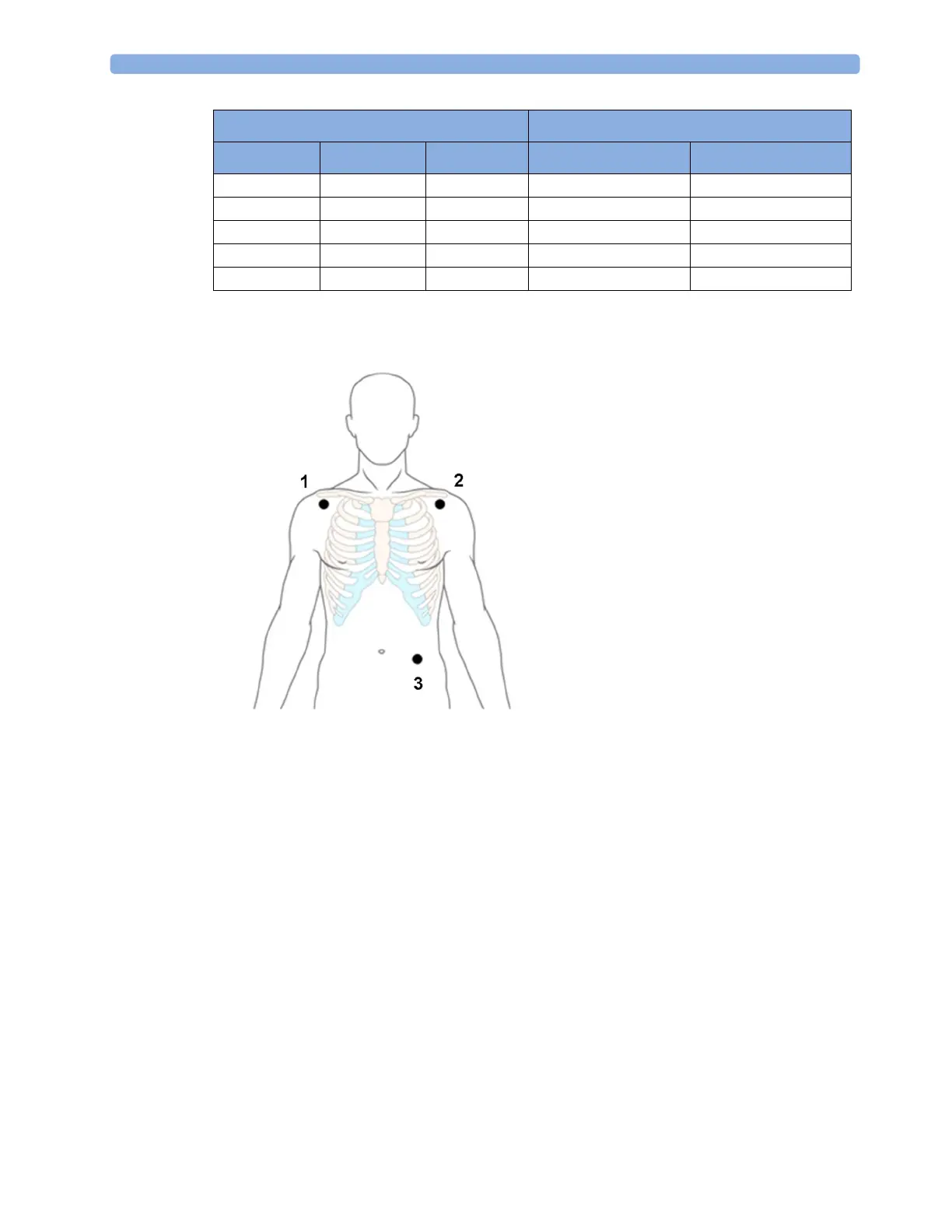

1 RA placement: directly below the clavicle and

near the right shoulder

2 LA placement: directly below the clavicle and

near the left shoulder

3 LL placement: on the left lower abdomen
