Philips MX400 - Left Side of the Monitor; Right Side of the Monitor

To Next Page

To Previous Page

40 Specifications

450

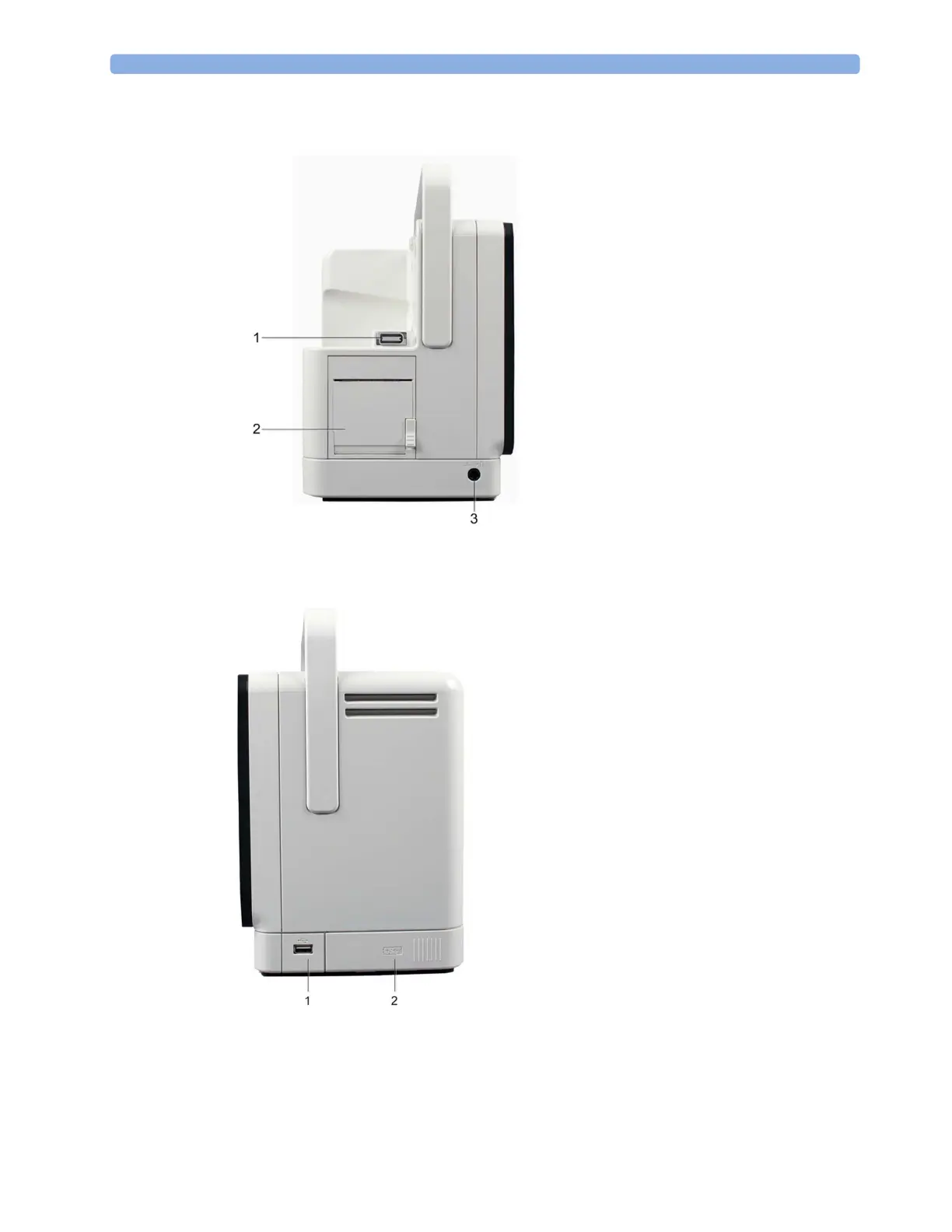

Left Side of the Monitor

Right Side of the Monitor

1 MSL interface link

2 Integrated recorder

3 ECG Sync Output/Analog

ECG output connector

1 Optional USB slot

2 Battery compartment
