Philips MX400 - X2 Patient Connectors, Right Side; X2 Left Side

1Introduction
24
8
Silence key
9 Active alarm lamp. Red or yellow, depending on alarm level. Blinks until active alarm is
acknowledged.
10 Active INOP alarm lamp in light blue. Blinks until active INOP is acknowledged.
11 Alarms off indicator. When alarms are suspended, the lamp is red (or yellow when yellow alarms
are suspended), and the alarms off symbol is shown.

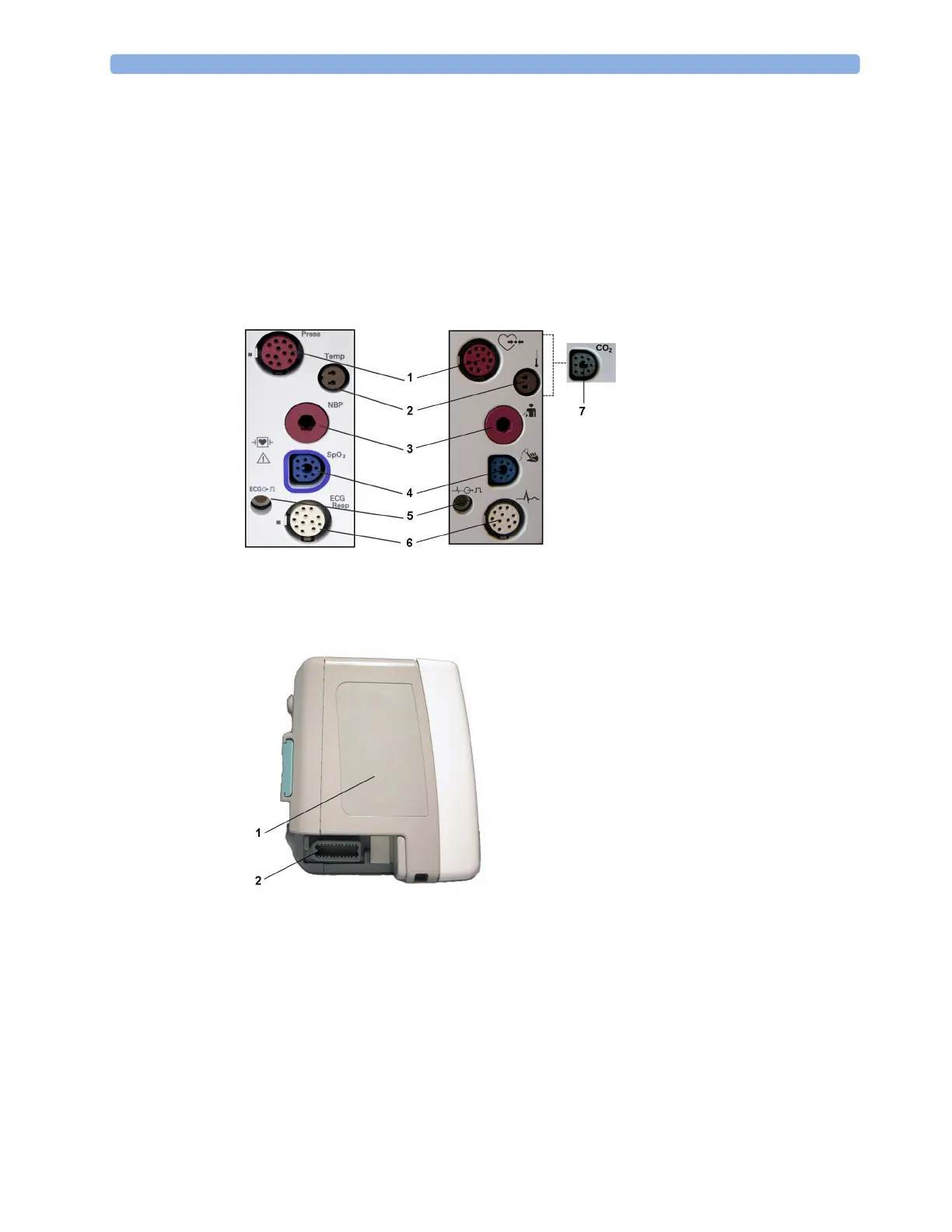

X2 Patient Connectors, Right Side
X2 Left Side
1 Pressure (option)
2 Temperature (option)
3 Noninvasive blood pressure
4 SpO
2
5 ECG sync pulse output
6 ECG/Respiration
7 CO
2
(option in place of
Pressure and Temperature)
1 Loudspeaker
2 MSL Connector. Connects to the external power
supply or a host monitor via the MSL cable for AC
mains operation, battery charging, and
communication with a network.
