40 Specifications

454

MX600/700/800

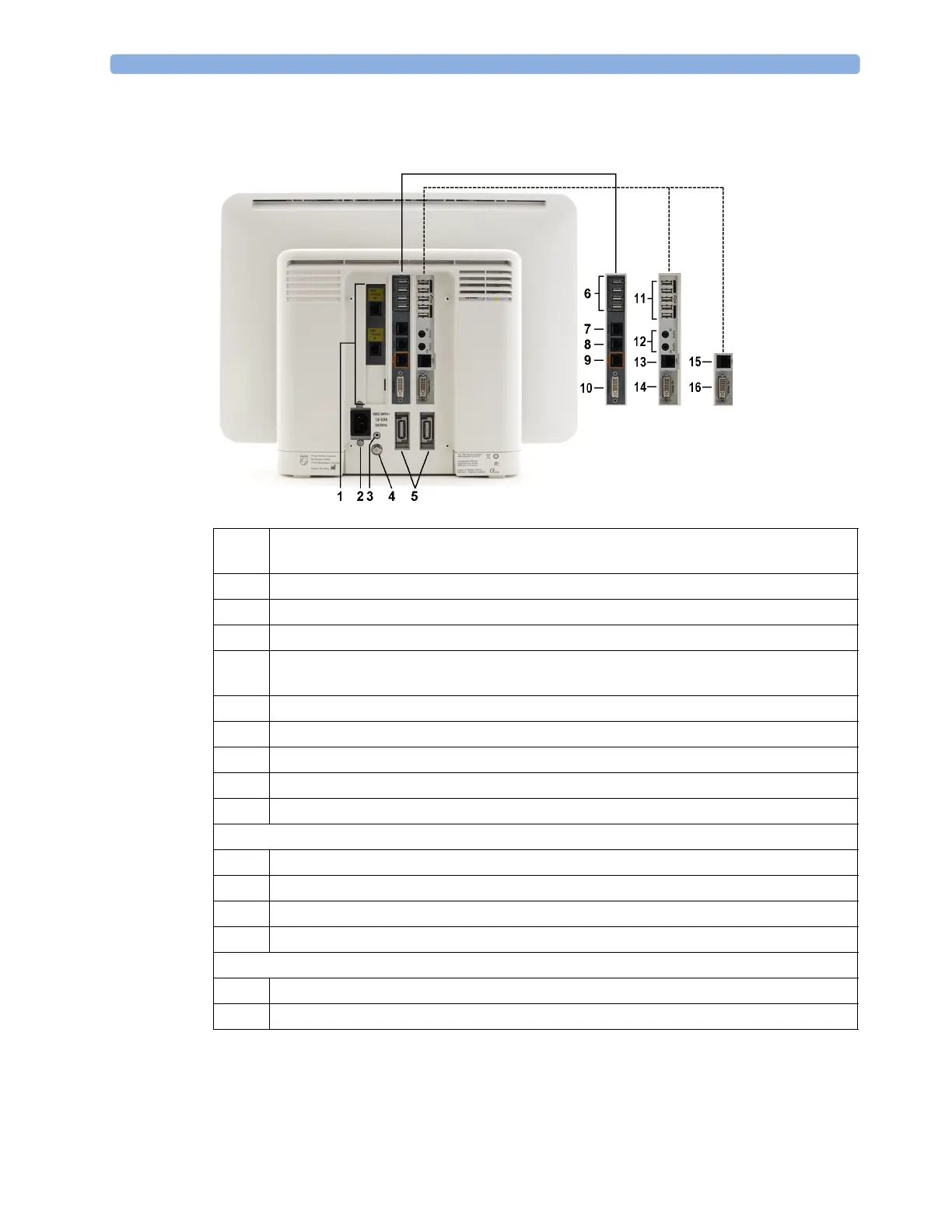

Rear of the Monitor

1 Serial/MIB (RS232) interface cards, type RJ45 or Flexible Nurse Call interface card or

combination of both (optional)

2 AC power input

3 Protective earth screw hole

4 Equipotential ground connector

5 Measurement link connectors (MSL)

(Two standard in MX800, one standard in MX600/700)

6 USB rear connectors (for remote control, keyboard, pointing devices, printer)

7 Serial RS232 connector

8 Nurse Call

9 Wired network connector

10 Video out connector (digital/analog)

The following connectors are only present with the iPC

11 USB rear connectors (for keyboard, pointing devices, printer)

12 Audio in/out

13 Local Area Network

14 Video out connector (digital/analog)

The following connectors are only present with the Independent Display Interface

15 Serial RS232 connector for touch

16 Video out connector (digital/analog)
