Philips MX400 - Example With Medium Mode; Example With Long Mode

9 Monitoring SpO2
198

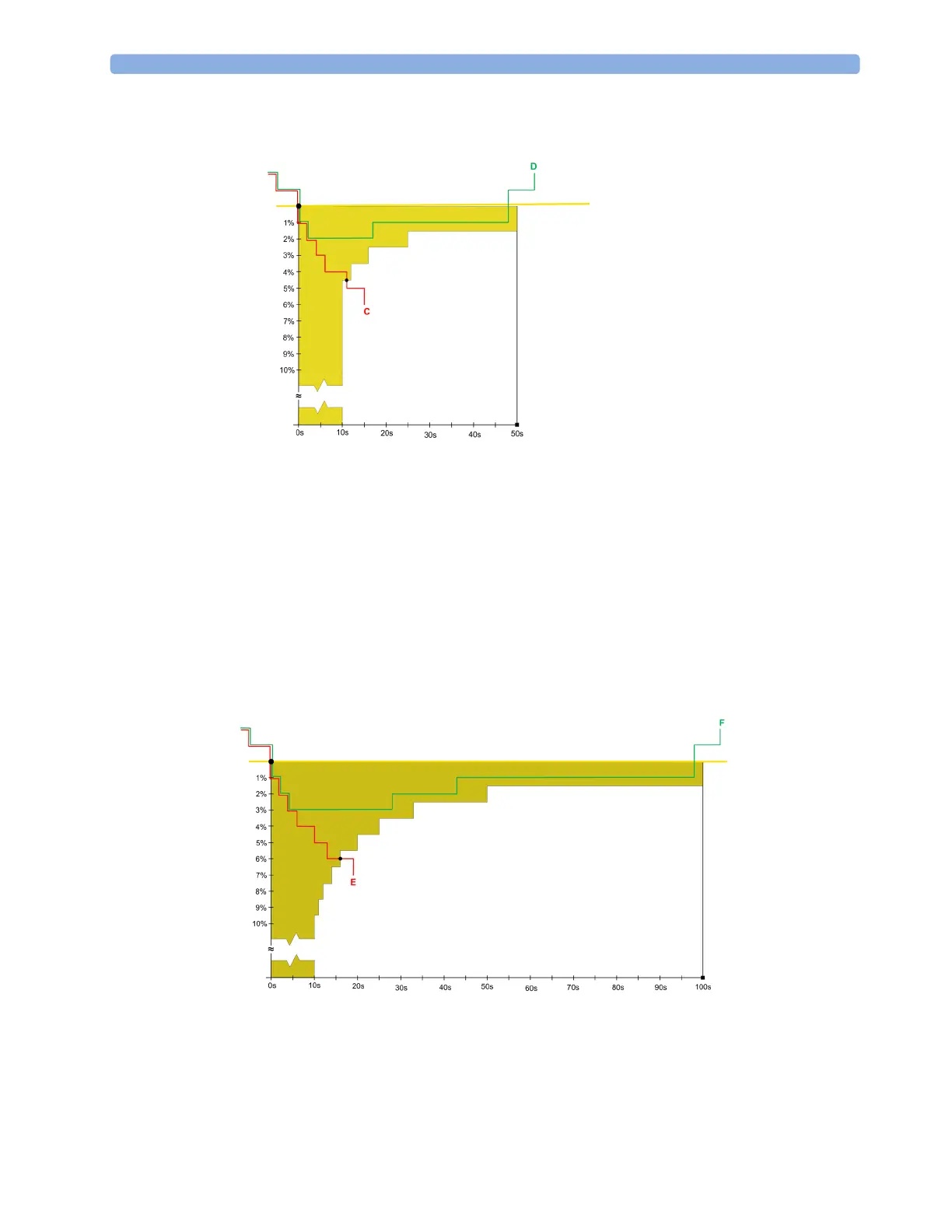

Example With Medium Mode
This diagram shows the area for Medium mode, with two examples of hypoxia.
Progressive hypoxia scenario: SpO
2
value (C) - the values drop steadily and after 11 seconds a value
leaves the shaded area. An alarm is indicated immediately.
Recovery scenario: SpO
2
value (D) - the values stay within the shaded area for 48 seconds, deviating
from the alarm limit by 1% or 2%, before rising again above the alarm limit. No alarm is indicated
because the SpO
2
values never leave the shaded area below the alarm limit.
Example With Long Mode
This diagram shows the area for Long mode, with two examples of hypoxia.
Deviation from
violated Alarm
Limit
Alarm Limit
Resulting Alarm Delay
Deviation from
violated Alarm
Limit
Alarm Limit
Resulting Alarm Delay
