The optional M3015A Microstream CO
2
extension adds microstream capnography and optionally
either pressure or temperature to the MMS. The optional M3015B Microstream CO
2
extension adds
microstream capnography, two pressures and a temperature to the MMS.
MX600/700/
800
The optional M3016A Mainstream CO
2
extension adds mainstream capnography and optionally either
pressure or temperature to the MMS.
When a capnography extension is connected to an X2 MMS with CO
2
, the CO
2
from the extension
will be automatically deactivated in favor of the one in the X2. If you prefer to use the CO
2
measurement on the extension, you can activate it via the measurement selection key (see “Resolving
Label Conflicts” on page 44).

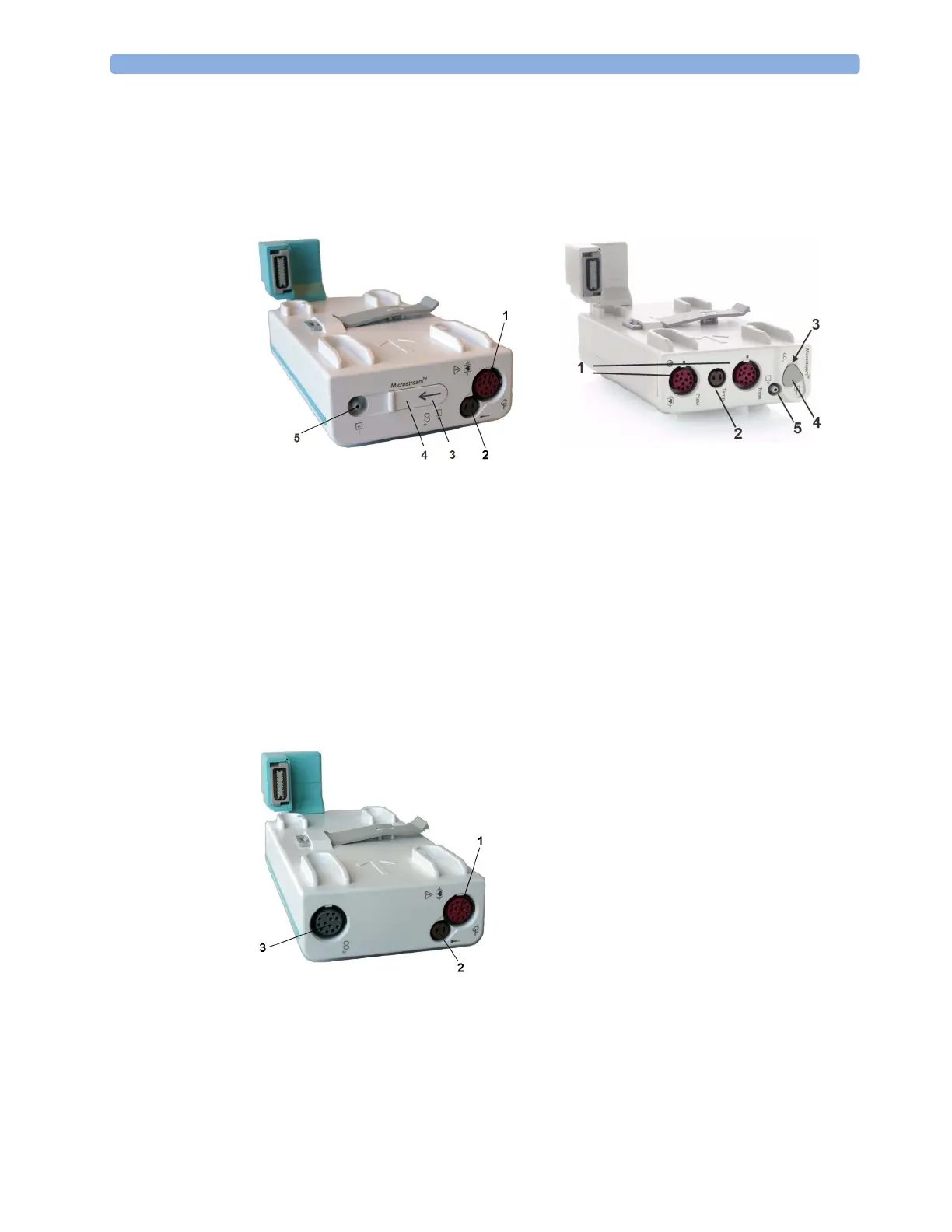

M3015A M3015B
1 Pressure connectors (red) - M3015A optional
2 Temperature connector (brown) - M3015A optional
3 Inlet
4 Microstream connector CO
2
5 Gas sample outlet
M3016A
1 Pressure connector (red)
2 Temperature connector (brown)
3 Mainstream/sidestream connector CO
2
(optional)
