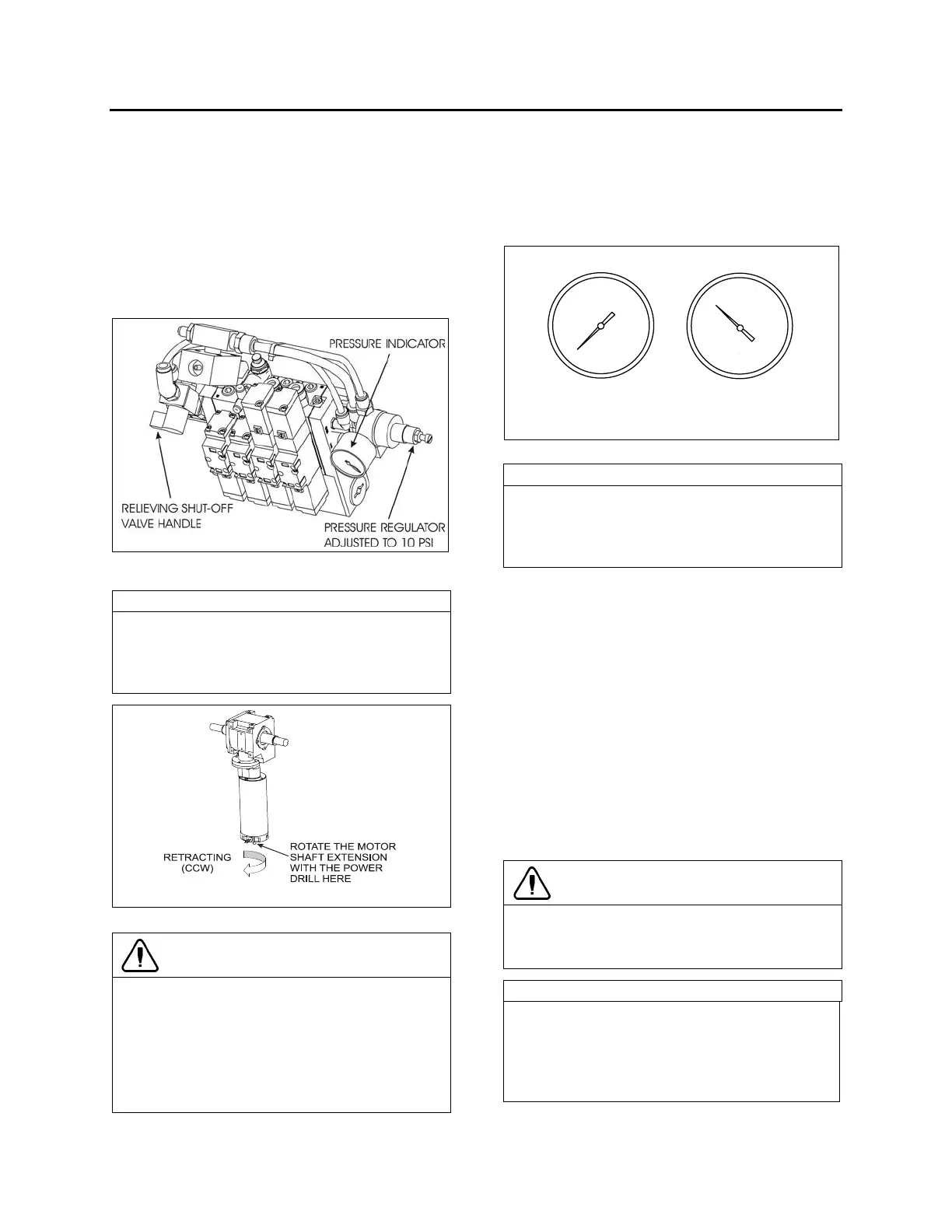

Section 26: XLII SLIDE-OUT
PA1553
38
4. To move the slide-out, use a cordless power
drill with a 3/8" hexagonal bit on the shaft
extension of the slide-out motor.
5. Rotate the slide-out motor shaft extension
with the power drill until the slide-out comes
to its closed position (FIGURE 92).
6. Once the slide-out room is lined up to its
closed position, remove the tool from the
motor.
FIGURE
91: INFLATABLE SEAL RELIEVING SHUT-OFF
VALVE
NOTE
The front slide-out motor is located inside
the 2
nd
baggage compartment while the rear
slide-out motor is accessible from inside the
vehicle, under the bed structure.
FIGURE 92: SLIDE-OUT MOTOR ROTATION
CAUTION
Slow down on the closing speed as the slide-
out approaches its closed position. As soon as
the “in limit” stoppers come in contact with
their bearing surface, stop immediately the
power drill rotating movement. Not doing so
could overload the drive mechanism and
cause damage to the reduction gearbox.
4. Finally, the inflatable seal can be re-inflated
by turning the shut-off valve handle
counterclockwise. Check the pressure gage
on the inflatable seal regulator to see if the
pressure is increasing to 10 psi (FIGURE
93).
0 psi
SEAL DEFLATED
10 psi
SEAL INFLATED
15
10
5
0
p
si
20
25
30
15
10
5
0
p
si
20
25
30
FIGURE 93: INFLATABLE SEAL PRESSURE GAGE
NOTE
The slide-out control system inhibits
transmission range selection to prevent the
vehicle from moving if the slide-out is not in its
full "IN" position.
18.1.2 Manual extending procedure –
Front and rear slide-out
1. Apply barking brake to disengage the
security pin from the receptacle.
2. Turn the ignition switch to the "OFF"
position, and remove the ignition key for
more safety.
3. Deflate the inflatable seal by using the
relieving shut-off valve located on the
pneumatic component panel (FIGURE 91).
Turn the handle clockwise to deflate the
seal. Make sure the pressure indicator
reading is "0 psi".
CAUTION
The pressure in the inflatable seal must be
completely relieved to prevent any damage to
the seal.
NOTE
When air pressure is relieved using the shut-
off valve, the normal extending and retracting
operation cycle is disabled, for that reason the
slide-out cannot be moved with the handheld
control.
