PROCEDURE NO: PR060034 REVISION 3
Page 11 of 15

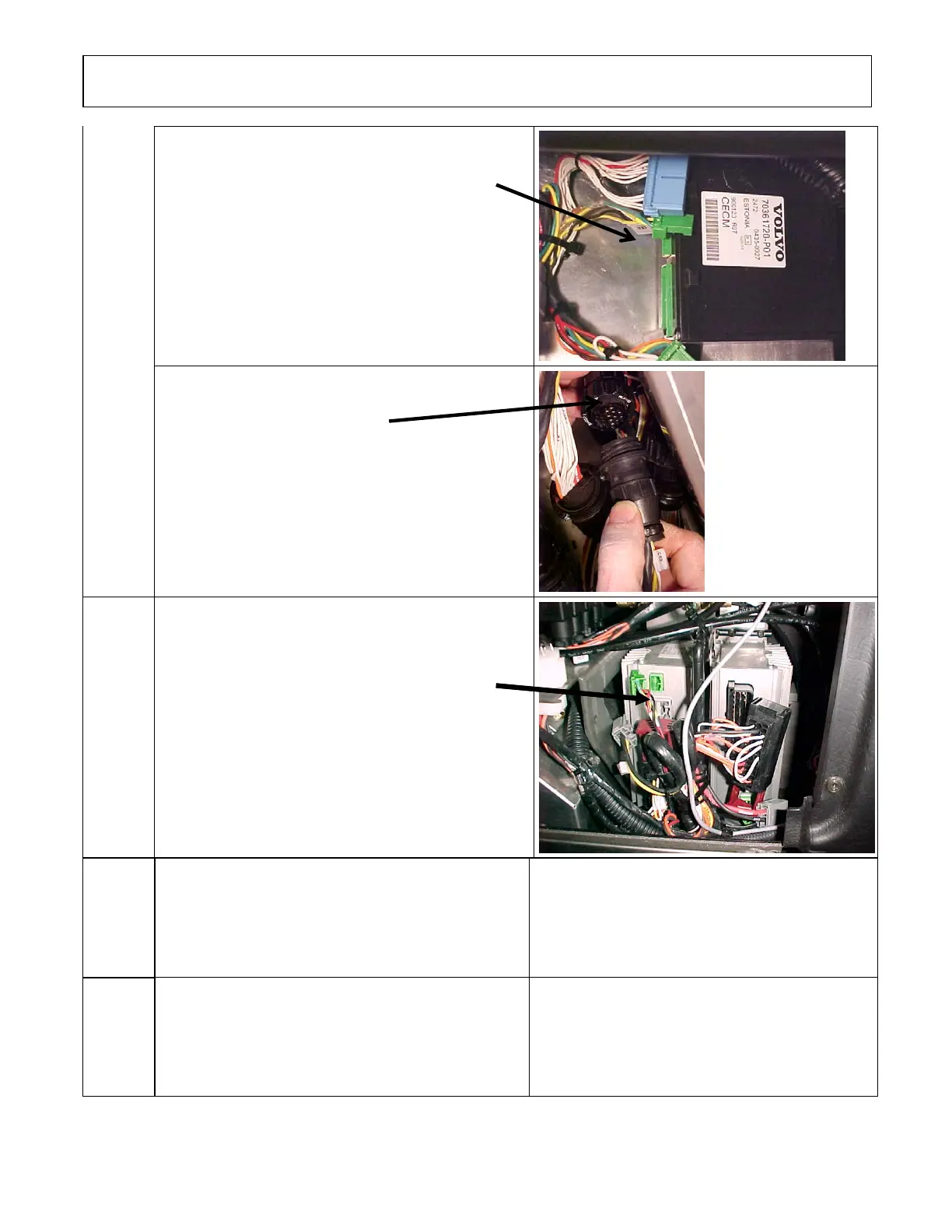

Disconnect the 3 connectors from CECM
Disconnect connector C92
2.25
Location: Entrance door & wiper control panel
Remove windshield wiper motor access
panel and disconnect both I/O B modules
2.30 When all the previous steps are done, you can do
welding on the vehicle
ENSURE THAT THE WELDING GROUND
RETURN CLAMP IS WELL SECURED AND
MAKES A GOOD ELECTRICAL CONTACT
WITH A LARGE METALLIC AREA OF THE
CHASSIS LOCATED NEAR THE WELDING
POINT AS MUCH AS POSSIBLE
2.40
When welding is completed, reconnect all the
modules.
Make sure that the connectors locking tab are well
engaged!
BE CAREFUL TO MAKE THE PROPER
CONNECTIONS, IF NOT, SOME SYSTEMS OR
COMPONENTS MAY NOT BE USABLE
