SERIES 60 SERVICE MANUAL
2. Using retaining ring pliers, remove retaining ring.
3. Slowly remove cover until spring pressure ceases, then remove the two control valve
springs and collar. See Figure 1-420.
1. Jake Brake Assembly 5. Washer
2. Control Valve 6. Collar Spring
3. Collar 7. Control Valve Spring
4. Snap Ring Retainer

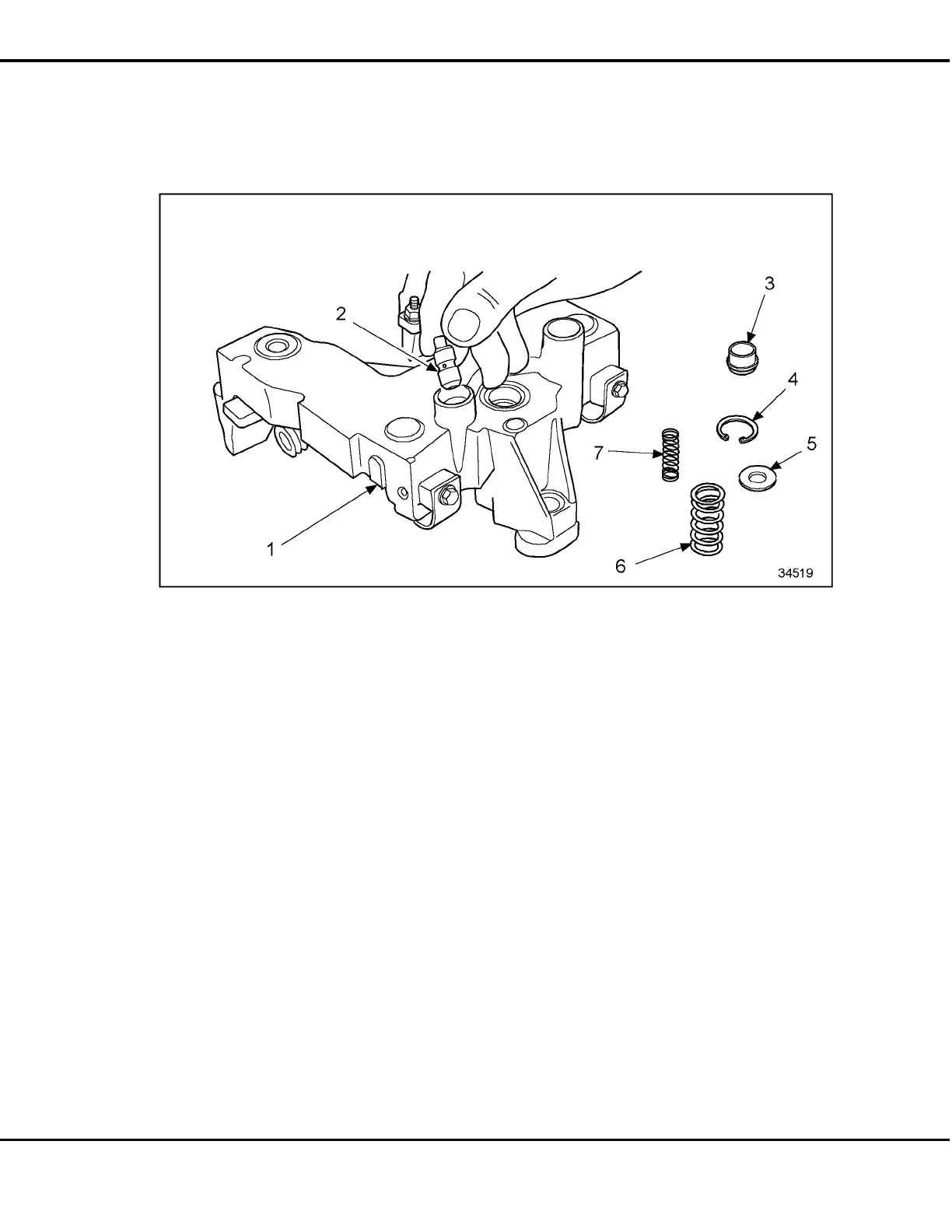

Figure 1-420 Removing Control Valve Springs and Collar
4. Using needle-nose pliers, reach into the bore and grasp the stem of the control valve.
Remove control valve.
All information subject to change without notice.
6SE483 9901 Copyright © 1999 DETROIT DIESEL CORPORATION From Bulletin 16-60-99 1-533
