SERIES 60 SERVICE MANUAL
Remove the slave piston as follows:
1. Remove the screw and spring that retains the slave piston return spring.
2. Remove the bridge and the slave piston. See Figure 1-426.

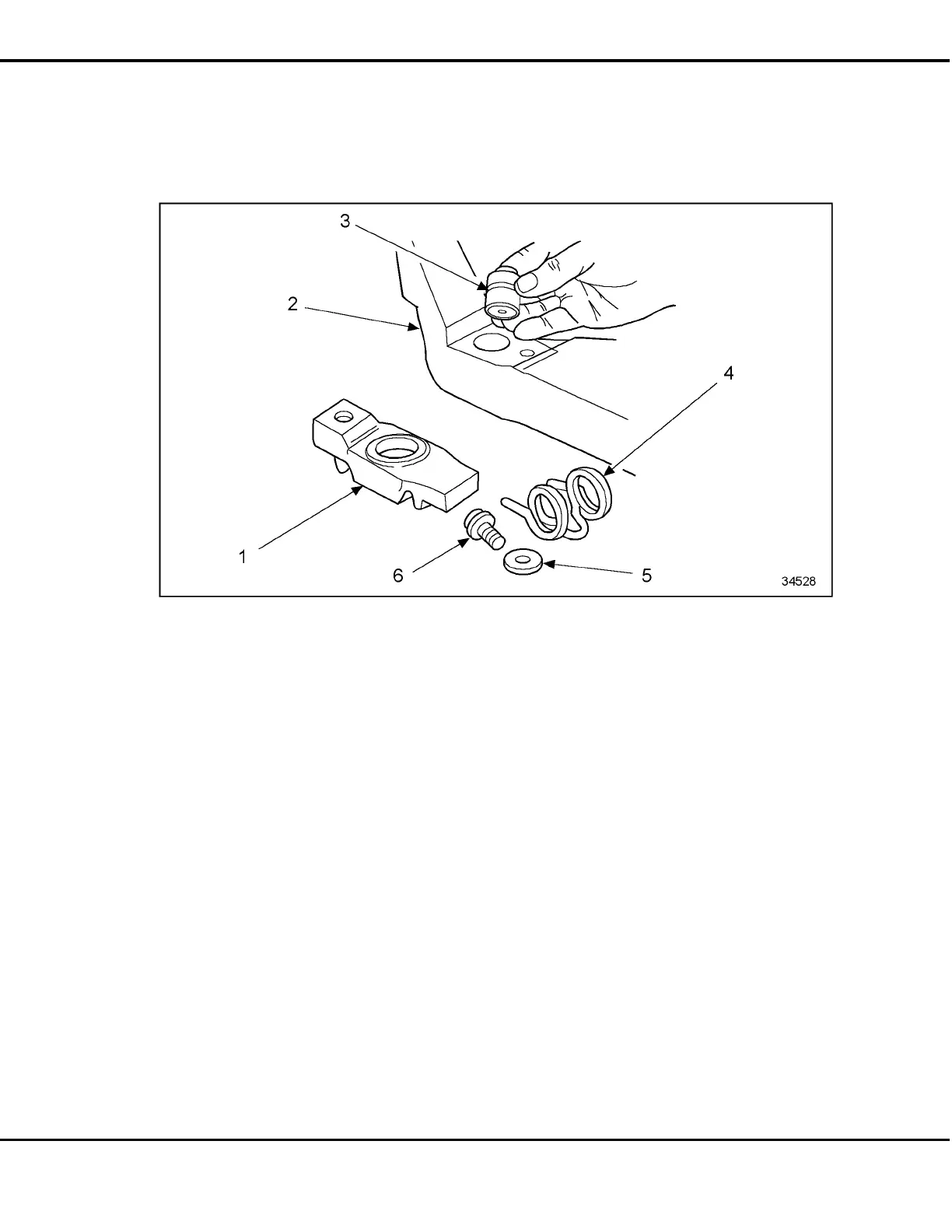

1. Slave Piston Bridge 4. Return Spring
2. Jake Brake Housing 5. Washer
3. Slave Piston 6. Screw
Figure 1-426 Removing Bridge and Slave Piston
All information subject to change without notice.
6SE483 9901 Copyright © 1999 DETROIT DIESEL CORPORATION From Bulletin 16-60-99 1-539
