Install the master piston as follows:
1. Apply clean lube oil to the piston.
2. Insert master piston into bore. See Figure 1-431.
1. Washer and Screw Assembly 3. Master Piston
2. Jake Brake Assembly 4. Master Piston Spring

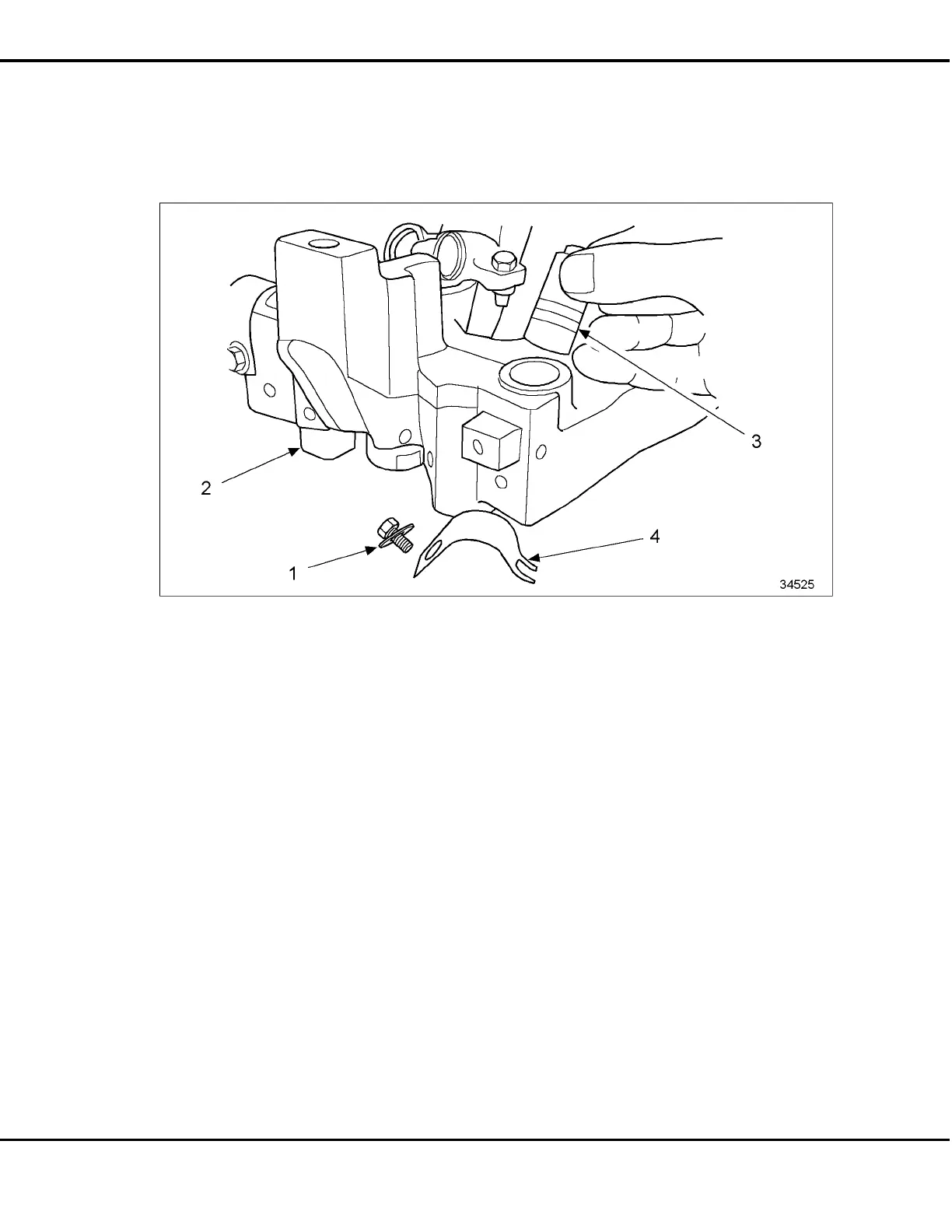

Figure 1-431 Inserting Master Piston into Bore
3. Install spring, washer, and screw.
NOTE:
Make sure spring legs are centered around master piston boss.
4. Torque screw to 10 N·m (7.4 lb·ft).
All information subject to change without notice.
6SE483 9901 Copyright © 1999 DETROIT DIESEL CORPORATION From Bulletin 16-60-99 1-547
