PREVOST LE MIRAGE XLII BUS SHELLS User Manual

Section 18: BODY
PA1553
32

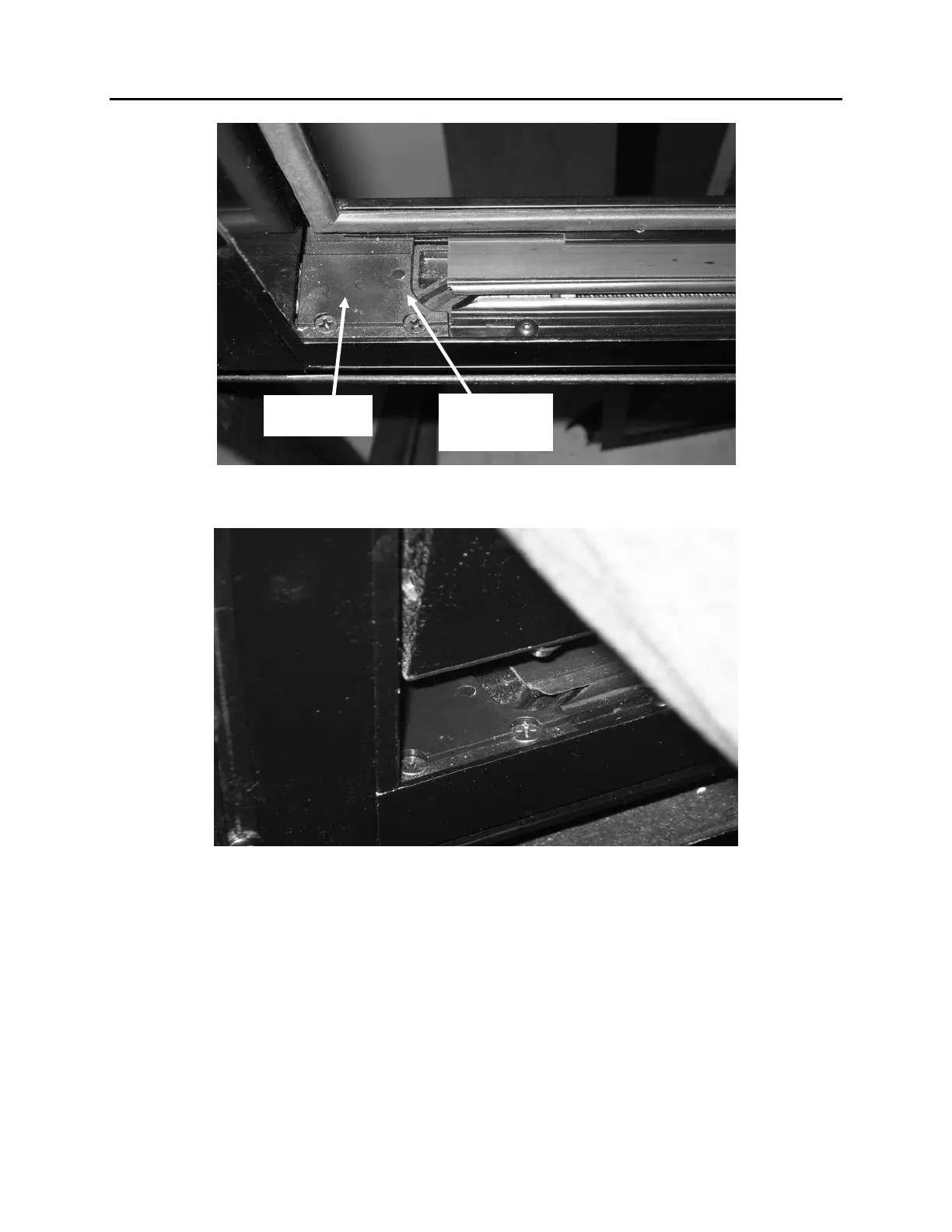

FIGURE 24: PROPER ALIGNMENT
2. Position the left hand lower corner of the sash over the front cam follower block (Figure 25)
FIGURE 25: POSITIONING THE LOWER LEFT CORNER OF THE SASH
3. Engage the sash pin with the leading edge of the slot of the cam follower block. Do the same at the
rear of the sash.
4. Pull down on the release latches and rotate the sash inwards until it is parallel with the window frame.
5. Release the latches to engage the latch pins with the upper cam follower blocks.
6. Confirm that both latches are in the closed (latched) position. The upper edge of the latch opening
must be aligned with upper edge of the sash opening (Figure 26)
Lower Cam
Follower
Sash Stop
