Chapter 1 Description
Library Configuration
Scalar i500 User’s Guide 12
The 5U, 14U, and 23U libraries are the base Scalar i500 systems. By
adding 9U expansion modules, you can upgrade a base system to:
• A 32U library, consisting of one 5U control module and three 9U
expansion modules
• A 41U library, consisting of one 5U control module and four 9U
expansion modules

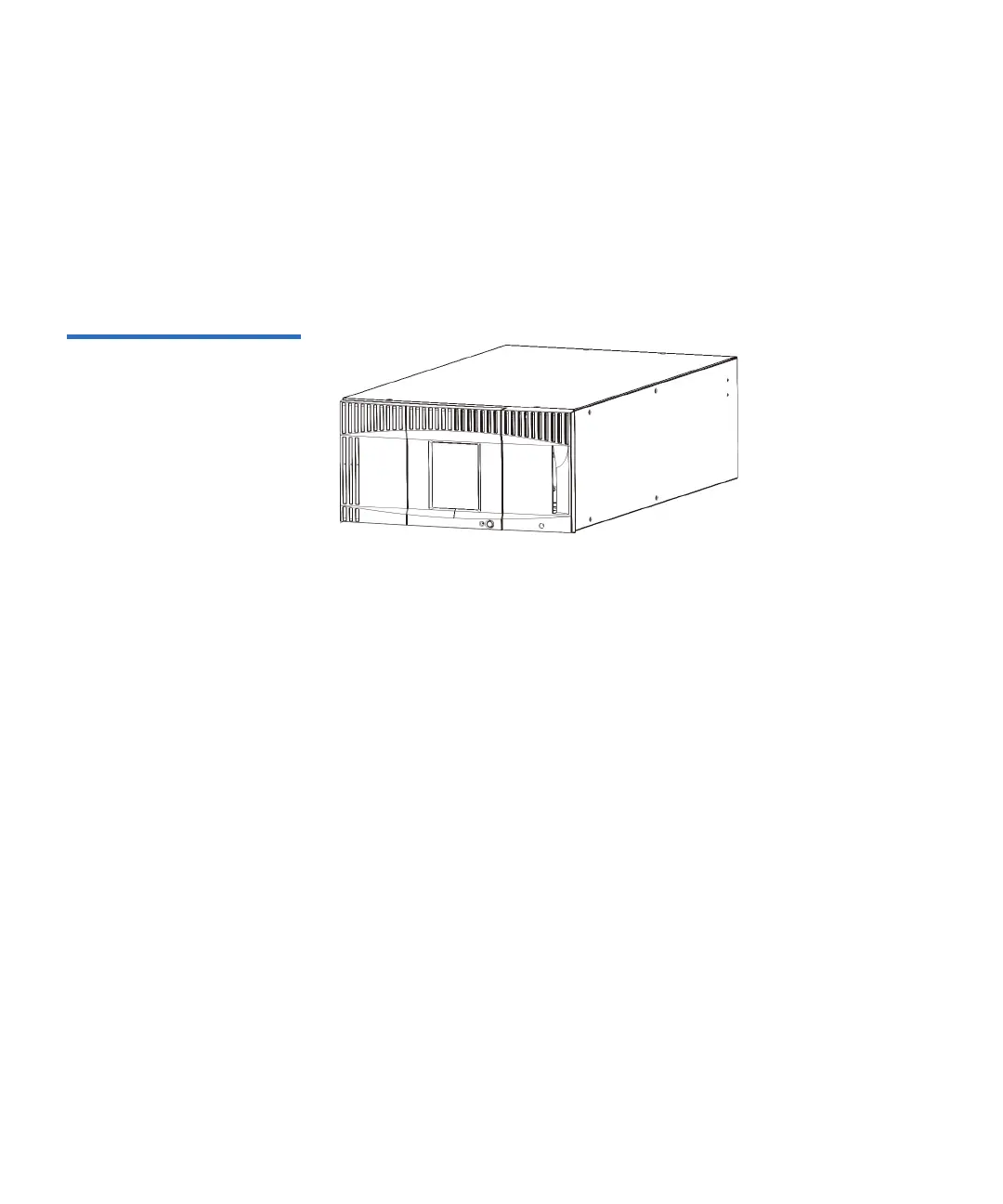

Figure 1 5U Library
Configuration (Standalone
Control Module)
