Quantum Scalar i500

Chapter 1 Description
Library Configuration
Scalar i500 User’s Guide 14

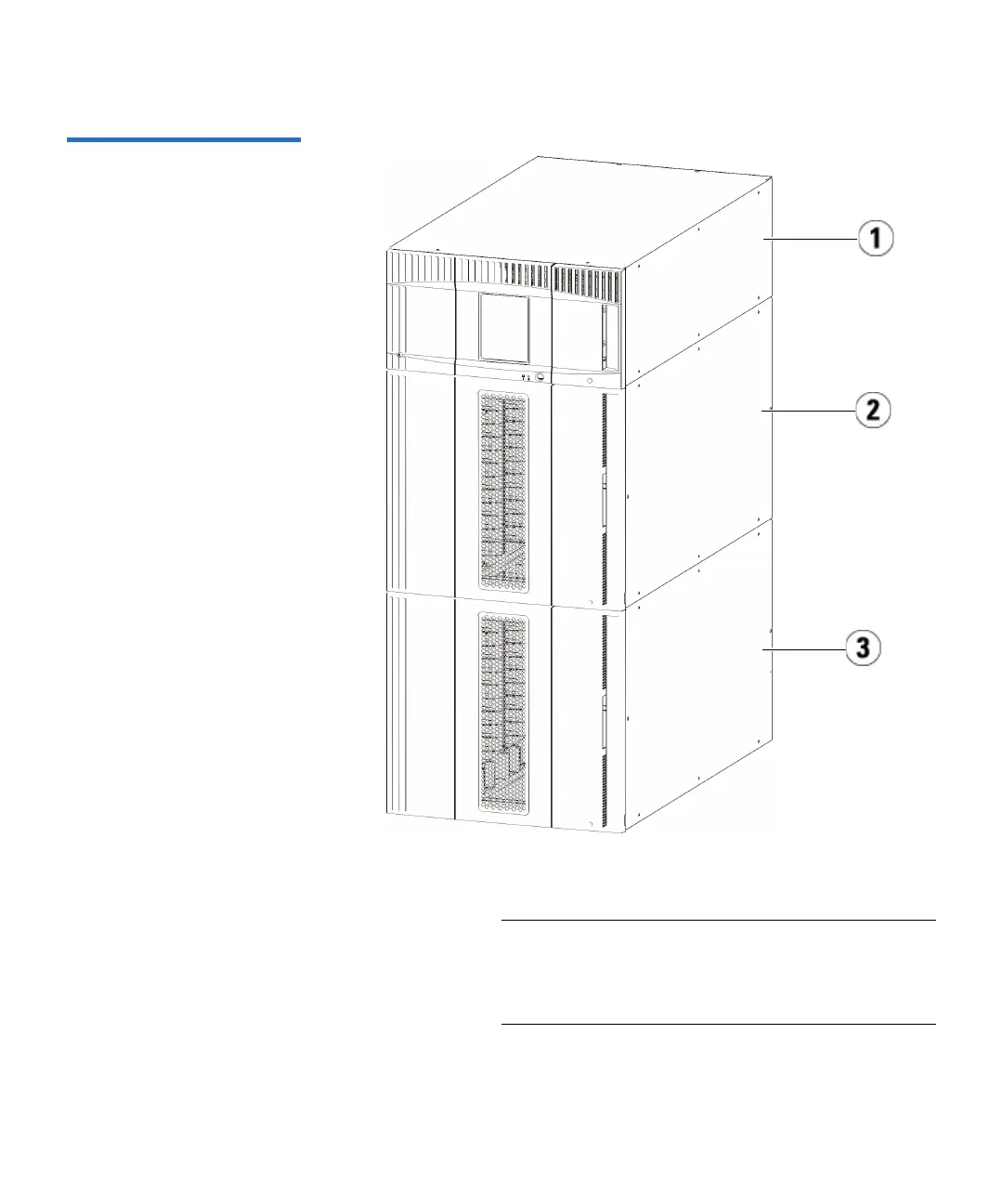

Figure 3 23U Library
Configuration (5U Control
Module Plus Two 9U
Expansion Modules)
1 5U control module
2 9U expansion module
3 9U expansion module
