Chapter 12 Installing, Removing, and Replacing
Cabling the Library
Scalar i500 User’s Guide 319

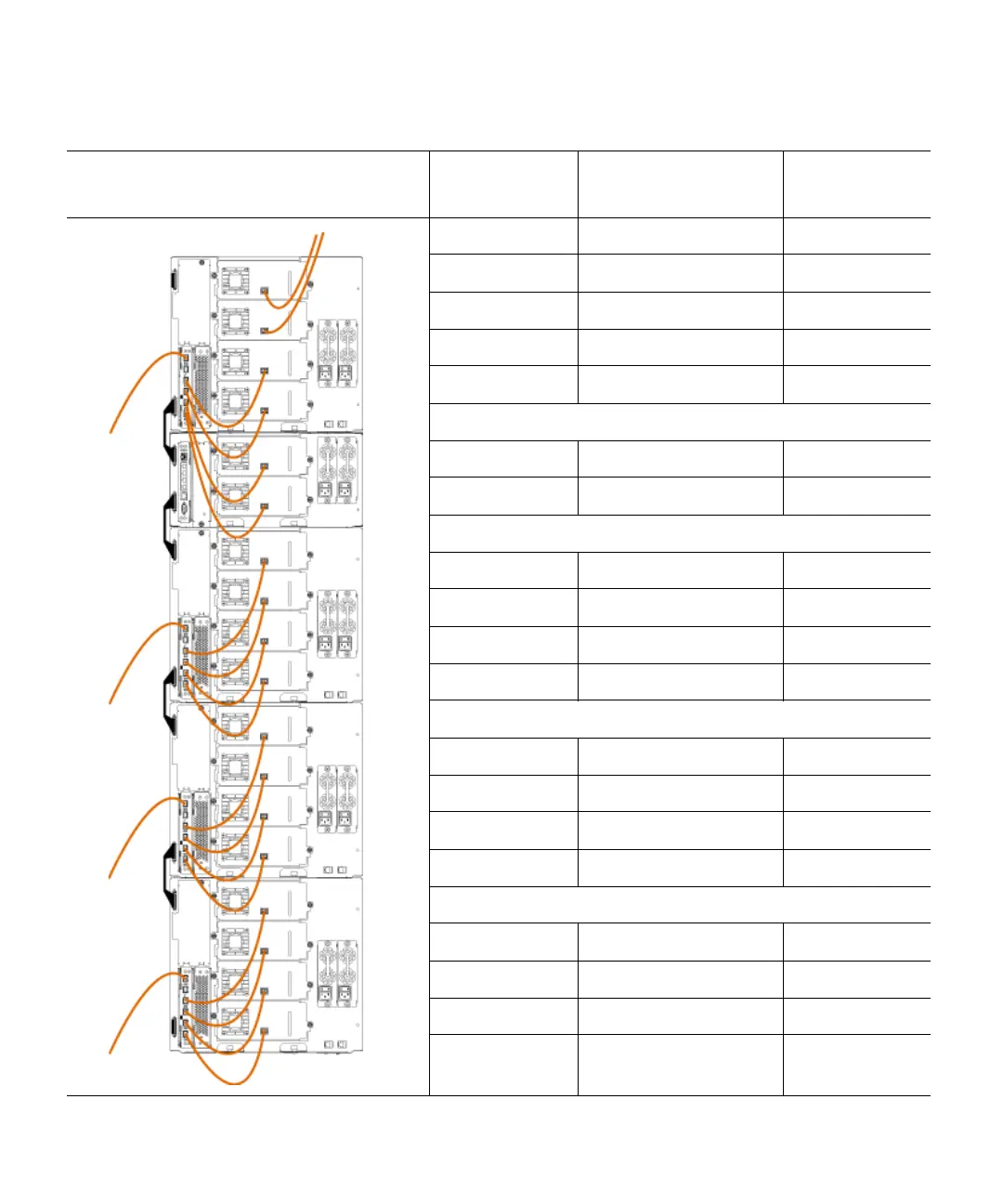

Recommended Cabling With FC I/O
Blades In Maximum Capacity Library Tape Drive FC I/O Blade
FC I/O Blade
Port
[1,1] N/A (direct attached)
[1,2] N/A (direct attached)
[1,3] [1,2] Port 3
[1,4] [1,2] Port 4
[0,1] [1,2] Port 5
[0,2] [1,2] Port 6
[-1,1] [-1,2] Port 3
[-1,2] [-1,2] Port 4
[-1,3] [-1,2] Port 5
[-1,4] [-1,2] Port 6
[-2,-1] [-2,-2] Port 3
[-2,-2] [-2,-2] Port 4
[-2,-3] [-2,-2] Port 5
[-2,-4] [-2,-2] Port 6
[-3,1] [-3,2] Port 3
[-3,2] [-3,2] Port 4
[-3,3] [-3,2] Port 5
[-3,4] [-3,2] Port 6
