Chapter 12 Installing, Removing, and Replacing

Installing a New Multi-Module Library Configuration

Scalar i500 User’s Guide 340

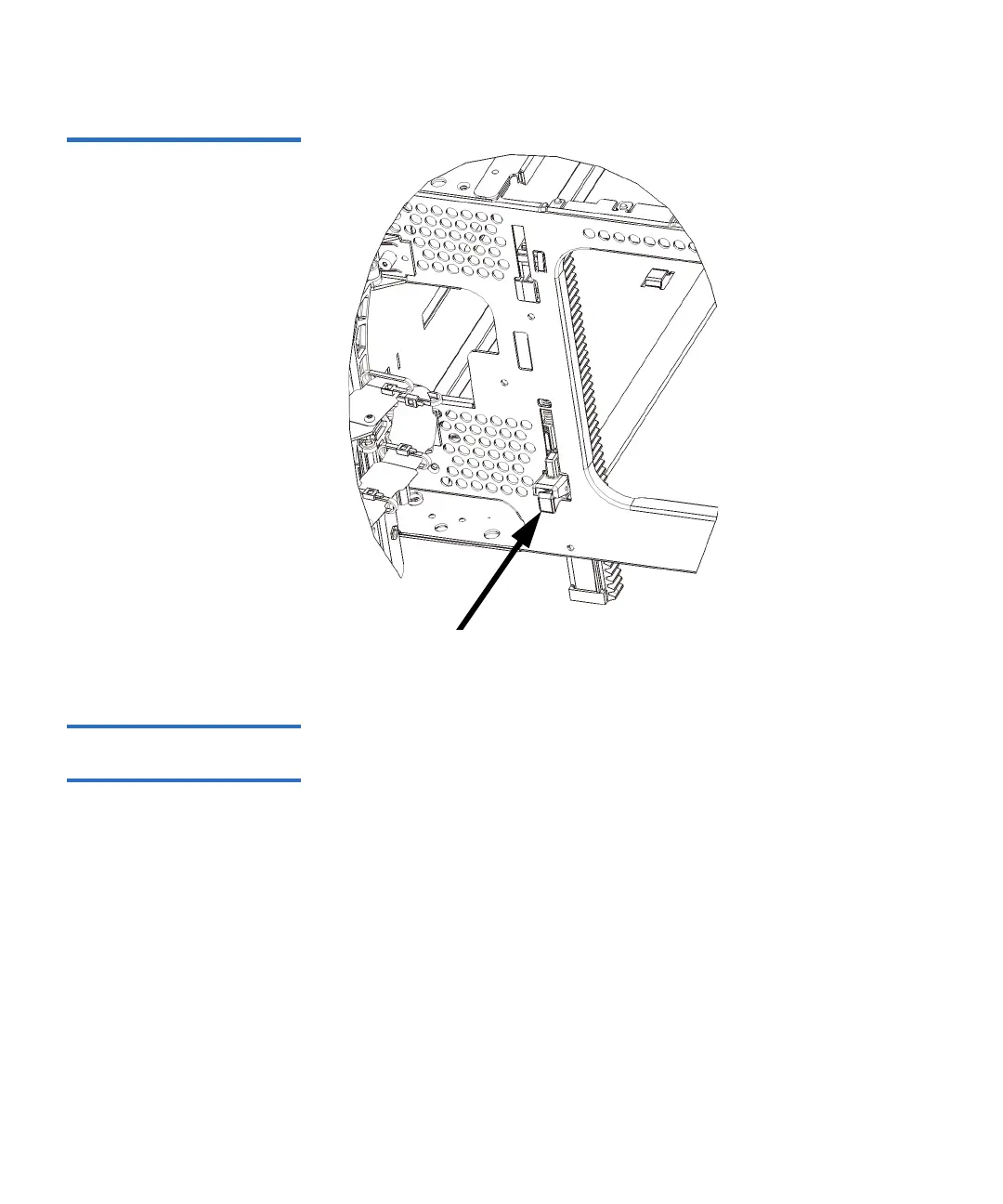

Figure 55 Y-Rail in Unlocked,

Functional Position

7 Repeat these steps for each expansion module you are installing.

Installing the Control

Module 12

Install the 5U control module as follows:

1 Open the control module’s I/E station door and access door.

2 Lift the control module and place it in the desired location.

3 If stacking the control module on top of another module, secure the

two modules together by tightening the two thumbscrews at the base

of the front of the module and the two thumbscrews located at the

base of the back of the module. Then lower the module’s guide pin

(located at the base of the front of the module) by turning it and

pushing it down.

4 Tighten all thumbscrews located at the base of the front and back of

the modules.

5 Use the rack ears to fasten the control module to the rack.
