Chapter 1 Description
Back Panel Components
Scalar i500 User’s Guide 24

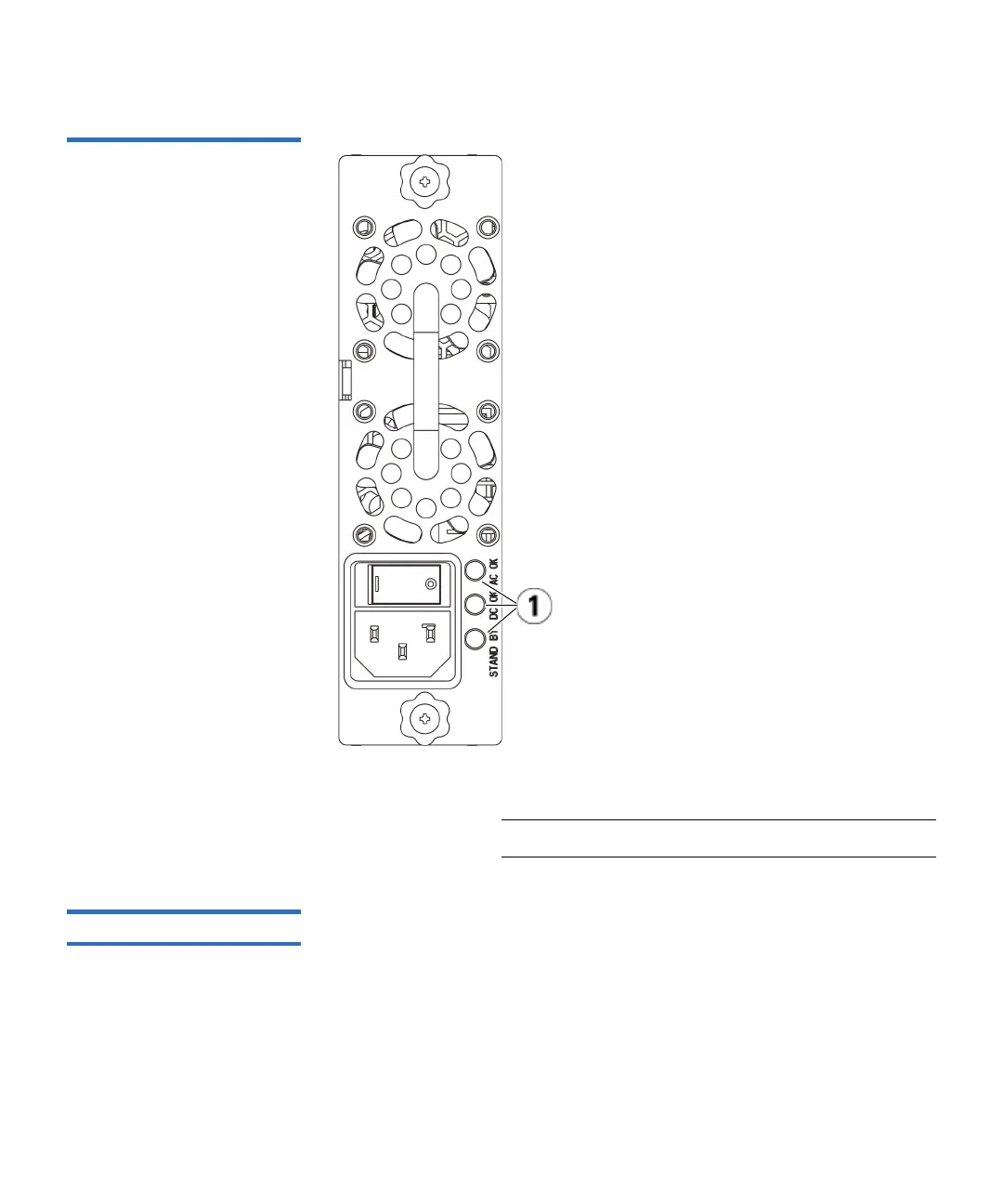

Figure 7 Power Supply LEDs
Library Control Blade 1
The library control blade (LCB) manages the entire library, including the
operator panel and picker assembly, and is responsible for running
system tests to ensure that the library is functioning properly. The LCB
also provides internal communication to Fibre Channel (FC) I/O blade
slots. The LCB has four Ethernet ports, supporting a total of four FC I/O
blades in the library.
1LEDs
