Chapter 12 Installing, Removing, and Replacing
Installing the Library in a Rack
Scalar i500 User’s Guide 425

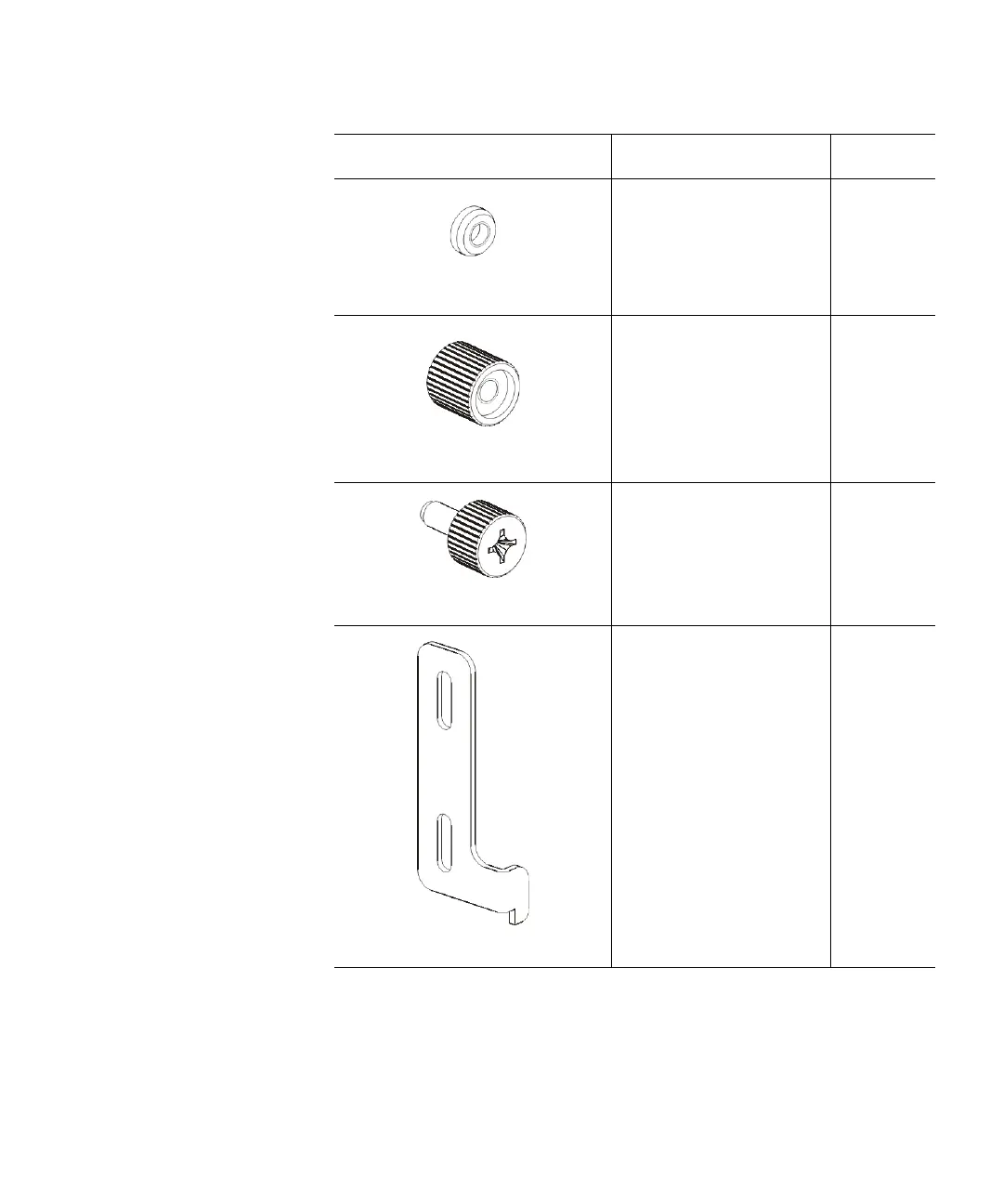

Large ferrule — Used in
racks with square holes
10 (8
required;
2 spares)
Thumbnut — Secures
the rack shelves to the
rack
8
M5 thumbscrew —
Secures the rack ears
4
Rack ear, left — Holds
the modules in the rack
1
Component Description Quantity
