Chapter 12 Installing, Removing, and Replacing
Installing the Library in a Rack
Scalar i500 User’s Guide 435

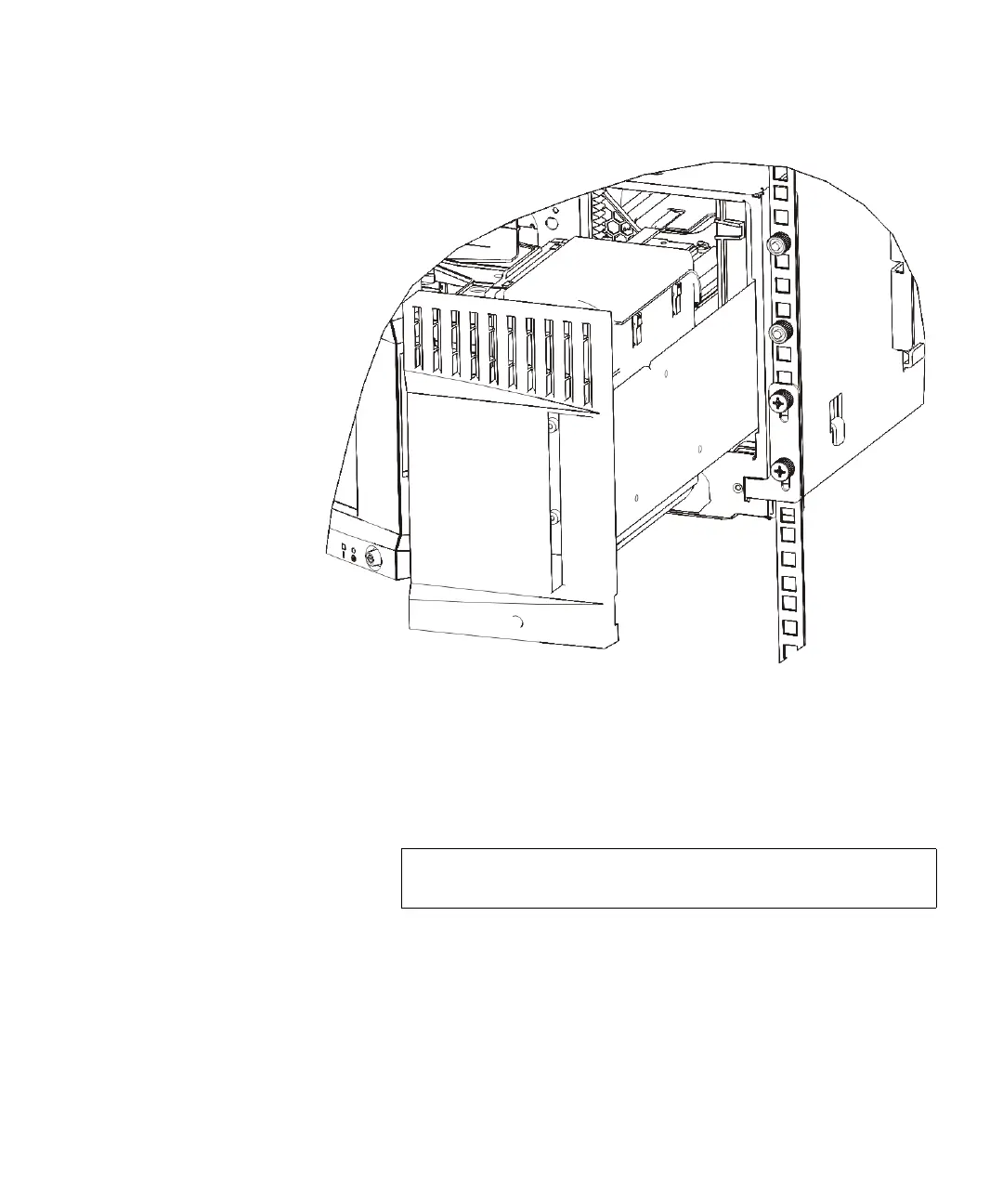

4 Install the left rack ear.
a With the I/E station door open, open the left door (the access
door) of the module and locate the slot in the lower left corner of
the module. (The flexible door hinge allows the door to be pulled
away from the module, providing access to the slot.)
b Install the left rack ear in the same manner as the right rack ear.
c Using two M5 thumbscrews, fasten the rack ear to the rack. The
thumbscrews should thread through the holes in the rack shelves
and fasten completely and evenly.
Note: You may need to pull the door toward you in order to
access the slot.
