Chapter 12 Installing, Removing, and Replacing
Installing the Library in a Rack
Scalar i500 User’s Guide 441
8 Install the right rack ear. At the front of the library:
a Open the I/E station door. At the lower right corner of the
module is a vertical slot. Insert the hinge of the right rack ear into
the slot and then position the holes of the rack ear flush with the
rack rail.
b Using two M5 thumbscrews, fasten the rack ear to the rack. The
thumbscrews should thread through the nut clips (or cage nuts)
and fasten completely and evenly.

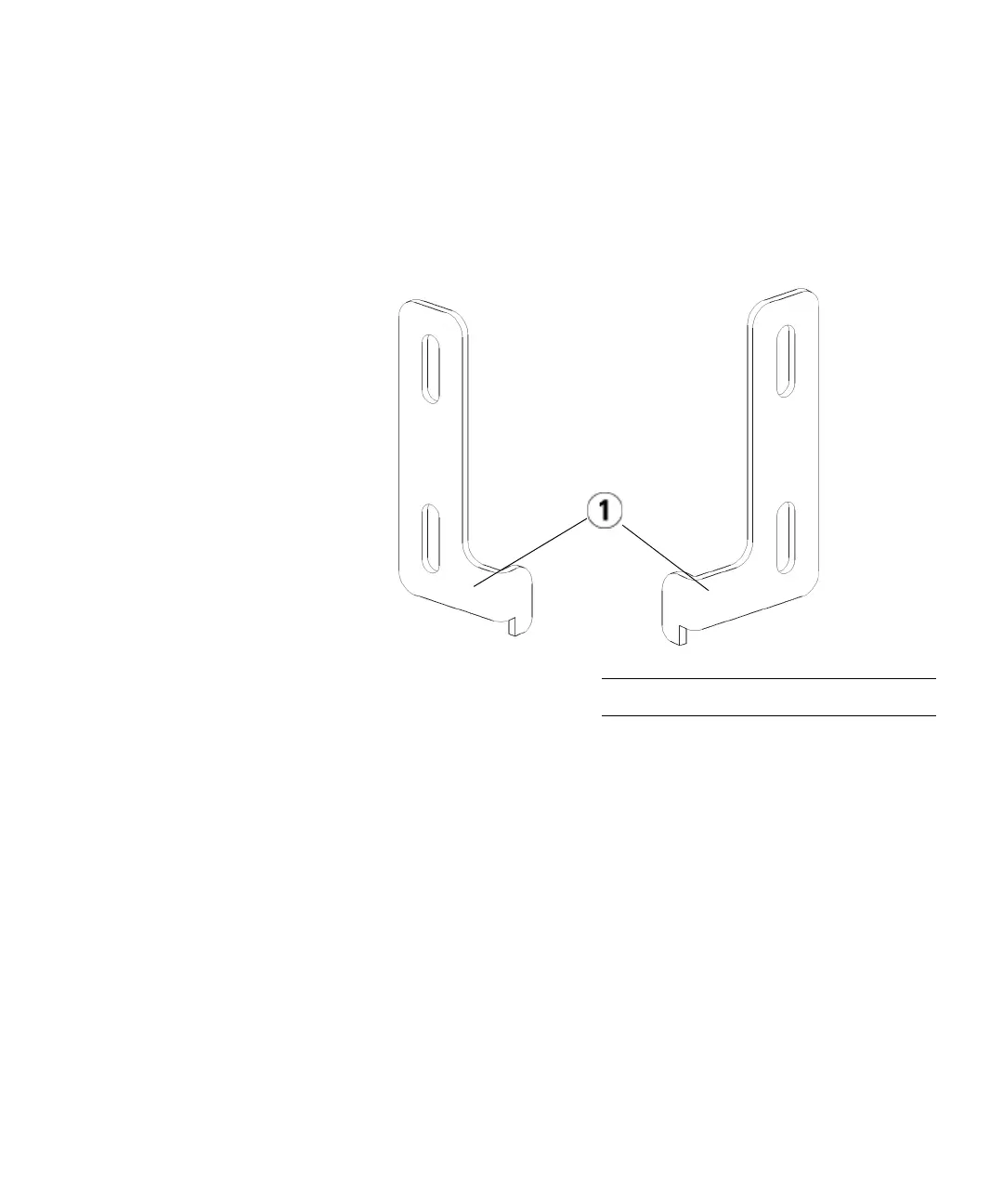

1 Hinge of rack ears
