Spectrum Measurements
R&S
®
ESR
326User Manual 1175.7068.02 ─ 12
Adjust Settings ← Scaling ← CCDF
Adjusts the level settings according to the measured difference between peak and min-
imum power for APD measurement or peak and mean power for CCDF measurement
in order to obtain maximum power resolution. Adjusts the reference level to the current
input signal. For details see also the Adjust Ref Lvl softkey.
Remote command:
CALCulate<n>:STATistics:SCALe:AUTO ONCE on page 797
Gated Trigger (On/Off) ← CCDF
Activates and deactivates the gating for statistics functions for the ACP and the CCDF
channel. The trigger source is changed to "EXTERN" if this function is switched on.
The gate ranges are defined using the "Gate Ranges" on page 320 softkey.
Remote command:
[SENSe:]SWEep:EGATe on page 841
[SENSe:]SWEep:EGATe:SOURce on page 842

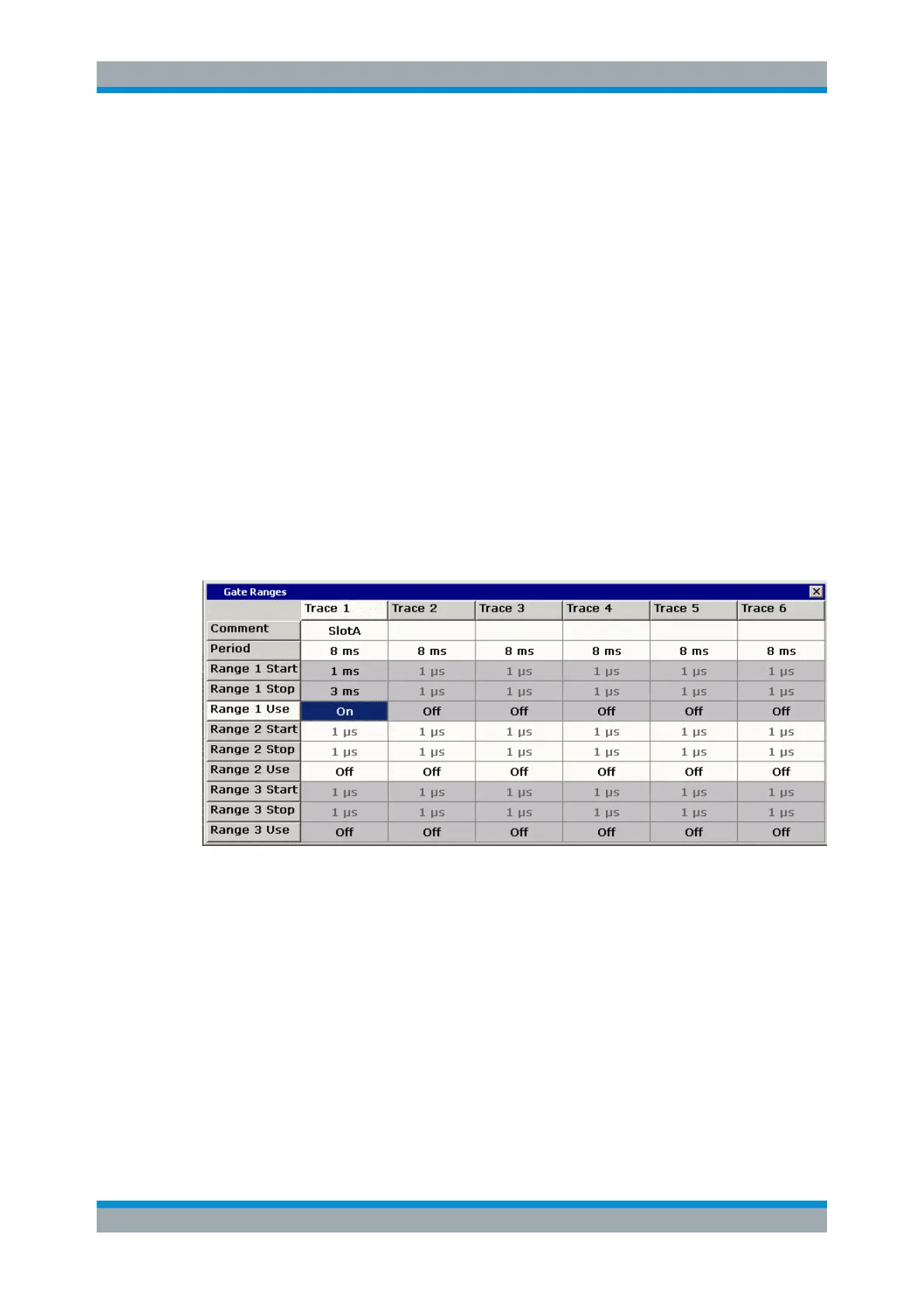

Gate Ranges ← CCDF
Opens a dialog to configure up to 3 gate ranges for each trace.
For details on configuration, see "Defining Gated Triggering for APD and CCDF"
on page 327.
Remote command:
SWE:EGAT ON (see [SENSe:]SWEep:EGATe on page 841)
Switches on the external gate mode.
SWE:EGAT:TRAC1:COMM "SlotA" (see [SENSe:]SWEep:EGATe:TRACe<k>:
COMMent on page 794)
Adds a comment to trace 1.
SWE:EGAT:TRAC1:STAT1 ON (see [SENSe:]SWEep:EGATe:TRACe<k>[:
STATe<range>] on page 795)
Activates tracing for range 1 of trace 1.
SWE:EGAT:TRAC1:STAR1 3ms (see [SENSe:]SWEep:EGATe:TRACe<k>:
STARt<range> on page 795)
Sets the starting point for range 1 on trace 1 at 3 ms.
SWE:EGAT:TRAC1:STop1 5ms (see [SENSe:]SWEep:EGATe:TRACe<k>:
STOP<range> on page 796)
