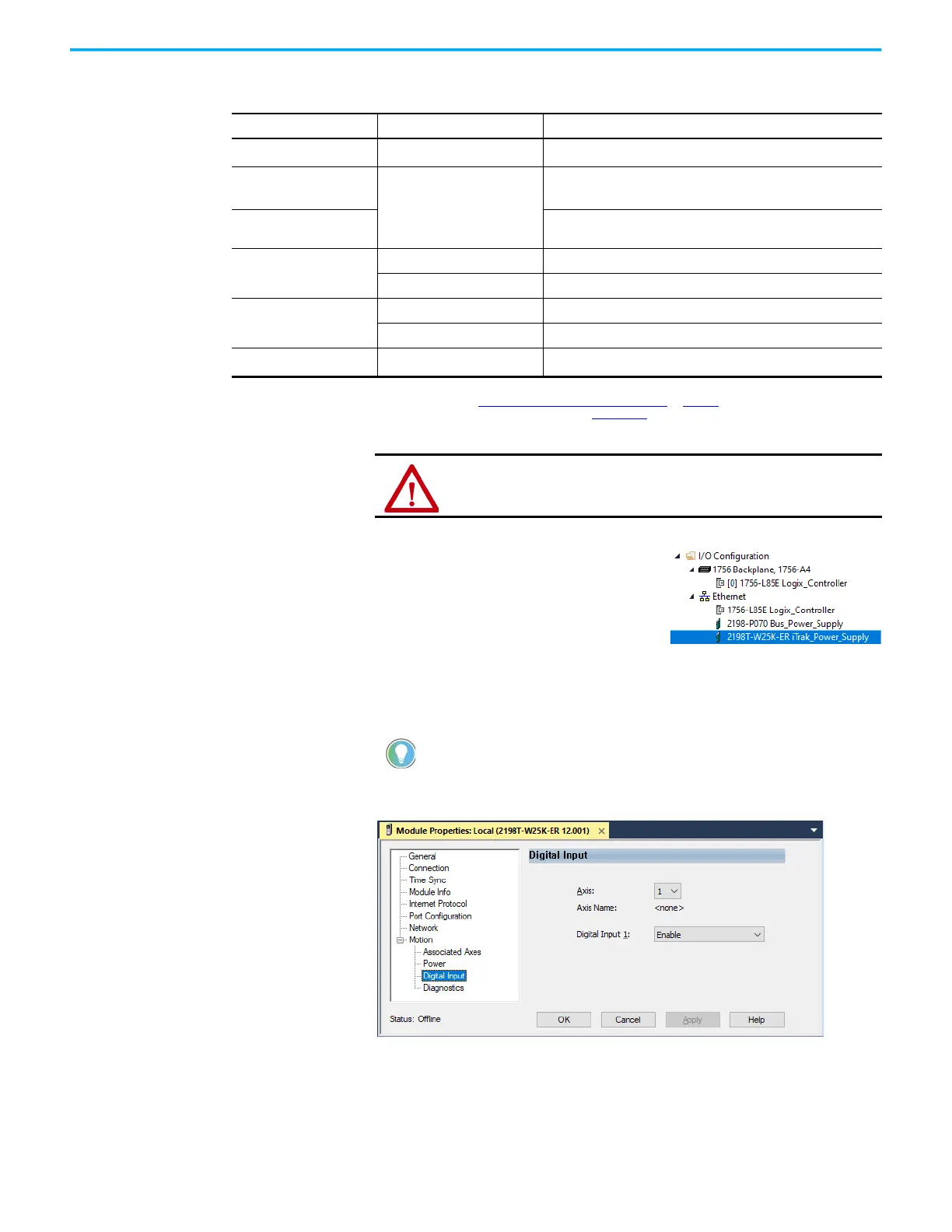

202 Rockwell Automation Publication 2198-UM002L-EN-P - October 2021
Chapter 6 Configure and Start the Kinetix 5700 Drive System
6. From the pull-down menus, choose the power options appropriate for
your hardware configuration.
7. Click OK to close the New Module dialog box.
8. Your iTRAK power supply appears in the
Controller Organizer under the Ethernet
network in the I/O Configuration folder.
9. Click Close to close the Select Module
Type dialog box.
10. Right-click the iTRAK power supply you
just created in the Controller Organizer and choose Properties.
The Module Properties dialog box appears.
11. Click the Digital Input category.
12. From the Digital Input pull-down menu choose Enable (default) to
monitor an external enable input signal or choose Unassigned
depending on your application.
In this example, Enable is chosen.
Attribute Menu Description
Bus Configuration
Shared DC/DC
(1)
Applies to iTRAK power supply modules.
Primary Bus-sharing Group
(2)
•Group1
•Group2
•Group3…
Selects the Bus Sharing Group shared with the AC/DC converter
suppling DC voltage to the iTRAK power supply.
Secondary Bus-sharing
Group
Selects the Bus Sharing Group shared with the iTRAK Small Frame
modules connected to the iTRAK power supply output.
Bus Regulator Action
Disabled Disables the internal shunt resistor and external shunt option.
Shunt Regulator Enables the internal and external shunt options.
Shunt Regulator Resistor
Type
Internal Enables the internal shunt (external shunt option is disabled).
External Enables the external shunt (internal shunt option is disabled).
External Shunt
None
(3)
Selects external shunt option.
(1) Shared DC/DC bus configuration is the default selection for iTRAK power supplies.
(2) For more information on bus-sharing groups, refer to Understand Bus-sharing Group Configuration on page 251. For more information on primary and
secondary bus-sharing groups, see iTRAK 5730 System User Manual, publication 2198T-UM003.
(3) The iTRAK power supply does not support external shunts.
ATTENTION: To avoid damage to equipment all modules physically
connected to the same shared-bus connection system must be part
of the same Bus Sharing Group in the Logix Designer application.
To configure the remaining iTRAK power supply properties, you
must close the New Module dialog box and reopen it as the Module
Properties dialog box.
