Rockwell Automation Publication 2198-UM002L-EN-P - October 2021 227
Chapter 6 Configure and Start the Kinetix 5700 Drive System
9. Set the FluxUp, SkipSpeed, VelocityDroop, MaximumFrequency,
MaximumVoltage, and CurrentVectorLimit attributes appropriate for
your application.
See the corresponding section in Appendix F
, beginning on page 397, for
information and configuration examples regarding all of these topics.
10. Click Apply.
11. Select the Motor>Model category.
Motor model attributes are automatically estimated from the
Nameplate/Datasheet parameters. For improved performance, motor
tests can be run.

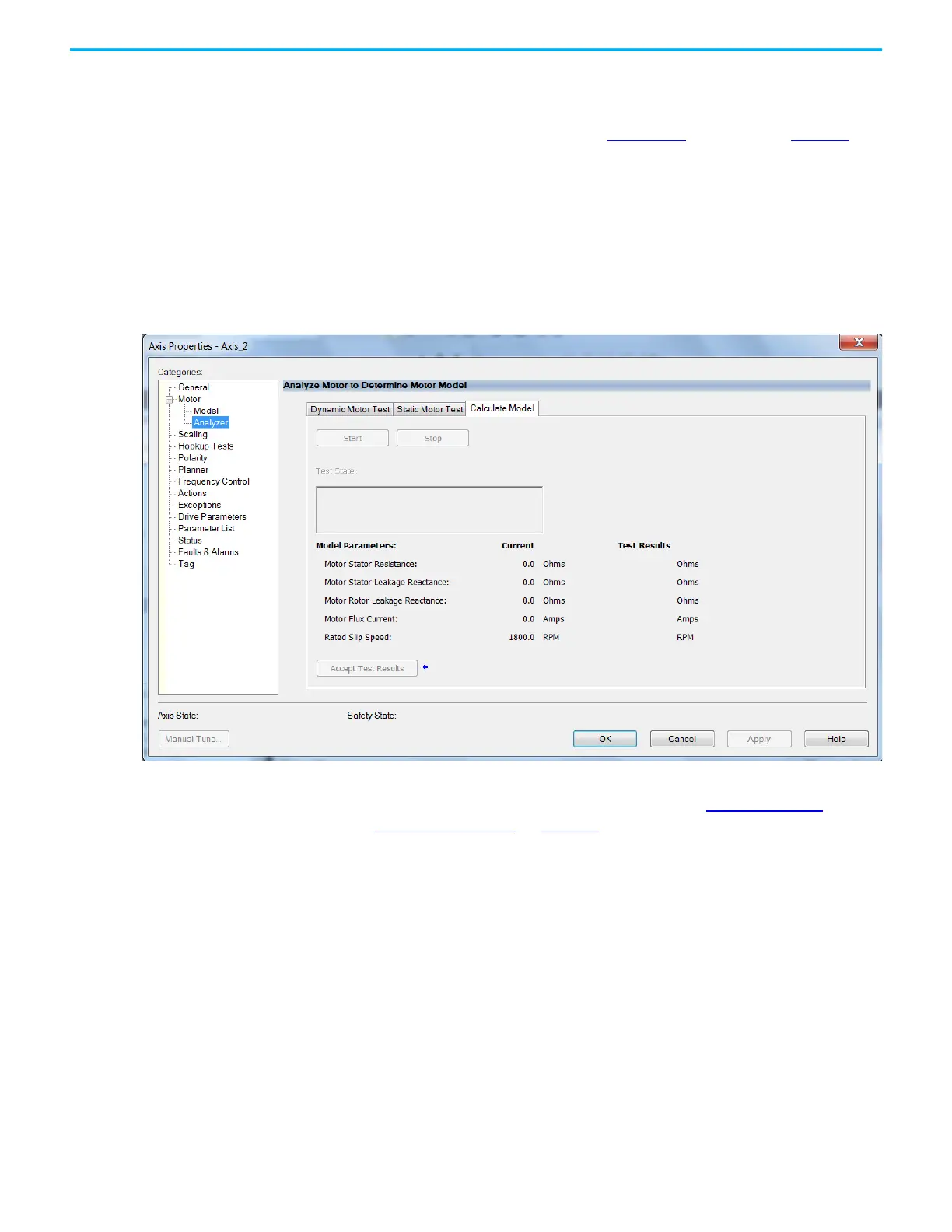

12. Select the Motor>Analyzer category.
13. The Analyze Motor to Determine Motor Model dialog box opens.
14. Click one of the motor test tabs.
In this example, Calculate Model is chosen. See Motor Tests and
Autotune Procedure on page 414 for information about each of the tests.
15. Click Start.
16. Click Accept Test Results.
17. Click OK.
