Rockwell Automation Publication 2198-UM002L-EN-P - October 2021 355
Appendix A Interconnect Diagrams

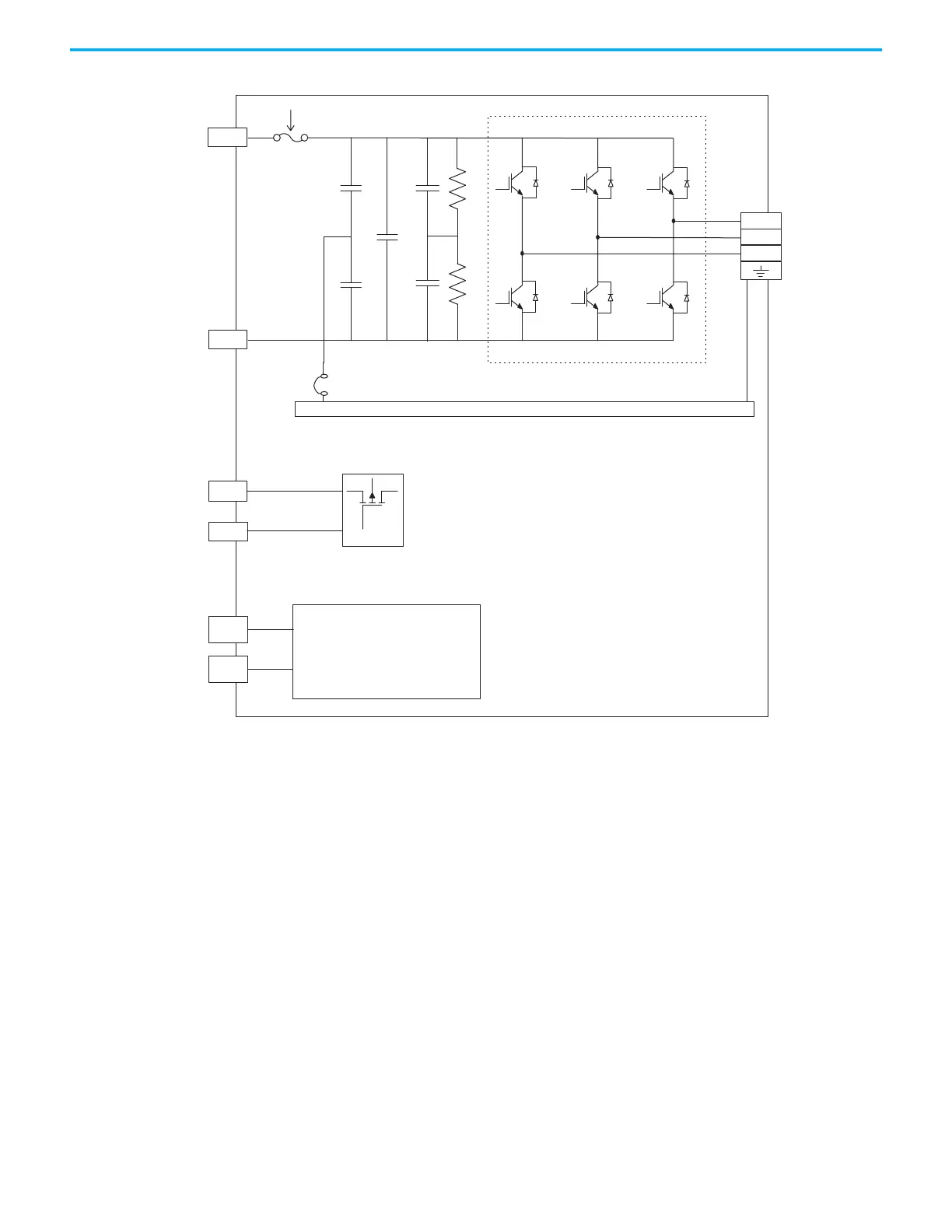

Figure 195 - Single-axis Inverter Block Diagram
(1) Ground jumper installed on 2198-Sxxx-ERS3 (series A) drives.
Ground jumper removed on 2198-Sxxx-ERS4 and 2198-Sxxx-ERS3 (series B) drives.
24V+
24V–
DC+
DC–
BR+
BR–
U
V
W
24V Control Power
(CP) Connector
Ground Jumper
(1)
Control
Chassis
Motor Brake
(BC) Connector
DC Bus Power
(DC) Connector
Motor Power
(MP) Connector
